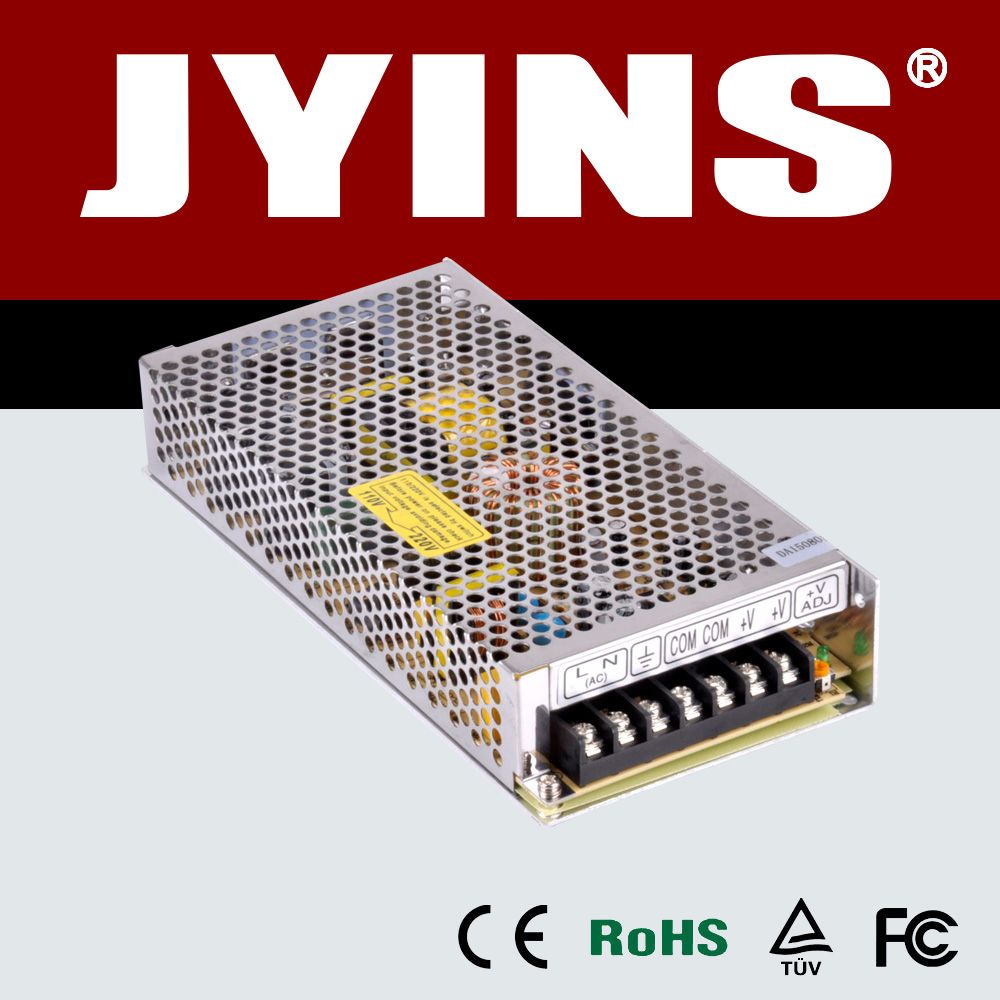

Single Output 145W Switching Power Supply
| Price: |
US $ 12-14/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
S-145 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
18 Months |
| OEM, ODM: |
Accepted |
| Shell Material: |
Aluminium Alloy |
| Input Volt: |
5V/12V/24V/48V |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
101 - 200W |
| Input Voltage: |
Full Range |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Level 1 Power Distribution Equipment |
| Certification: |
RoHS |
| Brand: |
Jyins |
Product Description
Switching Power Supply single output 145W 18 months warranty(S-145)
1. Our company is a professional manufacture and OEM.
Our products obtain CE and ISO9001 Certificate and according to IEC 521 international standard to.
2. Low price and high reliability
105 C output capacitor
AC input power suitable for the world
Hight efficiency and low operation temperature
Soft-start current can reduce the AC input impact effecticly
With Short-circuit and owwerload protection
Compact size, light weight
100% full-load burning test
Installed with EMI filter, minimum wave
.
Low price and high reliability105 output capacitorAC input power suitable for the worldHight efficiency and low operation temperatureSoft-start current can reduce the AC input impact effecticlyWith Short-circuit and owwerload protectionCompact size, light weight100% full-load burning testInstalled with EMI filter, minimum wave.
| Model / Specification | S-145-5 | S-145-7.5 | S-145-12 | S-145-24 |
| DC output voltage | 5V | 7.5V | 12V | 24V |
| Output voltage error (Note2) | ± 2% | ± 1% | ± 1% | ± 1% |
| Rated output current | 25A | 18A | 12A | 6A |
| Output current rage | 0-25A(Biggest 30A) | 0-18A(Biggest 21A)) | 0-12A(Biggest 14A) | 0-6A(Biggest 7A)) |
| Wave and noise(Note3) | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Inlet stability(Note4) | ± 0.5% | ± 0.5% | ± 0.3% | ± 0.2% |
| Load stability(Note5) | ± 0.5% | ± 0.5% | ± 0.3% | ± 0.2% |
| DC output power | 125W | 135W | 144W | 144W |
| Efficiency | 78% | 80.5% | 80.5% | 83.5% |
| Adjustable range for DC voltage | 4.75-5.5V | 6-8V | 10.8-13.2V | 21-28V |
| AC input voltage range | 85~132VAC/180~264VACselected by switch 47~63Hz; 255~370VDC |
| Input current | 3.2A/115V 1.6A/230V |
| AC impulse current | Cold-start current 35A/115V 60A/230V |
| Leakage current | < 1mA/240VAC |
| Overload protection | 125%~165%Type: pulsing hiccup shutdown Reset: auto recovery |
| High-temperature protection | ^ ^ |
| Temperature coefficient | ± 0.03%º C(0~50º C) |
| Setup rise hold up time | 200ms, 100ms, 30ms |
| Vibration | 10~500Hz, 2G 10min. /1cycle, Period for 60min, Each axes |
| Withstand voltage | Input and output interval: 1.5KVAC, Input and enclosure: 1.5KVAC, Output and enclosure: 0.5KVAC |
| Isolation resistance | Input and output interval, Input and enclosure, Output and enclosure: 500VAC/100M Ohms |
| Working temperature and humidity | -10º C~+60º C, 20%~90%RH |
| Store temperature and humidity | -20º C~+85º C, 10%~95RH |
| Overall dimension | 199*98*38mm |
| Weight | 0.7Kgs |
| Safety standards | Meet UL 1012 requirement(Not apply for the mark) |
| EMC standards | Meet FCC Part 15J Conduction Class B |
Note: 1. The testing condition for the parameter above is: 230VAC input, rated load, 25º C 70%Rh, Humidity
2. Error, include the setting error, line stability and load stability. (Note: 5)
3. Wave test: adopting" A12" double wire for 20MHz, and 0.1uF& uF capacitor short-circuit for interrupting
4. Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage.
5. Load stability test: The load is from 0% to 100%, others 60%. |
Yueqing Jyins Electric Technology Co., Ltd. Founded in 1990, is located in the largest manufacturing base of low-voltage electric equipment of China--- Liushi, which is called "the Electric Device Metropolis of China". We are one of leading enterprises specialized in designing, manufacturing, developing and exporting all kinds of high and low voltage electric appliances, such as temperature controller (indicator), thermocouple, shunt, thermocouple wire, thermal resistor, current/voltage meter(panel meter), current divider, gas meters, water meter, KWH meter, automatic nozzle, contactor, relay, circuit breaker, transformer, thermal relays, pushbutton, lightning arrester, dropout fuse, switch, pneumatic, cylinder, cable accessories, power instrument, lighting, doorbell etc.
We have employed 500 workers and our factory covers 4, 0000 square meters area. with total assets reaching 5 million US dollars, we own modern production lines and high quality controlling equipments with scientific administration, professional engineers, highly trained technicians and skilled workers. Consequently, our products are of both high quality and high ratio of performance and are widely exported to worldwide markets with good reputation and credit. Now we are selling products to North and South America, Middle East, Southeast Asia, Western Europe, Africa, Hong Kong, Taiwan area and etc...
"Quality first and user uppermost" is one of our principles. We always strive for best in quality and after-sales services to satisfy customers' demands. We sincerely welcome customers from worldwide to share our good quality products and services. with ceaseless efforts and developments in design and technology, we will surely do better and better. High praise among the customers.
We sincerely welcome our friends at home and aboard to guide us and then develop together.
