| Prod Model: |
Cosmos Star Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Year: |
One Year |
| DC Voltage: |
12V/24V/48V |
| Output Frequency: |
50 or 60 |
Product Description

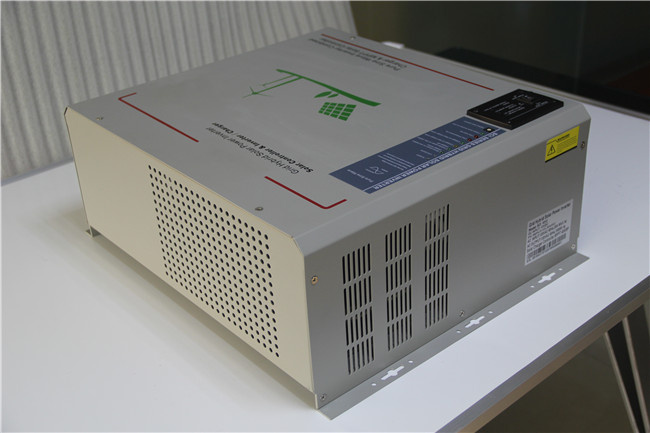

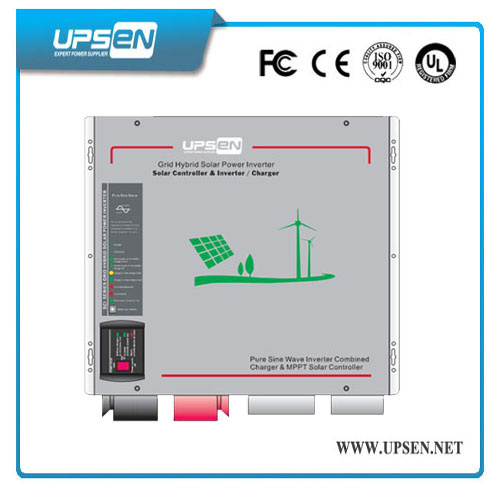

Single phase Hybrid solar Inverter with RS232 Communication Port
Hybrid Solar Inverter Controller All in one Cosmos Star Series 1000W-6000W (1ph in/1ph out)
Key Features:
1:LCD&LED Screen for option

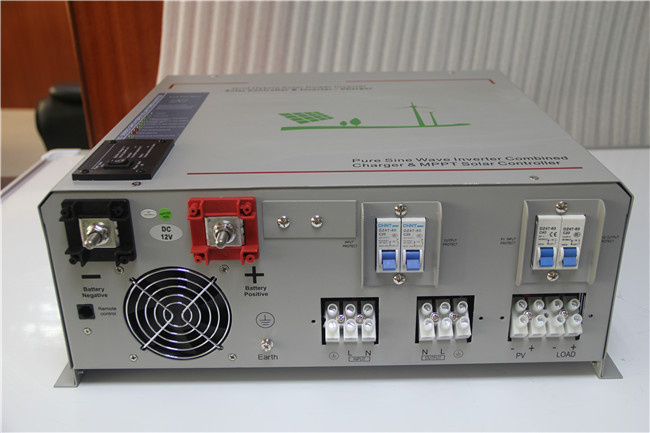

2:Manual control input&output breakers
3:Remote control & RS232 communication port
4:Easy to install & easy to operate & easy to solve
5:High input voltage protection with automatic shutdown.
6:Output voltage 110VAC/120VAC/220VAC/230VAC/240VAC
7:AC Grid priority & battery priority working mode as selectable
8:Ground terminal: Connect to the ground, counseling electrical power.
9:Four stages smart charging, charging current adjusted automatically
10:DIP switch optional: Selectable charging voltage for various battery type
11:AC grid mode: AC Bypass supplies load when AC is normal, battery invert AC supplies load when AC is off
12:Professional off grid solar system solution, which is a combination of big power inverter and solar controller
13:Inbuilt MPPT Solar Charger Controller 20/30/40/50/60A, AC Charger 35 - 70A, with DC Voltage 12/24/48VDC
14:Pure sine wave output which matches wave form of AC grid no matter is on AC grid mode or inverter mode, workable on inductive load
Technical Specification
Mode NO. | CS600 | CS1000 | CS2000 | CS3000 | CS4000 | CS5000 | CS6000 |
Rated Power | 600W | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W |
AC INPUT |
Phase&Waveform | Single pahse&Pure Sine Wave |
Voltage | 110VAC/120VAC/220VAC/230VAC/240VAC |
Fequency | 50HZ/60HZ(Auto adjust) |
Voltage range | 95-127VAC/194-253VAC |
Frequency range | 48-54HZ/58-64HZ |
AC Output |
Waveform | Pure Sine wave and single phase |
Voltage | 110VAC/120VAC/220VAC/230VAC/240VAC |
Frequency | 50HZ/60HZ |
Peak Power | 1800W | 3000W | 6000W | 9000W | 12000W | 15000W | 18000W |
Battery | |
Battery DC | 12/24VDC | 12/24VDC | 12/24/48VDC | 24/48VDC |
MAX charging cunrrent | &n, bsp; 20A-75A |
Battery type | &n, bsp; GEL,AGM,Sealed lead acid |
MPPT Controller | |
PV Input | 15-30VDC For 12VDC/30-55VDC For 24VDC |
MAX charging cunrrent | 20/30/40/50/60AMP |
MAX Ouput current | 15A |
for DC laod |
Transfer efficiency | |
MPPT efficiency | more than 95% |
Line Mode | more than 95% |
Battery Mode | more than 85% |
Power Saver | Available when load is less than 50A |
Transfer time | 10ms |
Indicator | |
7-LED Indicators | Left to right:1.Line Mode(Green),2.Inverter Mode(Green),Charging Mode(Yellow),4.Full Charged(Green), |
5.Over Temp(Red),6.Over Load(Red),7.Saving Mode(Green) |
2-LED Indicators on MPPT | Power/CHG Mode |
Dimension | 486*400*181mm | 486*432*181mm |
Weight | 22KG | 26KG | 28KG | 33KG | 45KG | 52KG | 56KG |
