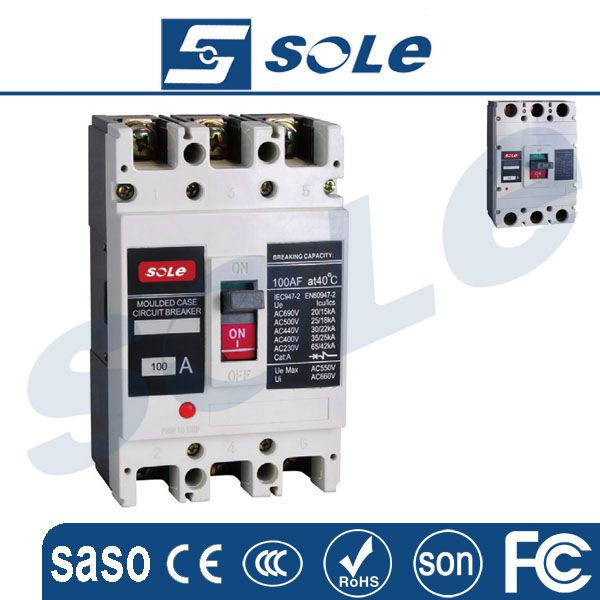

Slmm1 Moulded Case Circuit Breaker

Name: Slmm1 Moulded Case Circuit Breaker
Brand: all-electronics-online.com
SKU: 734641475
Availability: InStock
Rating: 5 (146 reviews)

Price:	US $ 10-20/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SLMM1 Moulded Case Circuit Breaker
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
MCCB:	Moulded Case Circuit Breaker
Structure:	MCCB
Breaking Capacity:	Low Voltage Circuit Breakers
Poles Number:	3
Certification:	CCC
Operation:	Electric Type
Installation:	Fixed
Arc-extinguishing Medium:	Air
Speed:	Normal Type Circuit Breaker

Product Description

Application

SLMM1 Series of moulded case circuit breaker is one of our new type products developed and manufactured by adopting international advanced technology. It is supplied with rated insulating voltage 660V and used for circuit of A. C. 50Hz, rated
Operating voltage AC 380V. (Or below), rated operating current up to 800A for infrequent changing over and starting of the motors. Equipped with the protection devices for over-current, short circuit and under voltage, the products are capable
Of preventing damage of circuits and supply units.

Classication

Accord to product poles. Two kings of three-pole are provided The neutral pole(N pole) of four poles has four types

Speifications

Type	Rated current of trip (In A)	Pole number	Rated insulating voltage (V)	Rated operating distance (mm)	Arcing-over distance (mm)	Uitimate short circuit breakering capacity (kA)	Short circuit breaking capacity (kA)	Operation performance
Type	Rated current of trip (In A)	Pole number	Rated insulating voltage (V)	Rated operating distance (mm)	Arcing-over distance (mm)	Uitimate short circuit breakering capacity (kA)	Short circuit breaking capacity (kA)	ON	OFF
SLMM1-63L	6,10,16,20, 25,32,40, 50,63	3P 4P	660V	380V	0	25	18	1000	8500
SLMM1-63M					0	50	35
SLMM1-100C					0	25	18
SLMM1-100L	10,16,20,25 32,40,50,63 80,100				0(≤50)	35	22
SLMM1-100M					0(≤50)	50	35
SLMM1-100H					0(≤50)	85	50
SLMM1-225C	100,125,160 180,200,225				≤50	25	18	1000	7000
SLMM1-225L					≤50	35	22
SLMM1-225M					≤50	50	35
SLMM1-225H					≤50	85	50
SLMM1-400C	225,250,315 350,400				≤50	35	25	1000	4000
SLMM1-400L					≤50	50	35
SLMM1-400M					≤100	65	42
SLMM1-630C					≤100	35	25
SLMM1-630L	400,500,600				≤100	50	35
SLMM1-630M					≤100	65	42
SLMM1-630H					≤100	100	65
SLMM1800M	630,700,800				≤100	65	42
SLMM1-800H	630,700,800				≤100	100	65

Wenzhou Suoli Electric Co, . Ltd. (will change the namer to Wenzhou Manjia Electric Co., Ltd. ) is a manufacturer specialized in low-voltage electrical appliance, gathering research, manufacture, distribution and service as a whole. We mainly produce switch cabinet, JXF, distribution box, lighting box, plastic water-proof and dust-proof junction box, seal box, MCBs and so on.

Our company is established in 1995, located in Yueqing economic development zone with an area of 7800 square meters which is next to national highway 104, the transportation is very convenient.

Relying on powerful technology strength, advanced testing equipment, exquisite technical and modernized management mode, based on the principle that people oriented, we have 200 workers and 20 engineers. We import numerical control bending machine, cutting machine, punch, injection molding machine and such top-ranking facilities. Our products have passed certification of SON, CE and ISO9001.

The satisfaction of customers is our wishes and responsibility. In order to offer best services, we require all the staff to strengthen the notion of customer first. Besides, we also have established the center of after-sale services.

The company always keeps in touch in with clients and communicates with potential clients. Suoli always has been keeping the idea of the human being as base and considers honesty as the foundation, peace as the most valuable thing, and puts credibility in the first place.

Together with you, Souli is willing to create a better future.
