Slp/11/180, Alp/11/275, Alp/22/450, Flp/22/480, Alp/22/520, Alp/33/710, Alp/33/920 Pin Type Porcelain Insulators

Name: Slp/11/180, Alp/11/275, Alp/22/450, Flp/22/480, Alp/22/520, Alp/33/710, Alp/33/920 Pin Type Porcelain Insulators
Brand: all-electronics-online.com
SKU: 825621805
Availability: InStock
Rating: 5 (93 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Pin Type Porcelain Insulators
Application:	High-voltage
Material:	Porcelain
Structure:	Pin Insulator
Color:	White and Brown, or Light Green
Brand:	Ziyong

Product Description

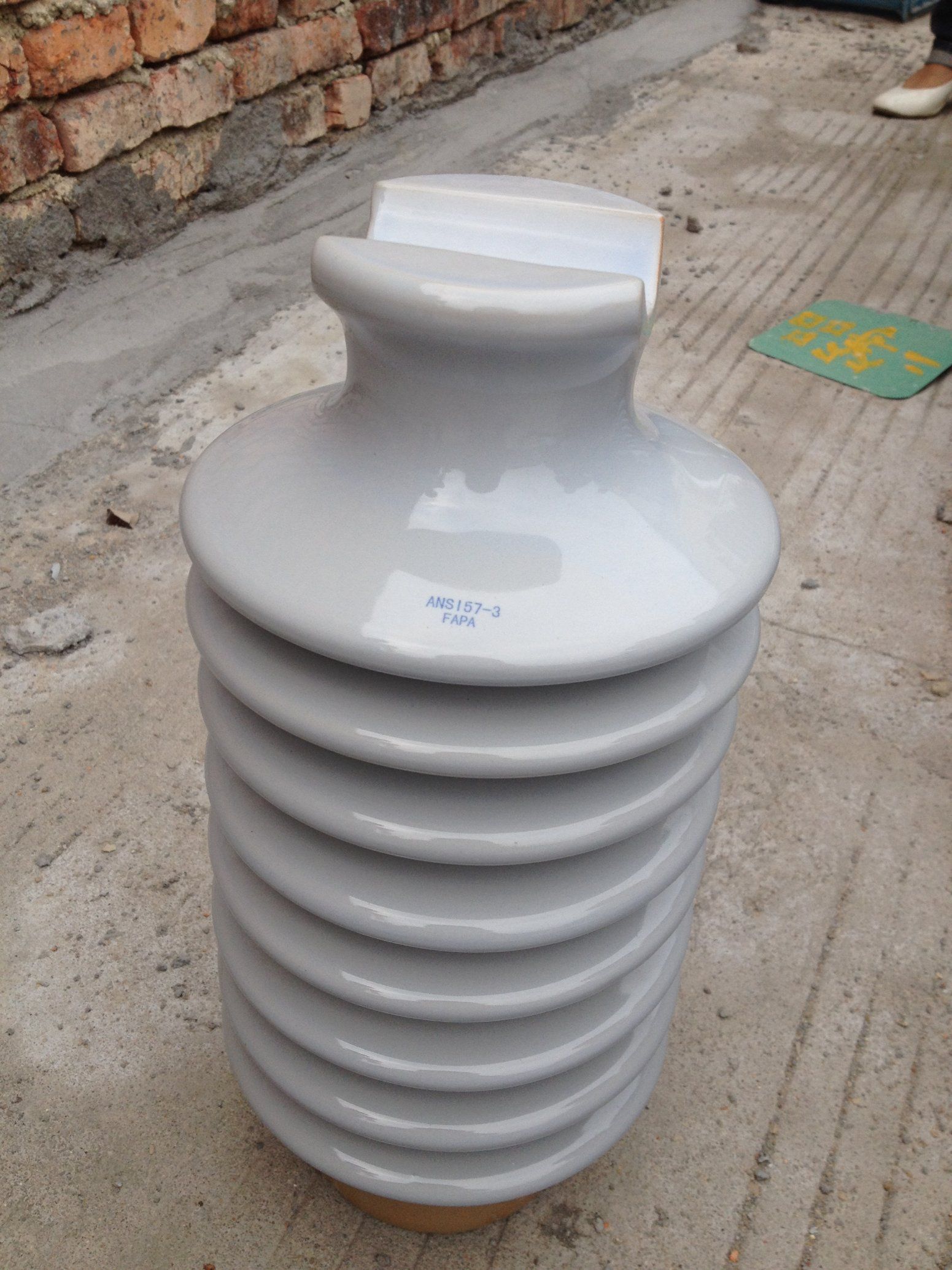

Pin insulators are designed to provide line support. The functions of these insulators is to support the conductor directly on the head or neck of the insulator (top and side grooves). Our pin insulators are designed and manufactured by many kinds of standards for insuring the insulators' electrical and mechanical performance, as well as all dimensionalspecifications and requirements.

Material:porcelain
Color:white and brown, or light green

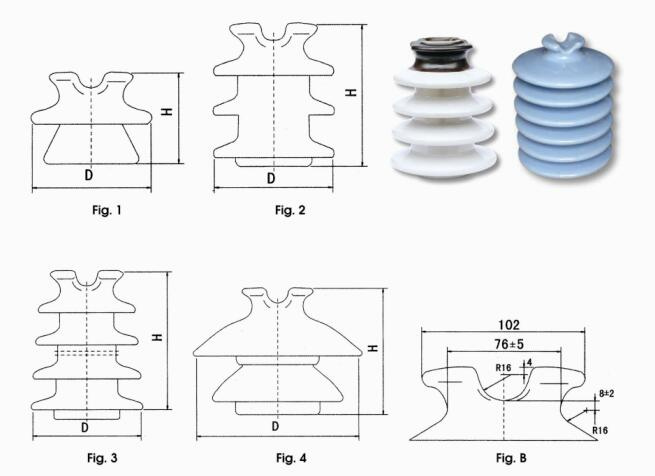

Drawing

Basic Data

Type		SLP/11/180	ALP/11/275	ALP/22/450	ALP/22/490	FLP/22/480	ALP/22/520	ALP/33/710	ALP/33/920
Type		SLP/11/180	ALP/11/275	ALP/22/450	ALP/22/490	FLP/22/480	ALP/22/520	ALP/33/710	ALP/33/920
Fig No.		1	2	3	3	4	3	3	3
Main dimensions,mm	H	110	160	200	250	200	210	265	320
Main dimensions,mm	D	150	150	160	165	250	200	220	240
Creepage distance	mm	180	275	450	490	480	520	710	920
Lightning Impulse Withstand Voltage	kV	105	105	150	160	150	150	220	220
Wet Power Frequency Withstand Voltage	kV	30	30	50	50	50	50	90	90
Minimun Bending Failing Load	kN	7	7	11	11	11	11	11	11
Recom Mended Pin Type		A/130/7	C/150/7	C/200/11	C/200/11	C/150/11	C/200/11	C/300/7	C/300/7
Recom Mended Pin Type		A/130/7	C/150/7	C/200/11	C/200/11	C/150/11	C/200/11	C/300/7	C/300/7
Designation		180S7	275A7	450A11	490A11	480F11	520F11	710A11	920A11

Festures:
Excellent electrical performance
Unbreakable and light weight
Good heat resistance and cold resistance
Good chemical stability
High rigidity and toughness
Easiest handing and transportation
Water repelling surface
Long service life
Non-toxic, non-standing and recyclable

Service
Choose our products! You'll get
1) Good quality guarantee (2 years)
2) Factory direct prices
3) On time delivery
4) Free sample
5) Professional technology support

Strict quality controls have been taken to ensure that you'll get reliable products.
a. Material checks before production.
b. Random inspection during production.
c. Inspection before the shipment.

Our products fully comply with well recognized standards such as IEC, BS, ANSI.

FAQ:
1. Q: Do you have a catalog? Can you send me the catalog to have a check of all your products?
A: Yes, We have product catalog. Please contact us, we'll send our catalog by E-mail.

2 Q: I can't find the product on your catalog, can you make this product for me?
A: Our catalog shows most of our products but not all. If you couldn't find it, let us know the specification of your requirements, it usually takes 20-30 days for us to design and make new moulds which match your requirements.

3 Q: What's your payment term?
A: The price FOB Ningbo under payment term is 50% T/T in advance and the balance before shipment.

Chongqing Ziyong Technology Co., Ltd(Wenzhou(Yueqing) Ziyong Electrical Co., Ltd )is a professional supplier and exporter of electric cable connectors and fittings. Our products include a wide range of Aerial Electrical Fittings (Main products like: Insulation piercing connectors, suspension clamps, anchor clamp, etc. ); A variety of Electric Power Fittings (PG clamps, Aluminium alloy stain clamps, wedge clamps, earth rod); Various kinds of terminals, lugs and link fittings; And many other products for power line system.

Our products are widely used in LV & MV power line system. All of our products with highest quality. We are CE certified, have the ISO9001: 2000 certificate, all the produce is according to International Standard, such as NFC, GB and so on. We also offer OEM service of customized requests. We owns the most advanced technology. Have the ability to research and design electricala apparatus by ourselves.
