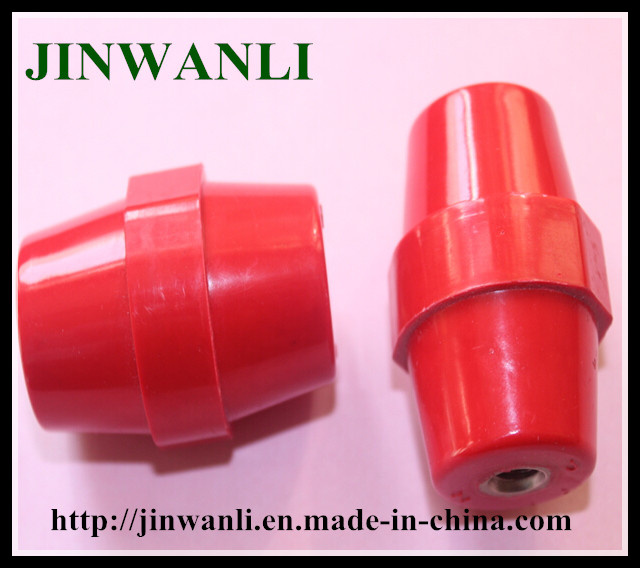

Name: Sm Busbar Insulator Low Voltage Bus-Bar Insulator
Brand: all-electronics-online.com
SKU: 714828065
Availability: InStock
Rating: 4.6 (92 reviews)

Price:	US $ 0.18/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SM35
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Low-voltage
Material:	Composite Polymer
Structure:	Bushing Insulator
Type:	B Type Insulator
Brand:	Jwl

Product Description

Specifications
Bus bar insulator(SM-25, SM-30, SM-35, SM-40, SM-51, SM-76)

Tensile strength: 500-1500LBS

Torgue strength: 6-40FTLBS

Voltage: 6-25KV Screw: 6-10mm

Feature:
1) Material: Bulk molding compound, unsaturated polymer with fiber glass

2) Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance properties

SM-25 Tensile strength: 500lbs, Tongue strength: 6lbs, Withstanding voltage: 6kV, Screw: 6mm, Weight: 28g
SM-30 Tensile strength: 550lbs, Tongue strength: 8lbs, Withstanding voltage: 8kV, Screw: 8mm, Weight: 30g
SM-35 Tensile strength: 600lbs, Tongue strength: 10lbs, Withstanding voltage: 10kV, Screw: 8mm, Weight: 50g
SM-40 Tensile strength: 650lbs, Tongue strength: 10lbs, Withstanding voltage: 12kV, Screw: 8mm, Weight: 86g
SM-51 Tensile strength: 1, 500lbs, Tongue strength: 40lbs, Withstanding voltage: 15kV, Screw: 8mm, Weight: 83G
SM-76 Tensile strength: 650lbs, Tongue strength: 10lbs, Withstanding voltage: 25kV, Screw: 10mm, Weight: 233G

Values	Style
Values	SM-25	SM-30	SM-35	SM-40	SM-51	SM-76
Temsile strength(lbs)	500	550	600	650	1000	1500
Torgue strength(fr lba)	6	8	10	10	20	40
Voltage withstand(kv)	6	8	10	12	15	25
Screw(mm)	6	8	8	8	8	10
Weight(g)	28	44	50	56	83	233
