Sm G657A 1X4 Fiber PLC Optical Splitter with ABS Box

Name: Sm G657A 1X4 Fiber PLC Optical Splitter with ABS Box
Brand: all-electronics-online.com
SKU: 691140161
Availability: InStock
Rating: 4.6 (106 reviews)

Price:	US $ 6-25/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FA-PLCA1×4SP
Connector Type:	Sc,LC,St,FC, Customized or Without Connector
Input/Output Length:	Customized
Input/Output Diameter:	0.9mm, 2.0mm, 3.0mm
Jacket Color:	Default or Customized Based on MOQ
Jacket Material:	PVC or LSZH
Fiber Type:	G.657A1 or Customized
Wavelength:	1260~1650nm
Optical Ratio:	Average
OEM:	Available
Polishing Type:	PC,Upc
Wiring Devices:	Integrated Wiring
Certification:	GS
Condition:	New

Product Description

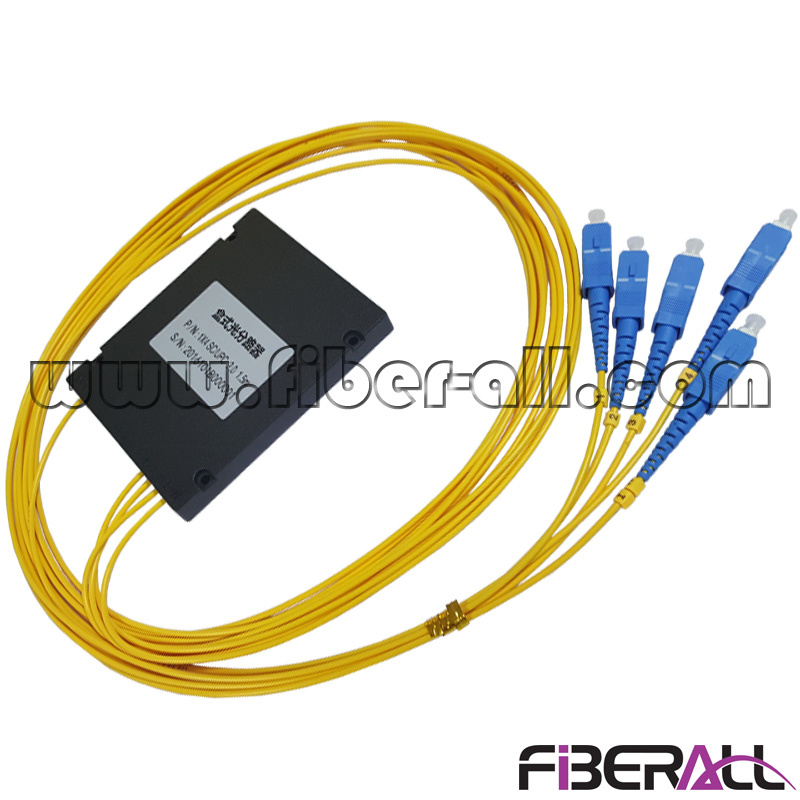

FA-PLCA1×4SP,SM G657A 1x4 Fiber PLC Optical Splitter with ABS Box

Product Introduction:
Fiberall Fiber Optical PLC(Planar Lightwave Circuit) Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (OLT) to multiple premise locations (ONU). It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting as a low-cost solutions. Fiberall has ability to provide all arrange of 1xN and 2xN PLC splitters that are tailored for specific applications.

Applications:
1.CATV/CCTV Links
2.FTTX Systems (FTTB, FTTC, FTTD, FTTH, FTTO, FTTP, FTTZ etc)
3.PON Networks (EPON, BPON, GPON)
4.Access/Metro Networks
5.Optical Signal Distribution
6.Long Haul Telecommunication

Performance Features:
1.Low insertion loss
2.Low PDL (Polarization Dependent Loss)
3.High Polarization Extinction
4.Excellent channel-to-channel uniformity
5.Compact size
6.Wide operating wavelength: 1260nm~1650nm
7.Wide operating temperature: from -40°C to 85°C
8.High reliability and stability (-40°C~85°C)
9.Bend sensitive G657A fiber

Standard Compliance:
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS
YD/T 2000.1-2009 (China National)

Main Parameters Of Fiber PLC Splitter

Items			Chanel Qty				1x4
Premium Grade
Insertion Loss			Max.		dB		7.4
Channel Uniformity			Max.		dB		0.6
Polarization Dependent Loss			Max.		dB		0.2
Operating Wavelength			1260~1650 nm
Return Loss		UPC	Min.		dB		50
Directivity			Min.		dB		55
Operating Temperature			ºC		-40~85
Storage Temperature			ºC		-40~85
Connector Type			SC,LC, ST, FC etc.
Fiber Type			SM ITU G.657A1 or Customized
Package Dimension	Bare Fiber Type		LWH	mm		5044
	Mini Steel Tube		LWH	mm		5074
	ABS Module		LWH	mm		1008010
	LGX Box Type		LWH	mm		13010025
	Rack Mounted		LWH	mm		1U 19 inch
