Sm Simplex Sc Connector Fiber Optic Patchcord

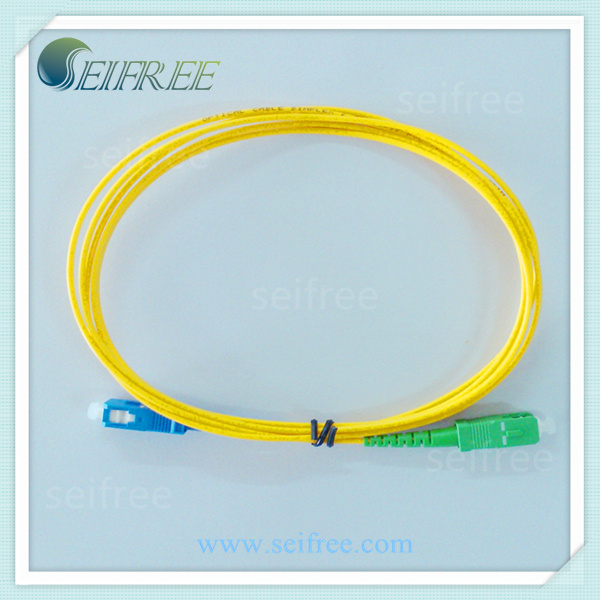

Name: Sm Simplex Sc Connector Fiber Optic Patchcord
Brand: all-electronics-online.com
SKU: 791160725
Availability: InStock
Rating: 4.8 (66 reviews)

Price:	US $ 1.202-1.223/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SOFC-1-SU-SA-E-3-0-C-10
Connector Type:	Sc/APC & Sc/Upc
Fiber Type:	G652D
Jacket Type:	PVC
Pigtail Diameter:	3mm
Pigtail Length:	100cm
Application 1:	FTTH
Application 2:	CATV
Application 3:	ODF
Application 4:	Gepon
Application 5:	Olt
Application:	Probe
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001

Product Description

Description
Optical Jumper Wires are important parts of optic network. They have same or different type connector which is installed on the end of fiber optic cable.

Applications Features
Optical Network Wiring Low Excess Loss
Test Equipment High Return Loss

Ordering Information
SOFC- 1 - SU -    SA - E - 3 - 0 - C - 10

Cable	First End	Second End	Fiber Type	Pigtail Dia.(mm)	Fan Out Length	Jacket Type	Length
1=1Fiber	FU(A)=FC/UPC(APC)	FU(A)=FC/UPC(APC)	H=Hi 780	09=Φ0.9	05=50cm	E=PE	05=50cm
2=2Fiber	SU(A)=SC/UPC(APC)	SU(A)=SC/UPC(APC)	F=Flex 1060	2=Φ2mm	10=100cm	C=PVC	10=100cm
4=4Fiber	...	...	D=G652D	3=Φ3mm	...	H=LSZH	...
	LU(A)=LC/UPC(APC)	LU(A)=LC/UPC(APC)	A=G657A	...	20=200cm	A=Armored	20=200cm
R=Ribbon	X=Customization		B=G657B	X=Customization
			W=Bow-type
			OM1=62.5/125
			OM2=50/125
			OM3=50/125
			OM4=50/125

Specification

Parameter	Unit	Value
Connector	/	FC ST SC LC
Ferrule	/	PC		UPC		APC(Step)		APC(Conical)
Fiber Type	/	SM	MM	SM	MM	SM	MM	SM	MM
Insertion Loss	dB	<0.25	<0.20	<0.25	<0.20	<0.30	/	<0.30	/
Repeatability	Time	>1000
Interchangeability	dB	<0.10
Return Loss	dB	>45	>36	>50	>36	>60	/	>60	/

FAQ
1.Is your company a manufacturer or dealer?
---We have our own factory in Wuhan, China.

2.Can you provide free samples for us?
---Sure, we can provide free samples for you, but the freight should be paid by you.

3.What's the lead time for all the goods that I required?
---It depend on the quantity of products. Generally, it would be 1-2 weeks.

4.What's the warranty for your products?
----Normally it is 1 year.

5.What's your payment term?
---It is 100% T/T in advance.

6.What's the MOQ for your products?
---1pcs is okay.

Wuhan Seifree Technology Co., Ltd is located at the Optical Valley, East Lake National High-tech Development Zone of Wuhan. It specializes in R&D, manufacturing, sales of Optical Passive Components. With the great technologies in optical research and production, Seifree gathers a number of optical talents on fiber communication, which possess the rich experience of R&D and a strong capability of technology innovation.

The product includes thin-film filter (DWDM, CWDM, Triple-play WDM), Fused Bi-Conical Taper (Coupler, WDM) and Waveguide Splitter (PLC Splitter), Micro-optics (Circulator, Isolator) Fiber optical Interconnect (Optical Jumper, Adaptor) and other components and modules of Active (CWDM SFP) and Passive.

We create a good working atmosphere, solidarity and cooperation, and build the corporate culture --Service, Excellence, Innovation, Fidelity, Reciprocity, Economical, and Development. All products are designed, manufactured and delivered to meet the requirements of Telcordia and ISO9001.

We welcome you to consider Seifree to provide the high-quality product and considerate service for meet your demands.
