Small Volume Plastic Enclosure Surface Mounted Distribution Box

Name: Small Volume Plastic Enclosure Surface Mounted Distribution Box
Brand: all-electronics-online.com
SKU: 816083265
Availability: InStock
Rating: 4.8 (78 reviews)

Price:	US $ 2.20-2.51/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HAG
Max Rated Current:	63A
Standard:	IEC60439-3
Characteristic:	Good-Looking,Small Volume,East Install
Structure:	Protection
Type:	Distribution Plastic Box
Certification:	Ce,RoHS
Size:	1 to 4 Way and 6 to 18 Way
Shell Material:	ABS
Brand:	Chana or OEM

Product Description

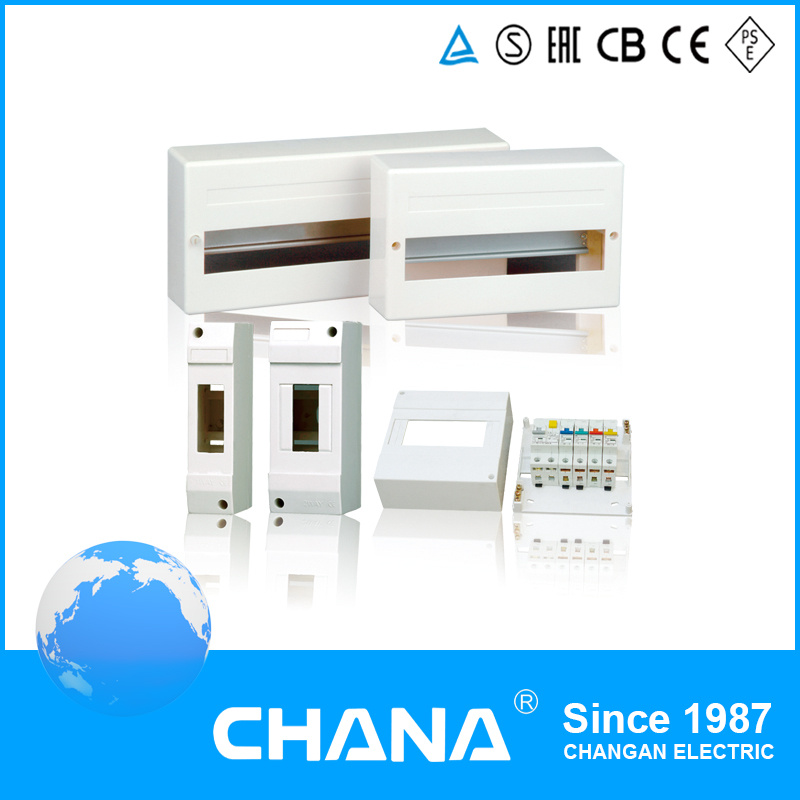

HAG Series Distribution Box

1. Application

HAG sereis of surface box is kind of good-looking outline small volume. easy to install ecnomically modular distribution box. It mainly use for building electric distribution system installation, matched and house rebuid fitment, etc. application the max rated current is 63A

2. Description

Protection degree: IP30
Standard: IEC60439-3
Electric value: up to 63A, 240/415V, AC 50/60Hz
Way No.: 1, 2, 4, 6, 8, 12, 18
Shell material: PS, ABS, ABS-UV Fire Resistant
Approval: CE, RoHS

3. Specification Surface-Mounted

Model	Way No.	Dimension (mm)			PCS/CTN
Model	Way No.	L	W	D	PCS/CTN
HAG-1P	1	34	130	60	200
HAG-2P	2	52	130	60	200
HAG-4P	4	87	130	60	100
HAG-6P	6	123	160	60	50
HAG-8P	8	160	160	60	50
HAG-12P	12	260	160	60	20
HAG-18P	18	365	160	60	20

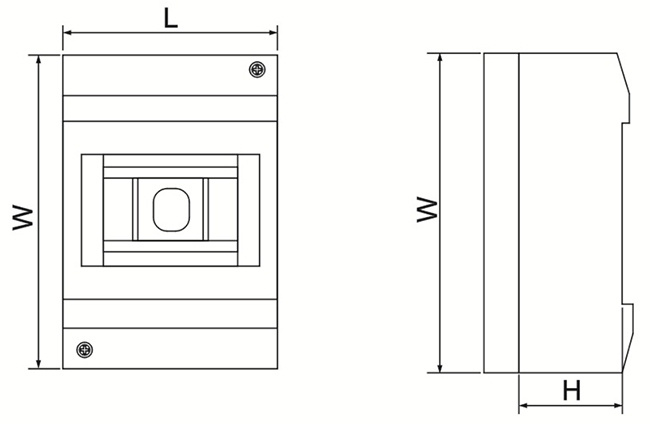

4. Overall and Installation Dimension

5. Feature Product

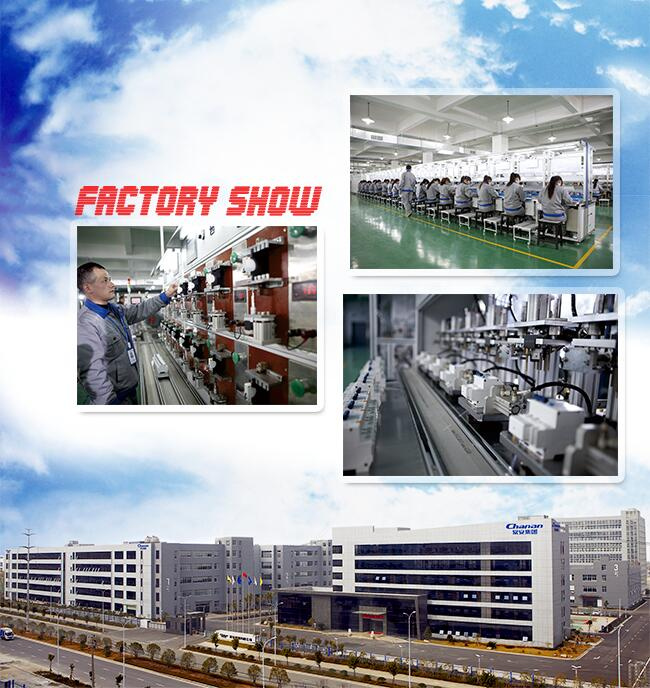

6. About Us

Established in 1987, CHANGAN is a large national enterprise, located in China Electric Appliance Capital- Liushi. Taking the industrial electric appliance as the leading sector, Integrating the R&D, information, trade, services, manufacture and sale of high and low voltage electrical apparatus, Instrument and Meter, Power Supply Equipment, Power Distribution Cabinet and Electric product for building and construction.

As core company, CHANGAN GROUP CO., LTD. is mainly engaged in MCB, RCCB, RCBO, MCCB, CONTACTOR, THERMAL RELAY, SPD, MPS, STARTER, STABLIZER, PUSH BUTTON SWITCH, INDICATOR, TERMINAL, CABLE ACCESSORIES etc. Company own over 2000 employees, 116000 square meter construction area, registered capital totalizing to 0.10518 billion RMB, it has established over 500 sales branches throughout the whole country.

Certificate:ISO9001,ISO14001,OHSAS18001,CCC,SEMKO,CE,CB,TUV,EAC,TSE.Products are sold to UK, France, Russia, Turkey, German, Brazil, Argentina, South Africa, Egypt, Iran and other 60 countries and areas.

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
