AC 690V 95A Contactor Reversing Change-Over Type Contactor

Prod Model:	CC1-95N

Product Description

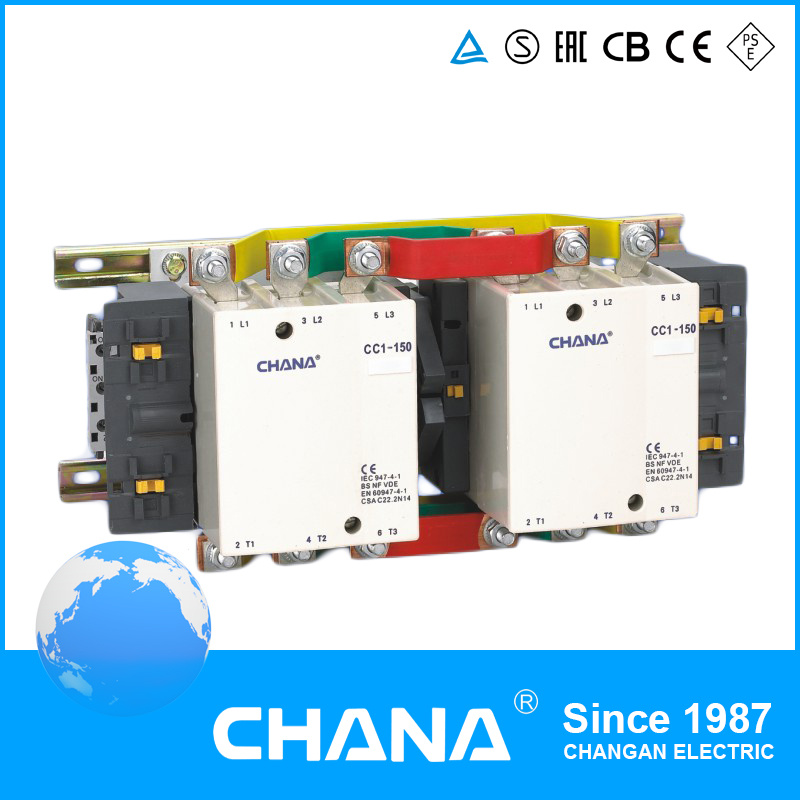

CC1-N Reversing/Change-over Type Contactor

1. Description

Remote making & breaking circuits; Protect circuit
From over-load when assembling with thermal over-load relay;
Frequent start-up and control of AC contactor;
Electric ratings: AC50/60Hz, 690V, up to 95A;
Utilization category: AC-3, AC-4;
Altitude: ≤ 2000m;
Ambient temperature: -5º C~+40º C;
Mounting category: III;
Mounting conditions: Inclination between the mounting plane and the vertical plane should not exceed ± 5°
Standard: IEC/EN 60947-4-1. IEC/EN 60947-5-1.

2. Structure

The contactors are composed of two horizontally mounted contactors through mechanical interlock.
The lateral-side interlock is mounted between the two contactors.

3. Technical


TYpe			CC1- 09	CC1- 12	CC1- 18	CC1- 25	CC1- 32	CC1- 40	CC1- 50	CC1- 65	CC1- 80	CC1- 95
Rated working current (A)		AC3	9	12	18	25	32	40	50	65	80	95
		AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
AC3 capacity of three-phase   squirrel-cage motor AC3(kW)		220/230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
		380/400V	4	5.5	7.5	11	15	18.5	22	30	37	45
		415V	4	5.5	9	11	15	22	25	37	45	45
		440V	4	5.5	9	11	15	22	30	37	45	45
		500V	5.5	7.5	10	15	18.5	22	30	37	55	55
		660/690V	5.5	7.5	10	15	18.5	30	33	37	45	45
Rated heat current (A)			20	20	32	40	50	60	80	80	125	125
Electrical life	AC4X104		20	20-15	20-7	15-7	15-7	10-7	7	7-6	7-5	7-5
	AC3X106		2	2	2	2	2	2	2	1.6	1.6	1.6
Mechanical lifeX106			20	20	20	20	20	20	50	20	10	10
Number of the contact			3P+NO OR 3P+NC
			3P+NO+NC
Matched auxiliary contact   type			LA1-DN02(2NC),LA1-DN11(1NO+NC),LA1-DN20(2NO),LA1-DN22(2NO+2NC),LA1-DN40(4NO,LA1-DN04(4NC),LA1-DN13(1NO+3NC),LA1-DN31(3NO+1NC)
Matched time delay auxiliary   contact type			Time delay after power on:LA2-DT0(0.1-3S),LA2-DT2(0.1-30S),LA2-DT4(10-180S),Time   delay after power off:LA3-DR0(0.1-3S),LA3-DR2(0.1-30S),LA3-DR4(10-180S)

4. Dimension(mm)

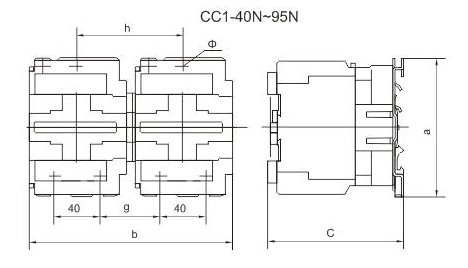

Contactor model	a	b	c	g	h	Φ
CC1-40N~65N	129	165	116	50	90	6.5
CC1-80N~95N	129	165	127	57	90	6.5
