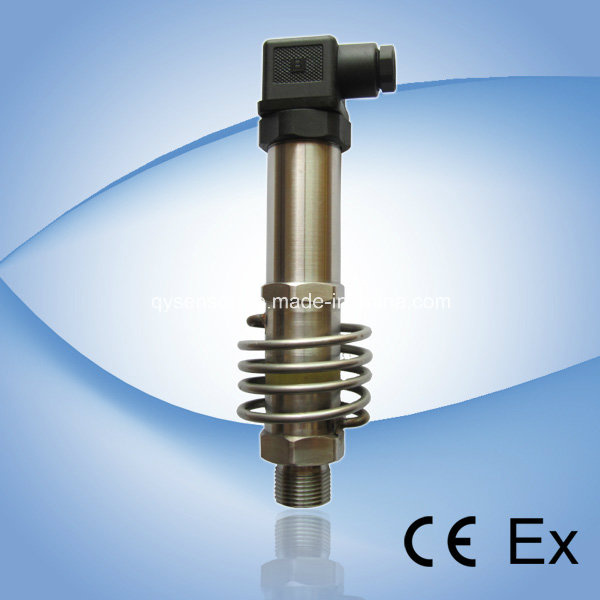

Smart Pressure Transmitters Qzp-S6 for High Temperature of (-30º C~150º C) Gas and Liquids

Name: Smart Pressure Transmitters Qzp-S6 for High Temperature of (-30º C~150º C) Gas and Liquids
Brand: all-electronics-online.com
SKU: 780093005
Availability: InStock
Rating: 4.7 (55 reviews)

Price:	US $ 120/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	QZP-S6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measure Range:	0~100kpa^.0~500kpa^.10, 35, 60, 100 MPa
Accuracy:	±0.3%Fs, ±0.2%Fs
Output Signal:	4~20mA;0~10V, 1~5V, 0~5V, 0~20mA
Power Supply:	12~36(Standard 24VDC)
Housing Material:	Stainless Steel
Material Of Diaphragm:	316L Stainless Steel
Application:	Measuring High Tempeararue Gas and Liquid
Measuring Medium:	Gas and Liquid

Product Description

QZP-S6 high temperature smart pressure transmitters are consist of 316L isolation membrane pressure transmitter, high-powered MPU, integrated circuit and high-stability constant current. It can correct the linearity and compensate temperature drift. Also can adjust the data of transmitter by hand-helder, achieve accurate data transfer, local equipment diagnoses and long-distance bidirectional communication. With characteristics of high precision, good stability, good reliability and easy handle.

Model: QZP-S6
Range: 0~100KPa.0~500KPa.10, 35, 60, 100 MPa
Accuracy:±0.3%FS, ±0.2%FS
Feature:
High temperature smart type pressure transmitters.
Can choose with HART AGREEMENT.
Have the characteristics of high precision, good stability, long working life and high reliability.
Small in size, light in weight. easy to installation.
Pressure connection and Electrical connection are able to chosen by customers.
Suitable for high accuracy measuring the temperature of -30ºC~150ºC gas and liquids.
Technical Specifications

Measuring media		Gases or liquids which are compatible to 316L stainless steel
Measuring range		0~100KPa,.0~500KPa.10, 35, 60, 100 MPa
Pressure type		Gauge(G),Absolute(A),Sealed(S)
Signal output	Analog	transmitter, mA (2 wires)	4~20mA
		transmitter, Vdc (3 wires)	0~10V, 1~5V,0~5V,0~20mA
	Digital	Can bi-dinrectionally communication in accordance with HART AGREENMENT
Combined accuracy		%FS	±0.3(Standard), ±0.2
Long stability		±0.1%FS/year(Standard);±0.2%FS/year(Max)
Power supply		Vdc	12~36(Standard 24Vdc)
Compensated temp.		ºC	-10~+60
Operating temp.		ºC	-30~+150
Temperature coefficient of ZERO		%FS/10ºC	≤±0.2
Temperature coefficient of SPAN		%FS/10ºC	≤±0.2
Insulation resistance		MΩ	>500 @ 100Vdc
Electrical connection		DIN43650,aviation connector,directly lead(Selectable)
Material		Housing Material	Stainless steel(1Cr18Ni9Ti)
		Material of diaphragm	316L Stainless steel
Pressure connection		G1/4, G1/2, M20x1.5,M14x1.5,M12x1,(Customized)
Environment protection		IP	65
Safe overload		%FS	200

Ordering code: model- range & type-signal output-accuracy-pressure connection-electrical connection-defend grade-the other requests.
Example: QZP-S6-0/300KPaG-4/20mA-0.1%FS-M20x1.5-DIN43650-IP65-***
