SMD 5050 28 Key 6A (2Ax3) Output DC12V-24V with IR RGB Remote Controller

Name: SMD 5050 28 Key 6A (2Ax3) Output DC12V-24V with IR RGB Remote Controller
Brand: all-electronics-online.com
SKU: 831160465
Availability: InStock
Rating: 4.5 (76 reviews)

Price:	US $ 2.9-5/Meter
Min Order:	50/Meter
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Power:	72W
CCT:	RGB
Lead Time:	3working Days
Warranty:	3years
Application:	Building
Signal Transmission:	IR Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Material:	Plastic
Battery Type:	Button Battery
Transmission Distance:	30m
Voltage:	12V-24V

Product Description

SMD 5050 28 Key 6A (2Ax3) Output DC12V-24V with IR RGB Remote Controller

Product Description

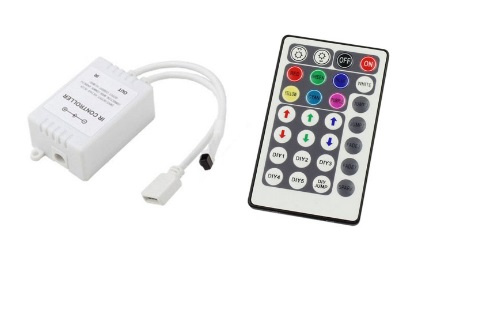

28-key infrared controller adopts the advanced micro control unit, it is used for controlling all kinds of lamp whose source of light is LED. For instance, led source , flexible led strip, wall washer, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control.

Specifications

Working temperature	-20-60ºC
Supply voltage	DC5V, 12V,24V optional (specify the required voltage on orders)
0utput	3 channels
Connecting mode	common anode
External dimension	L61W35H22 mm
Remote control size	L84×W51×H5mm
Net weight	40g
Gross weight	50g
Static power consumption	<1W
Output current	<2A(each channel)
Output power	5V:<30W, 12V:<72W, 24V:<72W

Supplement:

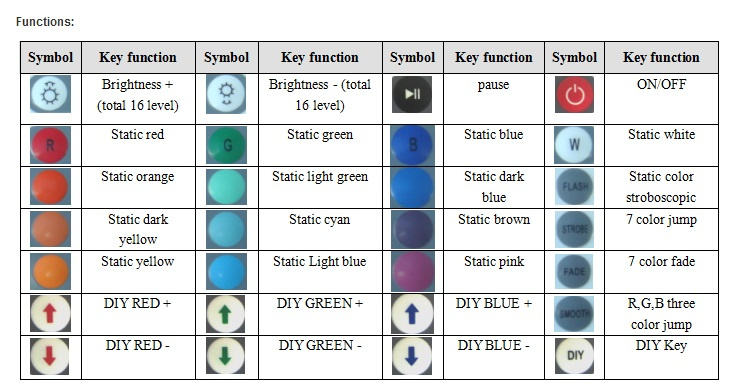

About DIY key, when it's pressed first time, will enter the DIY color mode, you can adjust the color buy press the 6 keys at above to increase or decrease the R/G/B color by yourself freely(if other key is pressed this time,will jump out from DIY color mode). And you can save the color which you have adjusted by pressing the DIY key once again. When next time this key is pressed, it will show the color you saved last time.

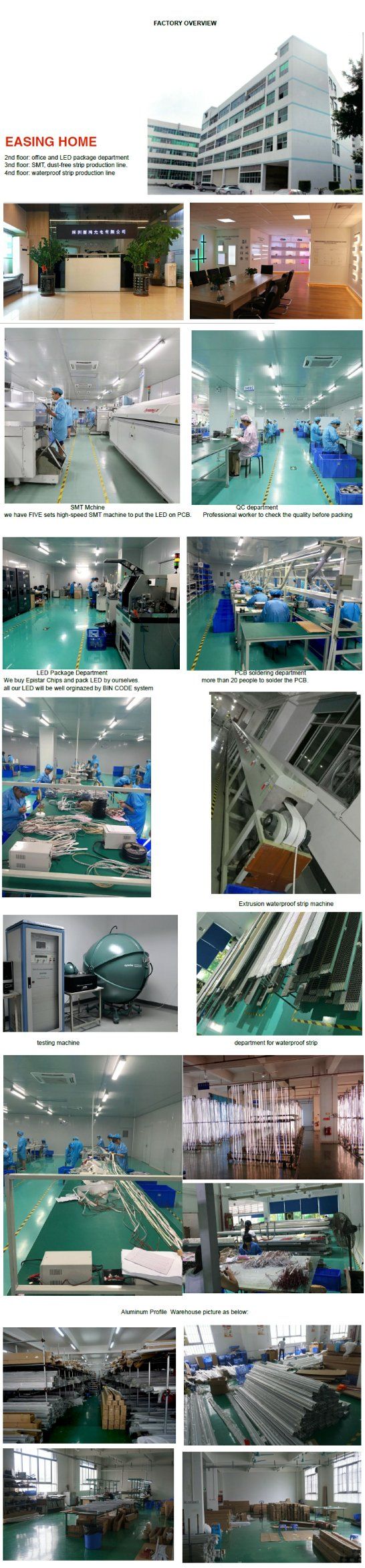

Factory Overview

Easing Home Technology Co., Ltd is one of the largest and fastest growing supplier on LED extrusion profile and LED strip in China, with more than 300 models LED profile and more than 200 models LED strip. Our offer includes aluminum profiles, LED strips and linear lights for residential lighting, commercial lighting and decorative lighting ect.

In the nearly 8years since our founding, We been dedicated to manufacture high quality and cost efficient LED products that use the latest technology. We do honors on every improvement to our products and service in the marketing. To lead the field, we never stop to produce new products to meet the high expectations of our customers.

We have a great team with rich backgrounds in technical and mechanical services in lighting industry, and we are always here ready to help you create whatever lighting solutions your imagination can come up with while using our products. Easing Home is always your great choice for LED lighting integration.

We invite you to join the work we are willing to do together for the GREEN-WORLD.
