SMT 400-800va Line Interactive UPS

Name: SMT 400-800va Line Interactive UPS
Brand: all-electronics-online.com
SKU: 839240975
Availability: InStock
Rating: 4.8 (113 reviews)

Price:	US $ 19.84-25.1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SMT400-800VA
Input:	110V or 220V +- 20%
Output:	110V or 220V+ - 10%
Wave Form:	Transfer Time Less Than 10ms.
Output PF:	0.6
Product Name:	SMT400-800va Line Interactive UPS
Phase:	Single Phase
Type:	Line Interactive
Protection:	Short Circuit
Classification:	UPS
Output Capacity:	Depend on Capacity
Brand:	Greenmaster

Product Description

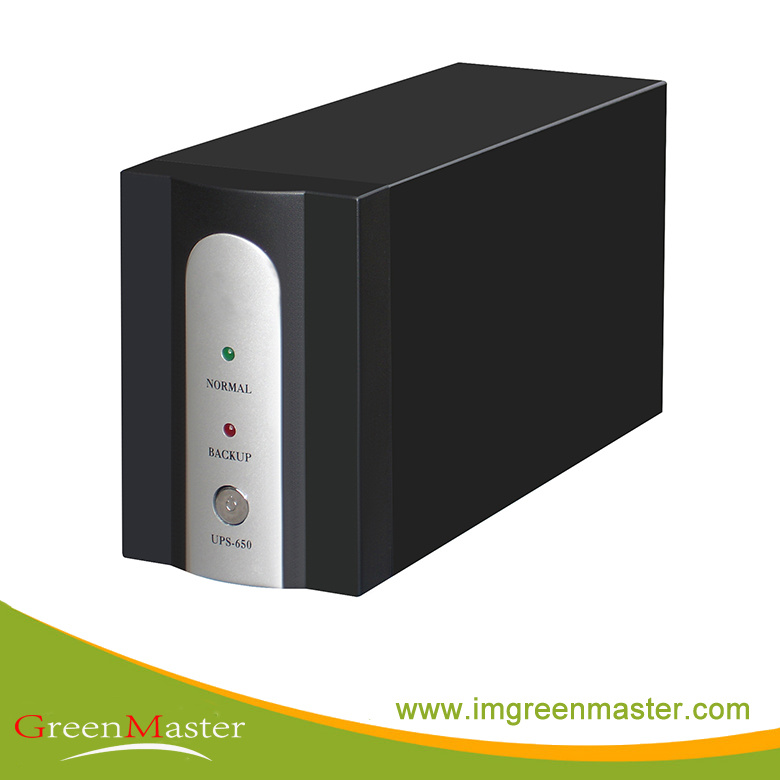

SMT400-800VA Line Interactive UPS

* I/P: 220VAC or 110VAC , O/P:220VAC or 110VAC ± 10%

* Capacity:400VA / 500VA

* Output PF: 0.6

* Wave Form:Modified sine wave

* Transfer Time:<10 ms

* DCVoltage:400VA/500VA600VA/650VA/800VA/12VDC

* Bat.:400VA/500VA:1PCS 4.2AH

600VA/650VA/:1PCS 7AH, 800VA:1*9AH

Key features:

1.CPU Control, SMT Technology,Line interactive UPS

2.Boost and Bluck AVR

3.Protection for Short circuit ,overload and battery low voltage

4.LED indication and audible alarm function

5.Intelligent battery management

6.AUTO Restart function when AC recovers

7.Off charge function

8.Cold start function

Technical Specifications

ITEM	MODEL	SMT400	SMT500	SMT600	SMT650	SMT800
Capacity	Output power	400VA/240W	500VA/300W	600VA/360W	650VA/390W	800VA/480W
Input	Voltage range	75-150 or 140-290+-5VAC
	Power Factor	0.98 ,R Load
	Frequency range	40-70HZ, self-adapt
Output	Voltage	220V or 110V ± 10% ( Line Mode ), 220V or 110V ± 5% (battery mode)
	Frequency (battery mode)	50 or 60 ± 1Hz self-adapt

	Transfer time	<10Ms
	Waveform	Modified sine wave (battery mode)
Overload		110% < Load ≤ 120%, Shutdown after 5 mins, Load>120% shutfown immediately
Battery	Type	Sealed lead acid, maintenance free
	DC voltage	12VDC
	Battery number	1*12V/4.2AH	1*12V/4.2AH	1*12V/7AH	1*12V/7AH	1*12V/9AH
	Low Cut Point	10V ± 0.5V

	Standby time	Full load >3min,half load >8min
	Recharge	After fully discharged, charge 8 hours to 90% capacity
Protecting	overload	Fuse & current limited when overloaded
	Battery low voltage	Automatically lock out the machine so as to protect the Battery from over discharging
	Short circuit	Fuse & current limited
	Restart	Auto restart when AC recovery.
Alarm	Battery back-up	Sounding every 4 seconds
	Battery low	Sounding every 1 second,
	Battery Replace	Sounding every 2 seconds
	Overload	continously
Indicator	LED	LED indicator for line on, battery back-up, charging , Fault
product Size	LWH(mm)	26595140	26595140	350105155	350105155	350105155
Carton size	LWH(mm)	590315235mm /4PCS	590315235mm /4PCS	385315235 /2PCS	385315235 /2PCS	385315335 /2PCS
Package weight	Kg	18/4PCS	18/4PCS	11/2PCS	11/2PCS	13.4/2PCS
