Solar PV Application Lightning Arrester

Name: Solar PV Application Lightning Arrester
Brand: all-electronics-online.com
SKU: 734228042
Availability: InStock
Rating: 5 (141 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	COU-PV
Rated Voltage:	500VDC~1000VDC
Max. Continous Running Voltage:	5301060VDC
Nominal Discharge Current:	5~30ka
Max Discharge Current:	10~60ka
Protection Level0:	Less Than 1.5kv
Working Temperature:	-40~+85
Protection Degree:	IP20
Leakage 0.75ulma:	Less Than 20
Pole:	1p 3p
Type:	Temperature Fuse
Usaga:	Low Voltage
Breaking Capacity:	10ka
Standard:	IEC

Product Description

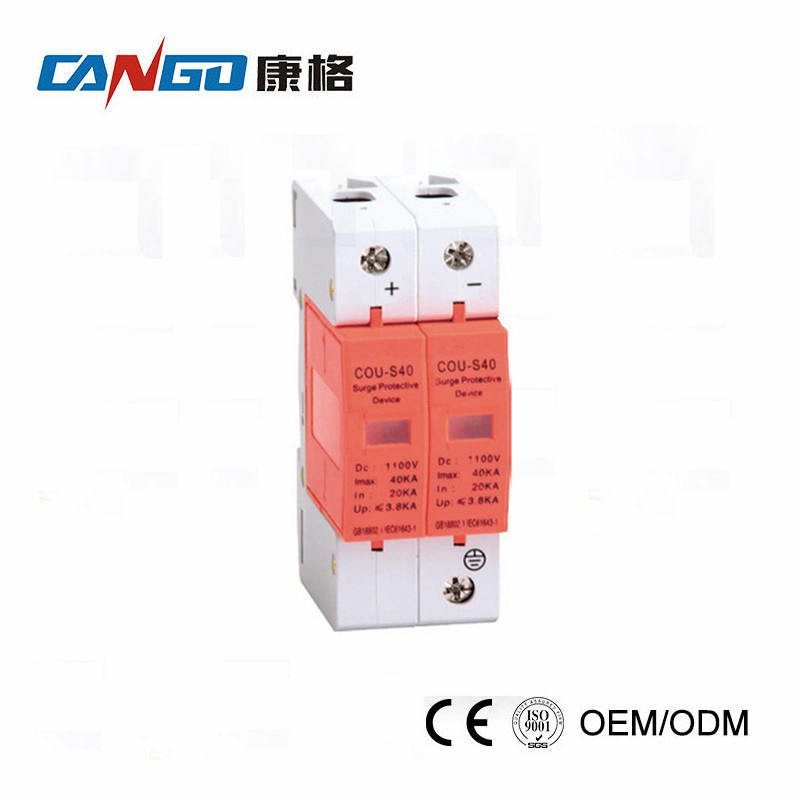

COU-PV surge protector:
1. Large flow capacity, low residual voltage, quick response time
2. Less leakage current and change rate
3. Special impact capacitance is used, high reliablity
4. Adopt newest thermal dissociation technique, completely avoid fire hazard
5. Core elements are with excellent performance, operate stablely and reliabely

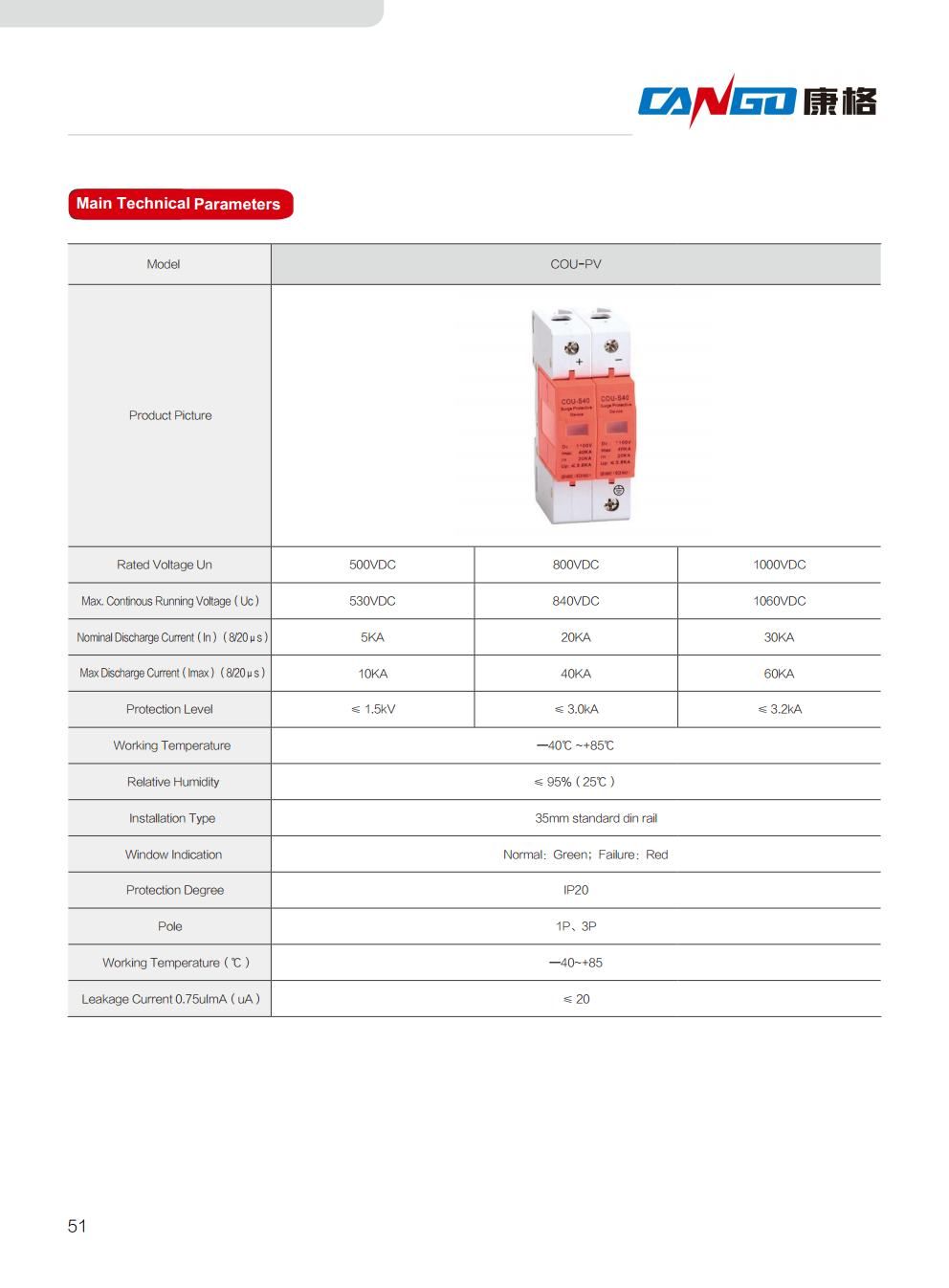

Technical Parameters of COU-PV Surge Protector

Poles	1P 3P
Rated Voltage Ue(V)	500VDC
Norminal discharge current(A)	5~30kA
Max. discharge current(A)	10~60kA
Max continuous working voltage(V)	530VDC~1060VDC
Relative Humidity	less than 95%
Protection Degree	IP20

Application of our COU-PV series surge protector:

Our Factory:

Pls feel free to contact us.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
