Surge Arrester Lightning Arrester Surge Protector Cou-B

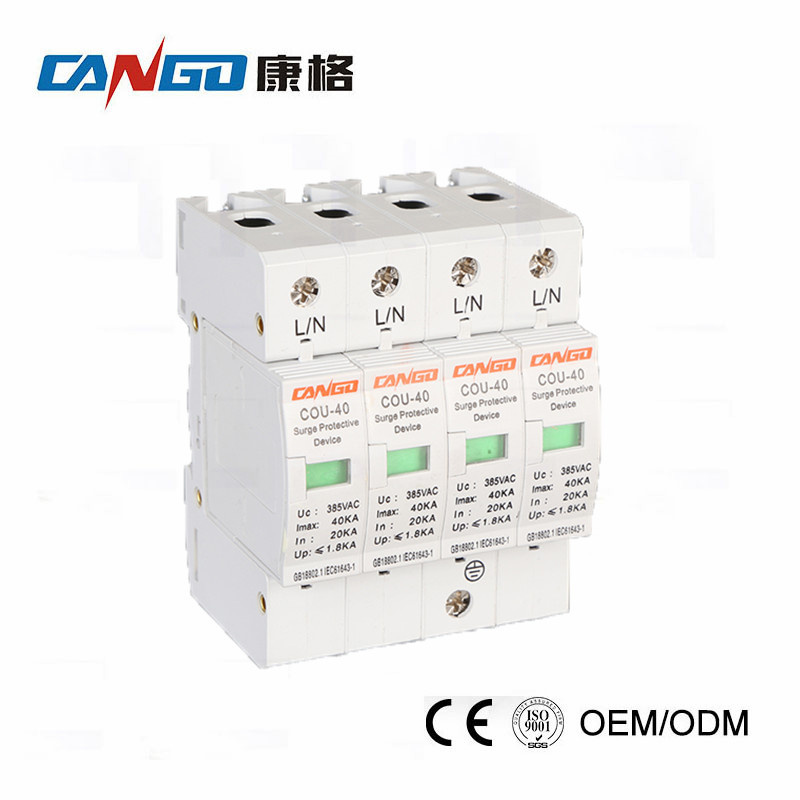

Name: Surge Arrester Lightning Arrester Surge Protector Cou-B
Brand: all-electronics-online.com
SKU: 734223322
Availability: InStock
Rating: 4.8 (90 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

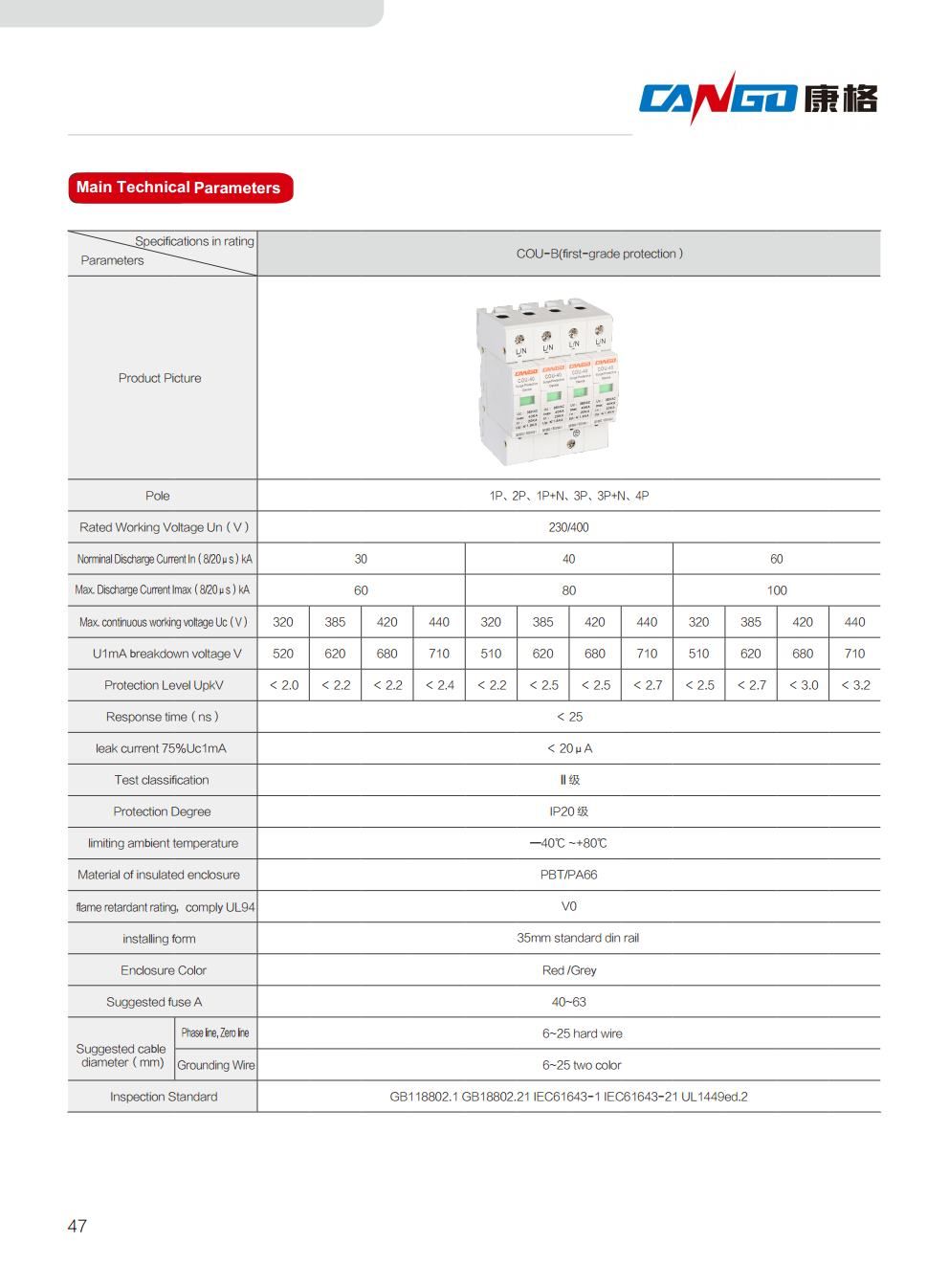

Prod Model:	COU-B
Poles:	1p 2p 1p+N 3p 3p+N 4p
Rated Working Voltage Ue(V):	230/400
Norminal Discharge Current(a):	30/40/60
Max. Discharge Current(a):	60/80/100
Max Continuous Working Voltage(V):	320~440
Response Time:	Less Than 25ns
Protection Degree:	IP20
Ambient Limit Temperature:	-40ºC~+80ºC
Material Of Enclosure:	PBT/PA66
Type:	Temperature Fuse
Usaga:	Low Voltage
Breaking Capacity:	10ka
Standard:	IEC

Product Description

COW1-2000 Universal Circuit Breaker
1. Window color display protection working status
2. Protection action response quickly
3. Modularization, can withstand high current
4. Remote signal output

Technical Parameters of COW1-2000 Universal Circuit Breaker

Poles	1P 2P 1P+N 3P 3P+N 4P
Rated Working Voltage Ue(V)	230/400
Norminal discharge current(A)	30/40/60
Max. discharge current(A)	60/80/100
Max continuous working voltage(V)	320~440
Response time	less than 25ns
Protection Degree	IP20

Application of our COU series surge protector:

Our Factory:

Pls feel free to contact us.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
