Residual Current Circuit Breakers RCCB Coble-63 2p

Name: Residual Current Circuit Breakers RCCB Coble-63 2p
Brand: all-electronics-online.com
SKU: 733812002
Availability: InStock
Rating: 4.6 (90 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	COBLE-63
Poles:	2p 4p
Frequency:	50/60Hz
Rated Current In(a):	6,10,16,20,25,32,40,50,63
Rated Insulated Voltage Ui(V):	400
Rated Working Voltage Ue(V):	2p:230 4p:400
Rated Impulse Withstand Voltage Uimp(V):	4000
Instantaneous Trip Type:	C,D
Ics(Ka):	6
ICU(Ka):	6
Mechanical Life(Times):	20000
Type:	Temperature Fuse
Usaga:	Low Voltage
Breaking Capacity:	10ka
Standard:	IEC61009-1

Product Description

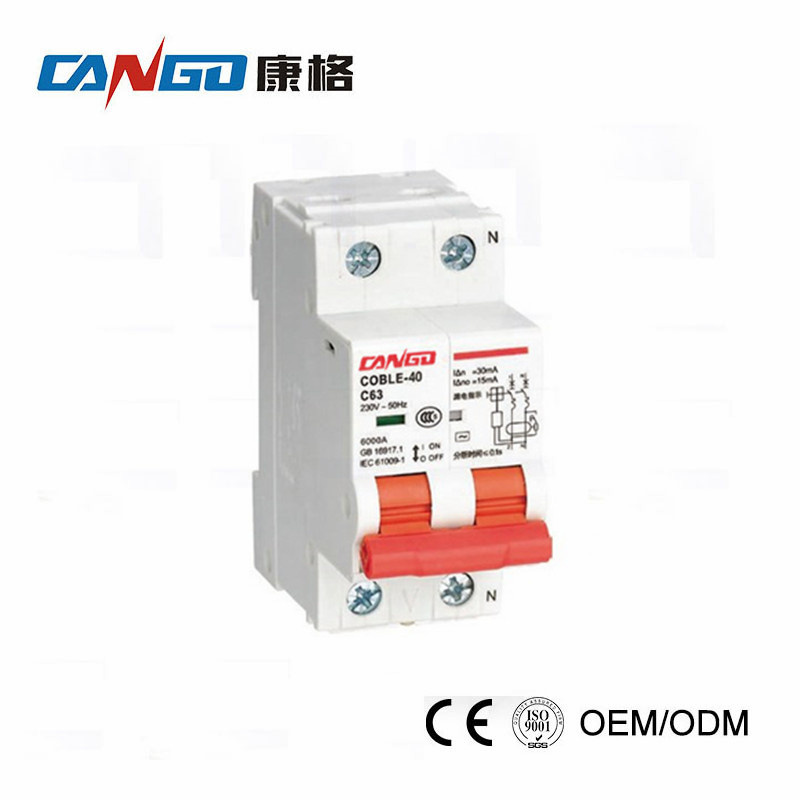

COBLE-63 RCCB
1. High breaking capacity, strong attachment;
2. With a finger protection combination terminal and green safety instructions, more secure;
3. The current limiting contact system avoids the short circuit current and improves the service life of the product and the equipment;
4. Shell and part of the functional parts are imported from abroad with high flame retardant, high temperature resistant, impact resistant plastic;
5. Beautiful appearance, small size, width is only 36mm;
6. The utility model has the advantages of residual current protection, short circuit protection, over load protection, electric leakage self-locking function and zero fire double break function.

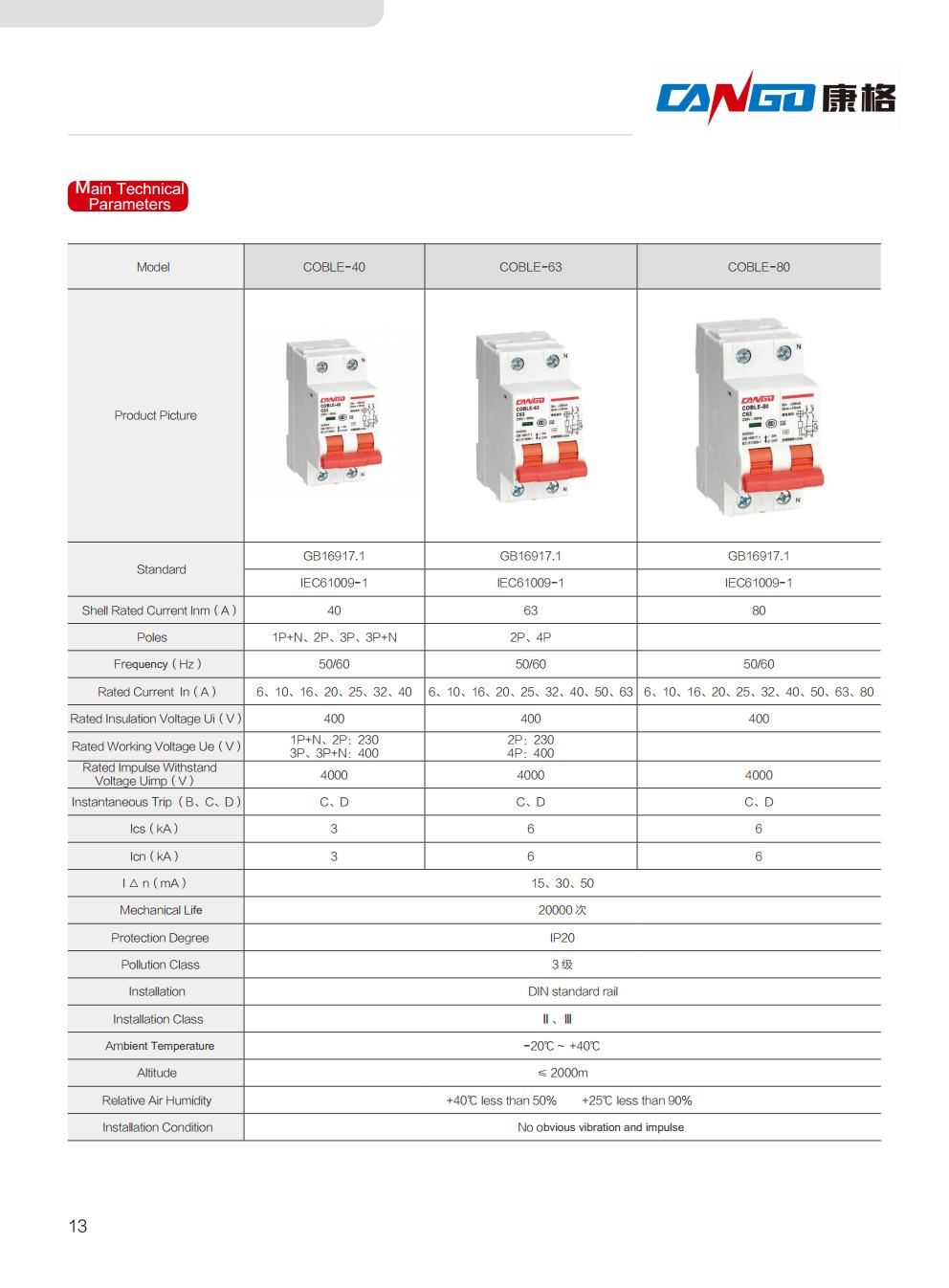

Technical Parameters of COBLE series RCCB

Application of our COB Series MCB:

Our Factory:

Pls feel free to contact us.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
