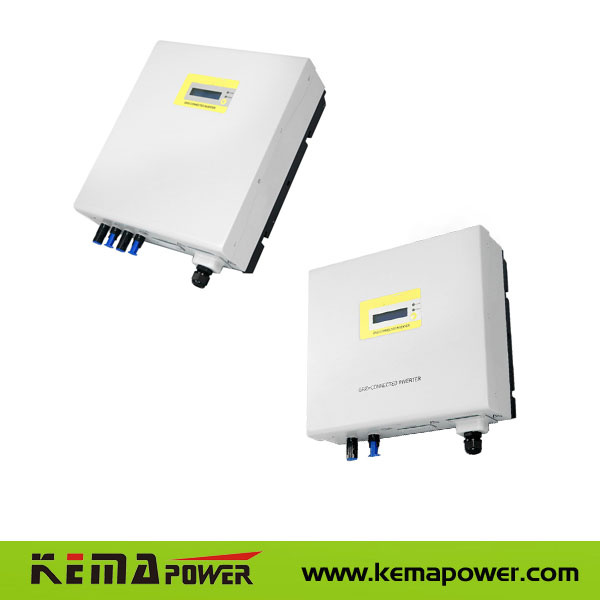

Sp 3000t Singel Phase on Grid Inverter

Name: Sp 3000t Singel Phase on Grid Inverter
Brand: all-electronics-online.com
SKU: 831151835
Availability: InStock
Rating: 4.8 (29 reviews)

Price:	US $ 313.43-344.78/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SP 3000TL
Number Of Mpp Trackers:	1
Nominal AC Output Voltage:	230VAC
AC Grid Frequency Range:	50±5Hz
Power Factor (Cosφ):	>0.99
Product Name:	Sp 3000t Singel Phase on Grid Inverter

Product Description

SP 3000TL Singel Phase on Grid Inverter

Keyfeatures:

1.On Grid string inverters 1.5KW to 6.0KW

2.Wide PV input voltage range

3.Rapid MPPT tracking technology

4.Transformerless design with higher operation efficiency

5.Easy and affordable to install

6.Lightweight and compact size

7.Firm IP65 inverter enclosure allows outdoor application

8.LCD and LED display

9.RS232 serial communications

10.Optional:RS485 communications

11.Optinal:Internal DC Switch

Technical Specification

Item	Model	3000TL
DC Input	Max. DC Input Power	3660W
	Max. DC Voltage	150Vdc
	Start Voltage	100~450Vdc
	MPPT Operating Range	1
	Number of Parallel Inputs	1
	Number of MPP Trackers	1
	Max. Input Current	20A
AC Output	Nominal Output Power	3000W
	Max. Output Power	3400W
	Nominal Output Current	13A
	Max. Output Current	15.7A
	Nominal AC Output Voltage	230Vac
	AC Output Voltage Range	190~265Vac
	AC Grid Frequency Range	50±5Hz
	Power Factor (cosφ)	>0.99
	THDI	<3% (at nominal output power)
Efficiency	Max Efficiency	97.20%
	Euro Efficiency	96.40%
	MPPT Efficiency	99.60%
Display	LED	Inverter normal or Fault
Display	LCD	PV input VDC, AMP,W, Inverter output VAC, AMP, W, HZ, Today KWH, Total KWH
System	Operating Temperature	-25°C~+60°C
	Noise (typical)	≤20dB (A)
	Consumption at night	0 W
	Electrical Isolation	Transformerless
	Cooling Concept	Natural Cooling
	Degree of Protection	IP65
	Communication	RS232 (WiFi optional)
	Dimension (WDH mm)	345152385
	Weight (kg)	15
REMARK		AC grid voltage range and frequency range depend on local standards.
REMARK		SP-*TLS, with internal DC Switch
