| Prod Model: |
SP1500-2500W |
| Product Name: |

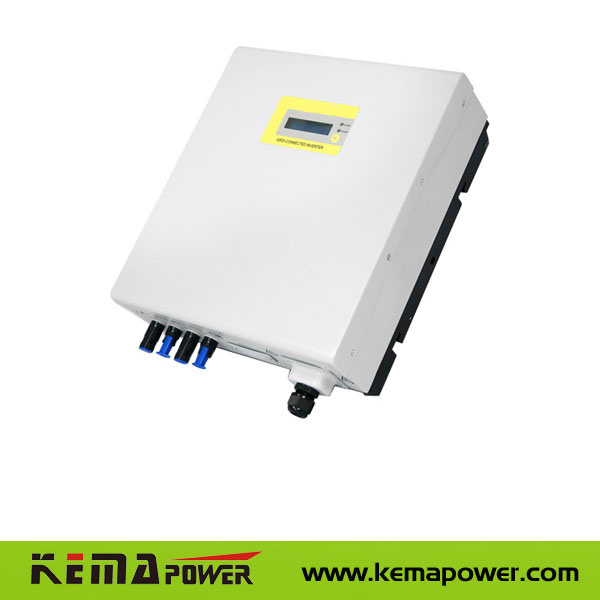

Sp1500-2500W Singel Phase on Grid Inverter |
| Number Of Mpp Trackers: |
1 |
| Nominal AC Output Voltage: |
230VAC |
| AC Grid Frequency Range: |
50±5Hz |
| Power Factor (Cosφ): |
>0.99 |
Product Description
SP1500-2500W Singel Phase On Grid Inverter Key features:1.On Grid string inverters 1.5KW to 6.0KW
2.Wide PV input voltage range
3.Rapid MPPT tracking technology
4.Transformerless design with higher operation efficiency
5.Easy and affordable to install
6.Lightweight and compact size
7.Firm IP65 inverter enclosure allows outdoor application
8.LCD and LED display
9.RS232 serial communications
10.Optional:RS485 communications
11.Optinal:Internal DC Switch
Technical Specification | Item | Model | 1500TL | 2000TL | 2500TL |
| DC Input | Max. DC Input Power | 1750W | 2300W | 2700W |
| Max. DC Voltage | 450Vdc | 500Vdc |
| Start Voltage | 150Vdc |
| MPPT Operating Range | 100~450Vdc |
| Number of Parallel Inputs | 1 | 2 |
| Number of MPP Trackers | 1 |
| Max. Input Current | 10A | 13A | 14.5A |
| AC Output | Nominal Output Power | 1500W | 2000W | 2490W |
| Max. Output Power | 1650W | 2200W | 2490W |
| Nominal Output Current | 6.5A | 8.7A | 10.8A |
| Max. Output Current | 7.9A | 10.5A | 12A |
| Nominal AC Output Voltage | 230Vac |
| AC Output Voltage Range | 190~265Vac |
| AC Grid Frequency Range | 50±5Hz |
| Power Factor (cosφ) | >0.99 |
| THDI | <3% (at nominal output power) |
| Efficiency | Max Efficiency | 96.50% | 97.00% | 97.10% |
| Euro Efficiency | 95.50% | 96.20% | 96.30% |
| MPPT Efficiency | 99.60% | 99.60% | 99.60% |
| Display | LED | Inverter normal or Fault |
| LCD | PV input VDC, AMP,W, Inverter output VAC, AMP, W, HZ, Today KWH, Total KWH |
| System | Operating Temperature | -25°C~+60°C |
| Noise (typical) | ≤20dB (A) |
| Consumption at night | 0 W |
| Electrical Isolation | Transformerless |
| Cooling Concept | Natural Cooling |
| Degree of Protection | IP65 |
| Communication | RS232 (WiFi optional) |
| Dimension (W*D*H mm) | 345*152*315 | 345*152*355 |
| Weight (kg) | 12 | 13 | 13 |
| REMARK | AC grid voltage range and frequency range depend on local standards. |
| SP-*TLS, with internal DC Switch |
