St 17000tl Three Phase on Grid Inverter

Name: St 17000tl Three Phase on Grid Inverter
Brand: all-electronics-online.com
SKU: 831161845
Availability: InStock
Rating: 4.5 (130 reviews)

Price:	US $ 1175.37-1292.91/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ST 17000TL
Number Of MPPT Trackers:	2
Nominal AC Output Voltage:	400VAC
AC Grid Frequency Range:	50/60±5Hz
Power Factor (Cosφ):	0.9 (Leading)~0.9 (Lagging)
Product Name:	St 17000tl Three Phase on Grid Inverter

Product Description

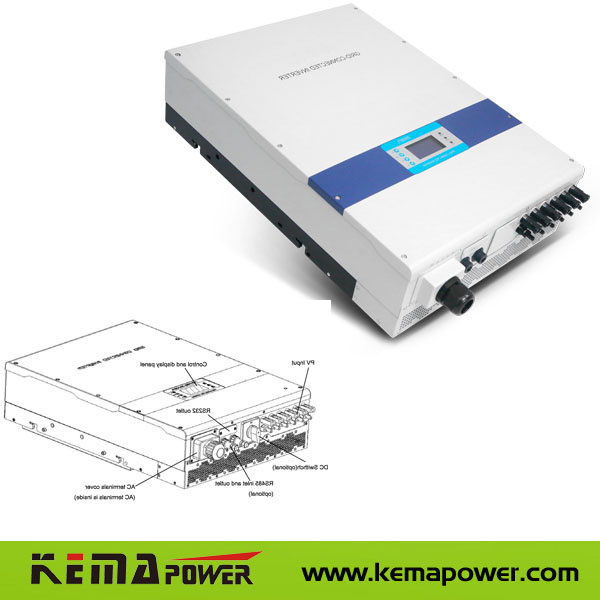

ST 17000TL Three Phase on Grid Inverter

Key features:

1.On Grid string inverters 5.0KW to 30.0KW

2.Wide PV input voltage range allows more flexible module selections

3.Transformerless design with higher operation efficiency

4.Easy and affordable to install

5.Lightweight and compact size

6.Firm IP65 inverter enclosure allows outdoor application

7.LCD and LED display

8.integrated RS485/RS232 serial communications

9.Full data display and communications

10.PC software for remote monitoring and system troubleshooting

Technical Specification

Item	Model (ST)	17000TL
Input (DC side)	Max. DC Input Power	17900W
	Max DC Voltage	1000Vdc
	Start Voltage	250Vdc
	MPPT Operating Range	250~800Vdc
	Number of Inputs	6
	Number of MPPT Trackers	2
	Max. Input Power per MPPT	9500W
	Max Input Current	64A
Output (AC side)	Nominal Output Power	17000W
	Max Output Power	17000W
	Rated Output Current	24.6A
	Max. Output Current	27.5A
	Nominal Output Voltage	400Vac
	Output Voltage Range	330~480Vac
	Grid Frequency Range	50/60±5Hz
	Power Factor	0.9 (leading)~0.9 (lagging)
	THDI	<3% (at nominal output power)
Efficiency	Max Efficiency	98.2C0%
	Euro Efficiency	97.60%
	MPPT Efficiency	99.60%
System	Operation Temperature	-25°C~+60°C
	Noise	≤50dB (A)
	Consumption at night	0W
	Electrical Isolation	Transformerl ess
	Cooling Concept	Fan Cooling
	Degree of Protection	IP65
	Communication	RS485/RS232 (WiFi optional)
	Dimension (WDH mm)	470165670
	Weight (kg)	50
Remark		AC grid voltage range and frequency range depend on local standards.
