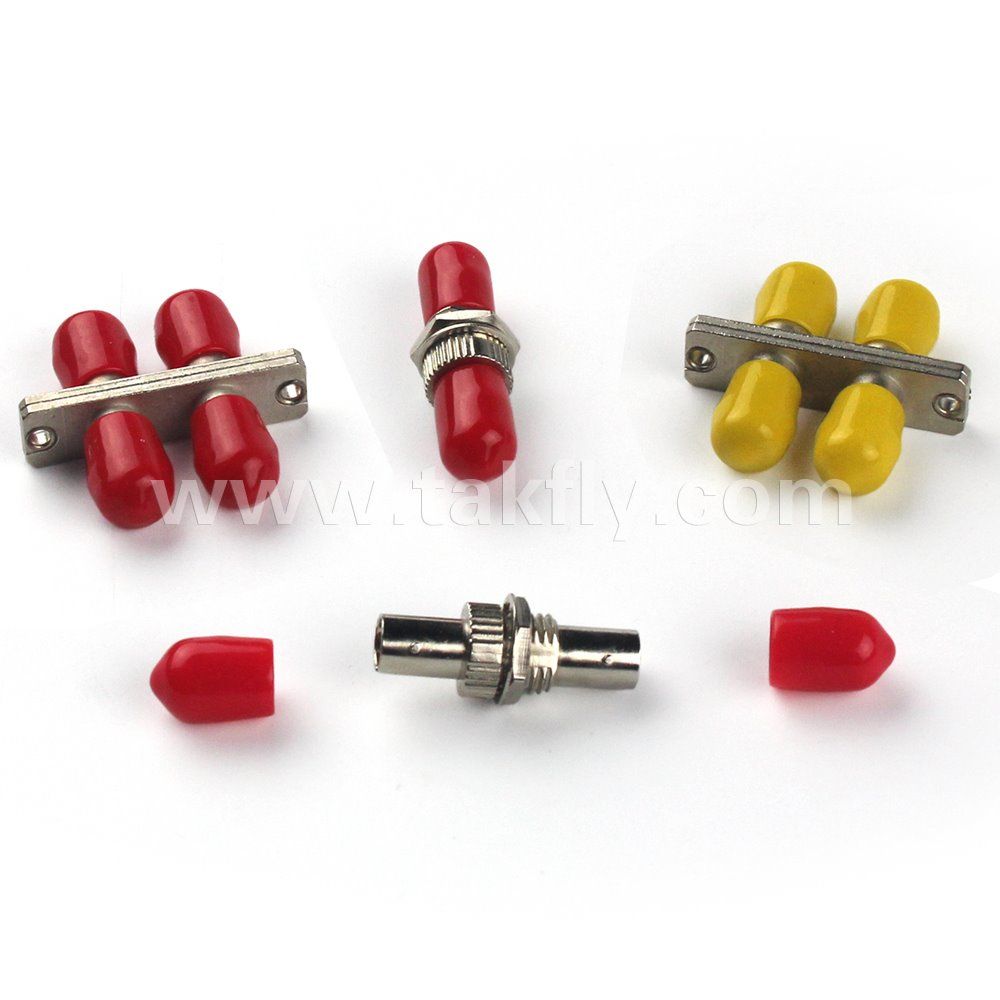

St Adapter High Performance Duplex St Fiber Optic Adaptor

Name: St Adapter High Performance Duplex St Fiber Optic Adaptor
Brand: all-electronics-online.com
SKU: 695182272
Availability: InStock
Rating: 5 (48 reviews)

Price:	US $ 0.13/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Adaptor
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Adaptor Material:	Zinc Alloy with Nickel Plating
Split Sleeve Material:	Zirconia Ceramic
Capillary Diameter Tolerance (Single Mod:	126
Capillary Diameter Tolerance (Multimode):	127
Operating Temperature:	-40 to +75
Storage Temperature:	-40 to +85
Mating Durability:	>500 Mating Cycles
Transmission Medium:	Single-Mode
Structure:	ST
Number Of Cores:	Multi-Core
Ferrule Endface:	PC(',UPC)

Product Description

High Performance Metal housing Multi mode ST fiber optic adapter

1. Details:

ST fiber adapter
An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
ST fiber optic adapters are all threaded type, single mode ones are with zirconia sleeve and multimode ones are with bronze sleeve.

2. Features:
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
PC, APC, UPC optional
Simplex / Duplex

3. Application:
Local Area Network
CATV System
Telecommunication Networks
Equipment Test

Parameter	Unit	LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU				MTRJ			E2000
		SM			MM	SM		MM	SM
		PC	UPC	APC	PC	PC	UPC	PC	PC	APC
Insertion Loss (Typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.3
Return Loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥35	≥55	≥75
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Repeatability	dB	≤0.2				≤0.2			≤0.2
Durability	Time	>1000				>1000			>1000
Operating Temperature	degree	-40~75				-40~75			-40~75
Storage Temperature	degree	-45~85				-45~85			-45~85
