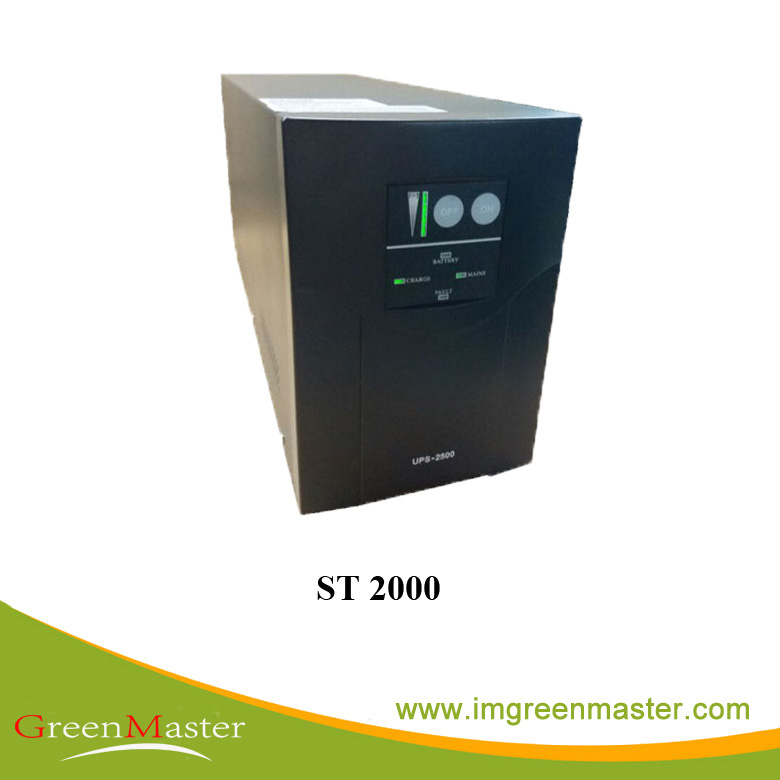

St2000 Line Interactive UPS

Name: St2000 Line Interactive UPS
Brand: all-electronics-online.com
SKU: 839281845
Availability: InStock
Rating: 5 (126 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ST2000
Input:	110V or 220V +- 20%
Output;:	110V or 220V+ - 10%
Wave Form:	Transfer Time Less Than 10ms.
Output PF:	0.6
Phase:	Single Phase
Type:	Line Interactive
Protection:	Short Circuit
Classification:	UPS
Brand:	Greenmaster

Product Description

ST2000 Line Interactive UPS

* I/P: 220VAC or 110VAC , O/P:220VAC or 110VAC ± 10%

* Line interactive UPS with Super-long backup time

* Transfer Time:4-6ms normal ,max 10 ms

* DC Voltage:24VDC

* Bat. 2*9AH,2*12AH,4*7.2AH or 4*9AH for choice

Key features:

1.Line-interactive UPS with super-long backup time

2.wide input range with AVR function

3.Protection for short circuit, overload and battery low voltage

4.LED indication and audible alarm function

5.Intelligent battery management

6.with cold start function

7.with AUTO restart function

8.Automatic battery charging while UPS off mode ( Option)

9.RJ11/RJ45 is option

Technical Specifications

ITEM	MODEL	ST2000-209	ST2000-212	ST2000-407	ST2000-409
Capacity	Output power	2000VA/1200W	2000VA//1200W	2000VA//1200W	2000VA//1200W
Input	Voltage range	165~275VAC +/-5V
Input	Frequency	50Hz/60Hz
Output	Voltage	220VAC +/-10% under AC Mode , 220VAC +/-5% under DC Mode
	Frequency	50 or 60 ± 6Hz, (battery mode)
	Transfer time	Max <10Ms, Normal 4-6Ms
	Waveform	Sine wave in the mains while square wave in the battery
Battery	Type	Sealed lead acid, maintenance free
	DC voltage	24VDC
	Battery number	2*9AH/12VDC	2*12AH/12DC	4*7AH/12VDC	4*9AH/12VDC
	Full load backup time	around 1.3Mins	around 2.7Mins	around 4.5Mins	around 5.5Mins
	50% load backup time	> 3Mins	>6 Mins	> 10Mins	> 12Mins
	Recharge	After fully discharged,8 hours to 90% capacity
Protecting	overload	Fuse & current limited when overloaded
	Battery low voltage	yes. 20VDC
	Short circuit	Fuse & current limited
	Restart	Auto restart when AC recovery.
Alarm	Battery back-up	Sounding every 4 seconds
	Battery low	Sounding every 1 second
	Overload	Shutdown at once
Indicator	LED Display	for line on, battery back-up, Charging, Fault
Product size	LWH, mm	350145220mm	465145220mm
Carton	PCS/CTN	1	1	1	1
Net weigh	KG	11kg	13kg	16kg	21kg
Carton size	LWH(mm)	565225325mm ,1PCS/CTN
Carton weight	G.W	11.5Kg	13.5Kg	16.5Kg	21.5Kg
