St5000-30kw Three Phase on Grid Inverter

Name: St5000-30kw Three Phase on Grid Inverter
Brand: all-electronics-online.com
SKU: 839778505
Availability: InStock
Rating: 5 (85 reviews)

Price:	US $ 858-2000/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ST5000-30KW
Product Name:	St5000-30kw Three Phase on Grid Inverter
Number Of MPPT Trackers:	3
Nominal AC Output Voltage:	400VAC
AC Grid Frequency Range:	50/60±5Hz
Power Factor (Cosφ):	0.9 (Leading)~0.9 (Lagging)

Product Description

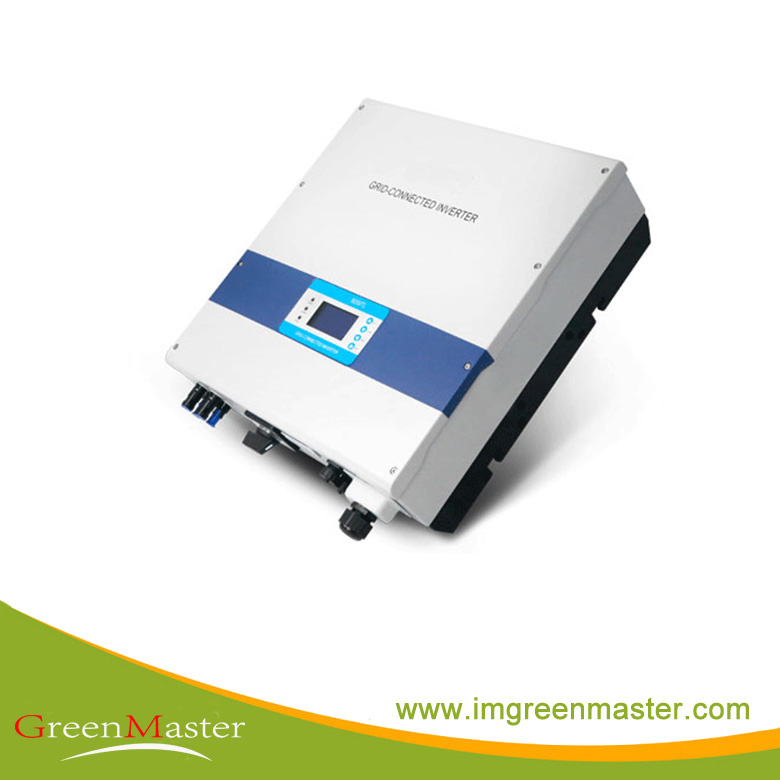

ST5000-30KW Three Phase On Grid Inverter

Keyfeatures:

1.On Grid string inverters 5.0KW to 30.0KW

2.Wide PV input voltage range allows more flexible module selections

3.Transformerless design with higher operation efficiency

4.Easy and affordable to install

5.Lightweight and compact size

6.Firm IP65 inverter enclosure allows outdoor application

7.LCD and LED display

8.Integrated RS485/RS232 serial communications

9.Full data display and communications

10.PC software for remote monitoring and system troubleshooting

Technical Specification

Item	Model (ST)	5000TL	6000TL	8000TL	10000TL	12000TL	15000TL	17000TL	20000TL	30000TL
Input (DC side)	Max. DC Input Power	5180W	6200W	8300W	11200W	13300W	15800W	17900W	21000W	32000W
	Max DC Voltage	900Vdc			1000Vdc
	Start Voltage	250Vdc
	MPPT Operating Range	250~720Vdc			250~800Vdc
	Number of Inputs	2			4		6			10
	Number of MPPT Trackers	2
	Max. Input Power per MPPT	3500W	4000W	5000W	6000W	7000W	8500W	9500W	11000W	16500W
	Max Input Current	20A	24A	32A	44A	48A	60A	64A	70A	82A
Output (AC side)	Nominal Output Power	5000W	6000W	8000W	10000W	12000W	15000W	17000W	20000W	30000W
	Max Output Power	5000W	6000W	8000W	10000W	12000W	15000W	17000W	20000W	30000W
	Rated Output Current	7.3A	8.7A	11.6A	14.5A	17.4A	21.7A	24.6A	29.0A	43.5A
	Max. Output Current	7.9A	9.5A	12.7A	16.0A	19.4A	24.3A	27.5A	32.3A	48A
	Nominal Output Voltage	400Vac
	Output Voltage Range	330~480Vac
	Grid Frequency Range	50/60±5Hz
	Power Factor	0.9 (leading)~0.9 (lagging)
	THDI	<3% (at nominal output power)
Efficiency	Max Efficiency	97.60%	97.80%	98.10%	98.20%	98.20%	98.20%	98.20%	98.20%	98.20%
	Euro Efficiency	96.70%	96.90%	97.30%	97.60%	97.60%	97.60%	97.60%	97.60%	97.80%
	MPPT Efficiency	99.60%	99.60%	99.60%	99.60%	99.60%	99.60%	99.60%	99.60%	99.90%
System	Operation Temperature	-25°C~+60°C
	Noise	≤25dB (A)			≤50dB (A)					≤65dB (A)
	Consumption at night	0W
	Electrical Isolation	Transformerl ess
	Cooling Concept	Natural Cooling			Fan Cooling
	Degree of Protection	IP65
	Communication	RS485/RS232 (WiFi optional)
	Dimension (WDH mm)	470165560			470165585		470165670			580235800
	Weight (kg)	32			35		50			60
Remark		AC grid voltage range and frequency range depend on local standards.
