| Prod Model: |
STP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Volume: |
610*680*1565mm |
| Power Mode: |
Switching Mode |
| Color: |
Gray |
| Output Voltage: |
0-24V |
| Output Current: |
0-5000A,6000A,8000A |
| Feature: |
Low Ripple |
| Control Mode: |
Panel Control |
| Type: |
Aluminum Anodizing Rectifier |
| Waveform: |
Steady Waveform |
| Plating Process: |
Aluminum Anodizing |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
>500W |
| Input Voltage: |
380V |
| Connection Mode: |
Parallel Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Brand: |
Samyang |
Product Description
Why choose us ?
1.Over 23 years electroplating rectifier and telecommunication power supply manufacture in China.
2.5 plating rectifier sole agents in United Kingdom,Poland,South Africa,Thailand,Colombia promised recommend.
3.2008 Olympic Games and 2010 Asia Games appointed power supply supplier.
4.50 peoples development team and strong R&D department.
5.Top 10 plating enterprise in China.
6.ISO9001,SGS,CE certification.
7.Direct factory price.
8.Technology support
9.Strict QC control system.
10.Lowest material cost.

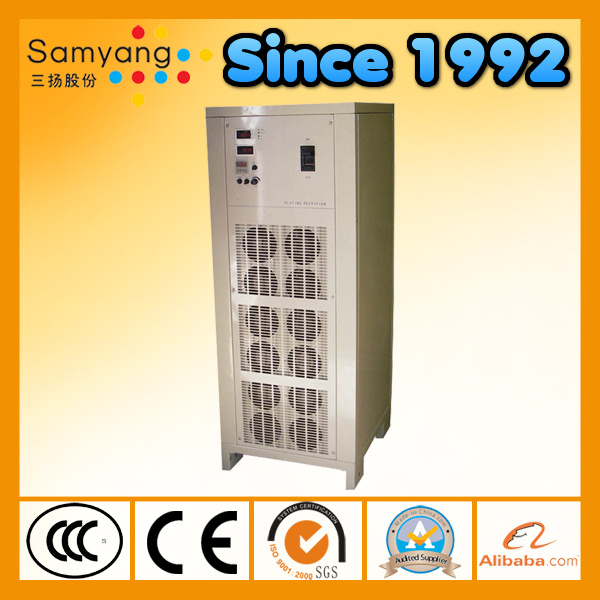

Steady waveform low ripple AC DC switching aluminum anodizing rectifier
Specification:
| Input voltage | 380VAC 350VAC-450VAC (three phase) 50Hz |
| Output Voltage | 0 - 24V continuously adjustable |
| Output Current | 0 - 5000A,6000A,8000A continuously adjustable |
| Output current stability | ≤2% |
| Output voltage stability | ≤1% |
| Efficiency | ≥85% |
| Power factor | ≥0.9 |
| Start-up postponing time | ≤10s |
| Inverting frequency | 18kHz ± 2kHz (800A-1000A) |
| 8kHz ± 2kHz (300A-500A) |
| Current limiting value | Io + 10A - 50A (Io is the rated current) |
| Voltage limiting value | 1.01 - 1.03Vo (Vo is the rated voltage) |
| Cooling mode | air cooling |
| Remote control | Voltage and current display, start/stop,indicator light of protect and power ,
adjustment of output value, CC/CV,timer. |
| Remote control box cable | 10meters (optional) |
| Display | Digital meters or touch screen , Ampere hour meter ,timer alarm ,etc |
| Ripple | ≤3% |
| Modulation mode | PWM control |
| Complete protection functions | over current,over voltage,over heat ,short circuit,phase lack ,input undercurrent
protection,over temperature,diode defect. |
Product features: | 1.high efficiency, high control precision. |
2.High -frequency pulse current output, Suitable for plating small sized
no-ferrous metal and alloy work pieces, it has high enetration ability,
strong adhesive force, and can effectively enhance the brightness of the
plated surface. |
3.Output voltage and current can be adjusted, limiting voltage and current can
be adjusted,greatly enhance application flexibility of the product for users. |
4.With complete protection functions, over current, over heat protection functions.
High power factor, less pollution to the electric network, no interference. |
| Scope of application | It is suitable for aluminum material surface anodizing,several units can use in pallallel under constant current status. |
aluminum anodizing rectifier Product details:
aluminum anodizing rectifier Six advantages:
Function:
Every plating rectifier can add the functions : (timer is our general function so that is for free)
1.PLC (0-10V)
2.RS485
3.Ramp time
4.Adjustable potentiometer
5.Timer
6.Ampere hour meter
Lowest material cost:
All the PCB(main control board, driver card,etc),Transformer, inductor ,radiator are manufactruing by our factory, so we can confirm the lowest material cost and give customer the highest quality and reasonable price.
| Compare with Italy and Taiwan brand: |
| Italy and Taiwan brand | Their plating rectifier is good quality,but their price and spare parts are very very high. |
| Our Samyang brand | Our plating rectifier is high quality,customers can purchase many spare parts from us
with much lower price,that many spare parts are making by ourself and we only sell you
a material cost,so as to support your repair work strongly. |
