Substation Conductor Silicone Rubber Overhead Line Cover

Name: Substation Conductor Silicone Rubber Overhead Line Cover
Brand: all-electronics-online.com
SKU: 698446592
Availability: InStock
Rating: 4.3 (112 reviews)

Price:	US $ 5.2-6.2/Meter
Trade Terms:	FOB,CIF,DAP
Min Order:	100/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RUBNS-OLC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	Manufacturing Silicone Rubber Overhead Line Cover
Sample:	Free
Delivery:	2 Weeks
Voltage:	10kv,35kv,110kv,220kv
Application:	Switch Baseplate
Type:	Insulation Sleeve
Chemistry:	Organic Insulation
Material:	Rubber
Thermal Rating:	250 250
Maximum Voltage:	>100KV
Color:	Yellow/Green/Red/Gray
Brand:	Volsun

Product Description

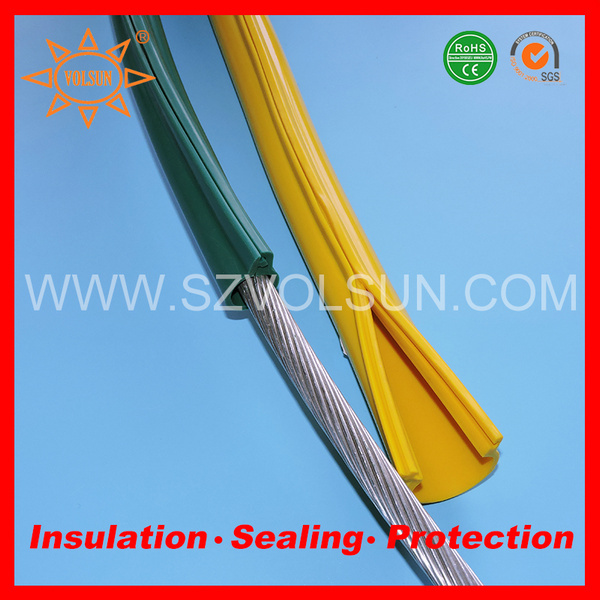

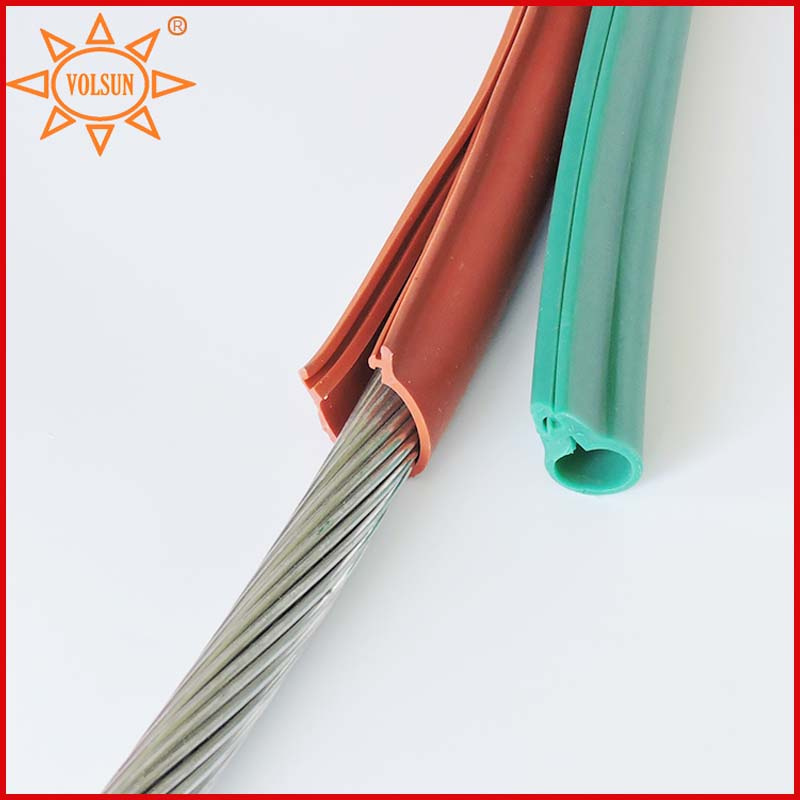

Substation Conductor Silicone Rubber Overhead Line Cover

Description

The innovative product design, ease of installation. Use silicon rubber material, anti-aging, corrosion resistance, with good resistance to corona resistance, high temperature performance, especially suitable for the protection of the bare wire. Widely used in substation protection works and railway catenary system, a significant effect in the cross-lines.

Technical Performance

Serial No.	Properties	Unit	Standard Data	Test Results	Test Methods
1	Electrical Strength Test	KV/mm	≥20	22	GB/T 1408.1-2006
2	Volume Resistivity	Ω.cm	>=1×1014	2×1014	GB/T 1410-2006
3	Dielectric Constant		2-3	2.3	GB/T 1409-2006
4	Shore Hardness		70±5	7.1	GB/T 531
5 5.1 5.2	Mechanical Properties Before ageing Tensile Strength Elongation at break After Heat ageing(180ºC, 7d) Tensile Strength Change Elongation Change	MPa % %	>=4.0 >=200 ±30 ±30	5.5 243 13 -22	GB/T 528
6	Low Temperature Elongation(-15ºC, 2h)	%	>=20	190	GB/T 2951.4-1997
7	Low Temperature Flexibility(-50ºC, 4h)	-	No cracks	No cracks	UL224-2004
8	High Temperature Crack Resistance(155ºC, 2h)	-	No cracks	No cracks	GB/T2951.6-1997

Product Dimension

LJ Stranded Wire Cross-sectional Area(Nominal)	O.D. Of LJ Stranded Wire(mm)	Silicone Rubber Sleeving Covers Models
16 mm²	5.10	10
25 mm²	6.45	10
35 mm²	7.50	10
50 mm²	9.00	12
70 mm²	10.80	12
95 mm²	12.48	17
120 mm²	14.25	17
150 mm²	15.75	20
185 mm²	17.50	20
210 mm²	18.75	24.2
240 mm²	20.00	24.2
300 mm²	22.40	24.2
400 mm²	25.90	30
500 mm²	29.12	32
630 mm²	32.67	35
800 mm²	36.90	39.8

Voltage Ratings/Wall Thickness

Voltage(kV)	≤10kV	≤35kV	≤110kV	≤220kV
Thickness(mm)	2.3mm	2.3-3.0mm	4.0-6.0mm	6.0-8.0mm

Packing

Certification

Company Show

Customers

Trade Show

Volsun Electronics Technology Co., Ltd, founded in 2006, is an innovative company specializing in R&D, manufacture and sale of standard & custom high performance cross-linked materials esp.Heat shrinkable materials for the electronic, electrical, automotive, aerospace, shipbuilding, oil and gas markets in China.

Headquartered in Suzhou, Jiangsu Province, PRC, Volsun has several manufacturing plants equipped with world class manufacturing facilities located in south China and east China to guarantee a sufficient supply to our customers domestically and globally.Supported by our powerful R&D teams and unparalleled rich experience in our products, we thrive on helping our customers make and choose integrated solutions to those challenging problems they face in their fields.

We are specializing in manufacturing different kinds of products, such as PE heat shrinkable tubing, Teflon tubing, Silicone Rubber Tubing, EPDM Tubing, PVC Tubing, Identification Tubing and Finish Cables and Wires etc.

Volsun is more than a supplier of products, it's also a solutions provider.Since its establishment in 2006, with our high performance products, Volsun has been creatively supplying solutions for electrical insulation and mechanical protection for parts, wires, cables and pipes for the electronics, automotive, electrical power, metallurgy, Petrochemical industry markets etc.

Volsun attaches great importance to product quality and consider it the soul of our competitiveness.Most of our products are UL/CSA approved and RoHS compliant.

We will continue to uphold our basic values, I.E.Integrity, Responsibility, Enthusiasm, Innovation, Teamwork, Specialization, Efficiency and Value and struggle for our mission to be a global leader in the industry.
