Surface or Flush Mount 3 Phase Metal Distribution Box

Name: Surface or Flush Mount 3 Phase Metal Distribution Box
Brand: all-electronics-online.com
SKU: 743414135
Availability: InStock
Rating: 4.4 (48 reviews)

Price:	US $ 30-50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	CADB-M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Steel Sheet and Copper Fittings
Protection:	Epoxy Polyester Coating
Standard:	IEC60947-3
Color:	Ral7032 or Ral7035
Type:	Distribution Metering Box
Structure:	Protection
Certification:	CE
Brand:	Chana

Product Description

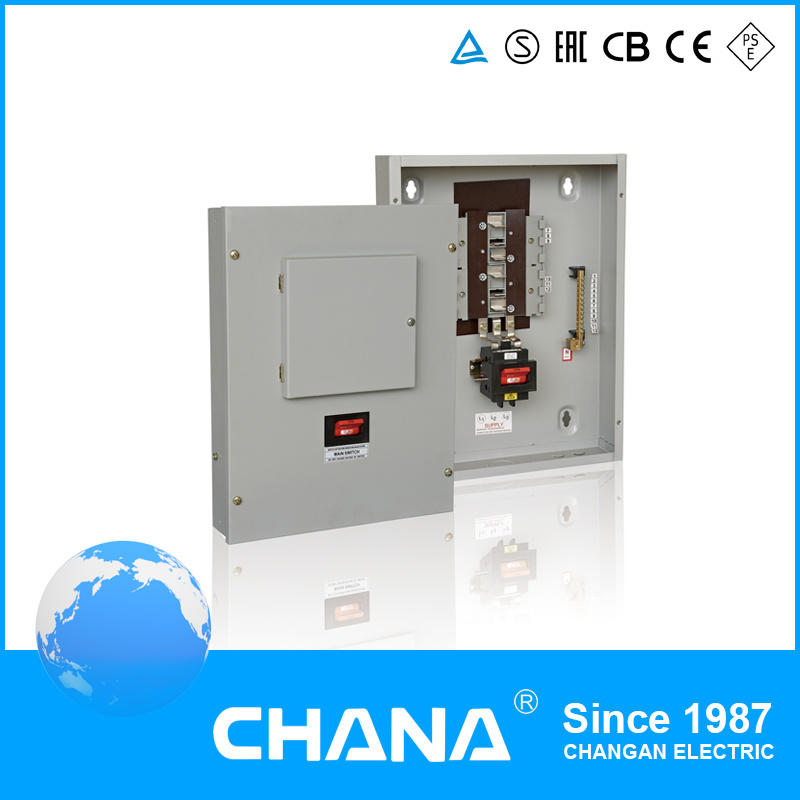

CADB-M Series 3 Phase Distribution Box

Description
CADB-M series 3 phase distribution box is applied to the terminal protection board distribution board, the main switch is 100A-3P is isolating switch, the branch switch is miniature circuit braker.
Steel sheet and copper fitting inside
Protected with epoxy polyester coating
Color: RAL7035 or RAL7035
Standard: IEC 60947-3

Specification Surface-Mounted

Model	Way No.	Dimension (mm)
Model	Way No.	L	W	D
CADB-M-TPN-4-S	4	370	475	115
CADB-M-TPN-6-S	6	370	550	115
CADB-M-TPN-8-S	18	370	625	115
CADB-M-TPN-12-S	12	370	775	115

Specification Flush-Mounted

Model	Way No.	Dimension (mm)
Model	Way No.	L	W	D
CADB-M-TPN-4-F	4	395	500	115
CADB-M-TPN-6-F	6	395	575	115
CADB-M-TPN-8-F	18	395	650	115
CADB-M-TPN-12-F	12	395	800	115

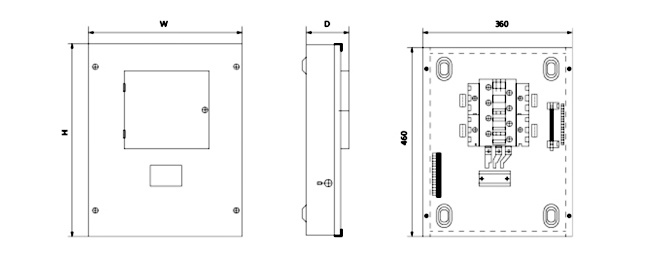

Overall and Installation Dimension
