Tb-35 / Tb35-N AC110V-220V 10A Mechanical Timer Manual /Auto Control Timing Range 24h Time Switch with Battery

Name: Tb-35 / Tb35-N AC110V-220V 10A Mechanical Timer Manual /Auto Control Timing Range 24h Time Switch with Battery
Brand: all-electronics-online.com
SKU: 817091665
Availability: InStock
Rating: 4.9 (141 reviews)

Price:	US $ 6-9/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

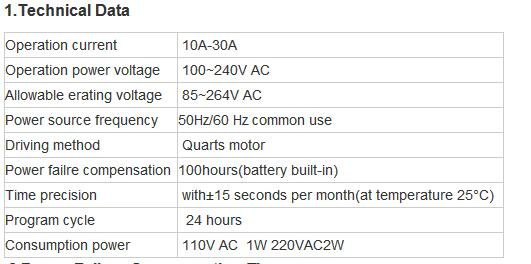

Prod Model:	TB-35
Timing Range:	24h
Coil Voltage:	100~240V AC
Operation Temperature:	-40ºC~+55ºC
Contact Resistance:	≤50mΩ
Electrical Life:	1000000 Times
Storage Battery(Working Reserve):	Time 100h
Min Setting Unit:	15 Minutes
Insulation Resistance:	≥100Ω

Product Description

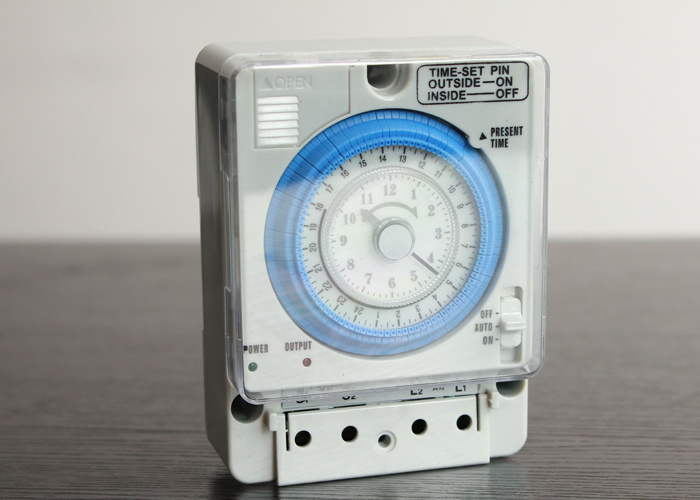

TB-35 / TB35-N AC110V-220V 10A mechanical timer Manual /Auto Control Timing Range 24h time switch with Battery

2.Power Failure Compensating Time

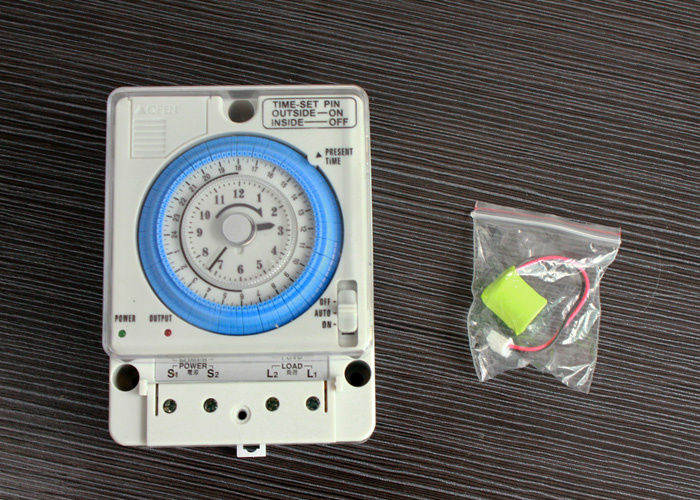

This time switch is equipped with a built-in battery to work in service interruption.

1. When turned on the time switch, the battery is to be charged automatically.

2. The battery is charged fully to be able to compensate power failure for 300 hours when supplied power

3. days in succession.

4. Frequent power failure and service interruption for a long time will shorten the life span of the storage battery.

3.Replacement

The life span of the battery is about 5 years. However, the hotter the service temperature, the shorter the life.
