Tb Series Low Frequency Online UPS (TB10K-30K)

Prod Model:	TB10KW-30KW
Size:	700*365*950-780*580*1170
Phase:	Single Phase
Type:	On-line
Protection:	Short Circuit
Classification:	Power
Brand:	Greenmaster

Product Description

TB Series Low Frequency Online UPS(TB10K-30K)

1. Three phase in, one phase out

2. Microprocessor control

3.100% unbalance protection design

4. True on-line double conversion design providing all power protection

5. Isolated output

6. Sine wave pulse width modulation

7. IGBT inverter design.

8. Wide Input voltage windows

9. Pure sine wave output less than 3% THD

10. Expandable battery run time

11. Generator compatible

12. Cold start

13. Load/Battery power meter display

14. Overload, on-line, battery status LED/LCD

15. Advanced Battery Management

16. Automatic charging in UPS off mode

17. Smart RS-232 communication port

18. Optional SNMP card


Capacity:

* TB10kVA/8KW/ 192VDC/6A,

* TB15kVA/12KW/192VDC/6A,

* TB20kVA/16KW/192VDC/6A,

* TB30kVA/24KW/384VDC/20A,

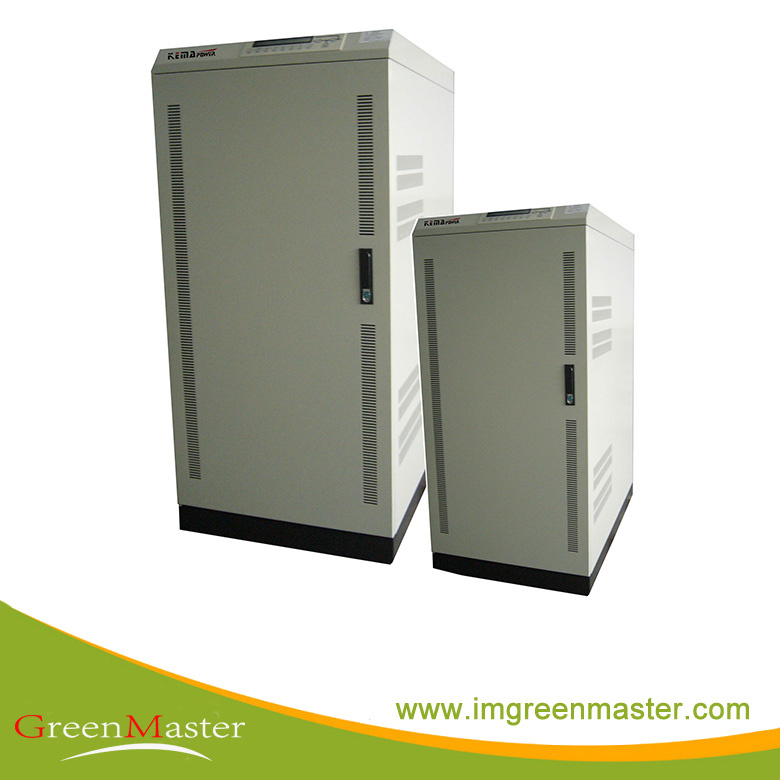

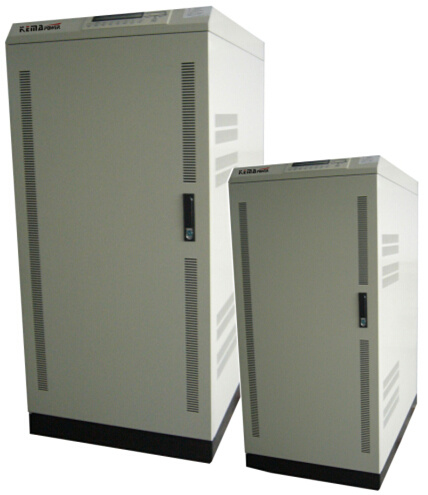

Product Show:




Technical Specifications


MODEL		TB10K	TB15K	TB 20K	TB30K
Power Capacity		10KVA	15KVA	20KVA	30KVA
		8KW	12KW	16KW	24KW
Input	Voltage Range	380V±20%(3 phase) or 205V±20%(3 phase)
	Frequency	50Hz±5% or 60Hz±5%
	Phase	3 Phase + GND
Output	Voltage Range	220V±1% or 110VAC ±1%
	Phase	Single phase + GND
	Frequency	50 (60)Hz ± 0.3%
	Waveform	Pure sine wave
	Overload Capacity	Overload 125% for 10 Mins, 125%-150% for 30s .automatically resume when load become normal
	Power factor	0.8
	THD	< 3%(linear load), < 5%(nonlinear load)
Battery	Battery Type	Sealed lead acid, maintenance free
	DC Voltage	192VDC			384VDC
	Max Charge  Current	10A			6~30A
Efficiency	Whole unit	>85%
Transfer Time		0ms
Panel Indication	LCD	Input,oupt,battery voltage,frequency,load rate,UPS state, temperature
	LED	Main input , bypass,Inverter,Battery,Over load,Fault
Environment	Temperature	0~40ºC
	Humidity	0~95%(non condensing)
	Noise	<58dB(1m)
Communication	Interface	RS232
	Software	1.Power status 2.UPS shutdown 3.Monitor UPS status 4.UPS self test 5.Auto-save files
Product size(mm)		700*365*950			780*580*1170
product weight(Kg)		88	155	155	300
Package size(mm)		780*430*1110			945*745*1395
Package weight(Kg)		98	165	165	350

Trade Show:



Certification:
