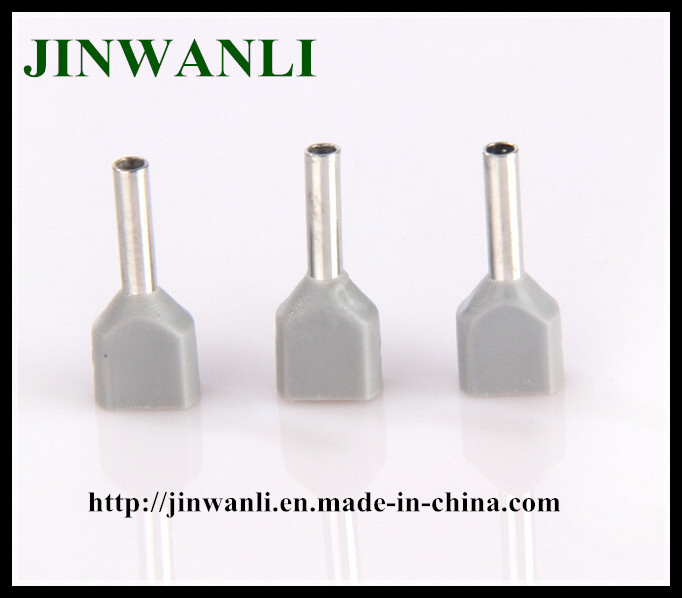

Te Crewel Tube Insulated Terminal Gray Color

Name: Te Crewel Tube Insulated Terminal Gray Color
Brand: all-electronics-online.com
SKU: 764399315
Availability: InStock
Rating: 4.3 (139 reviews)

Price:	US $ 0.12/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Wer Supply
Environmental Protection:	Resistance to Environmental
Connection Mode:	Push-Pull Connection
Shape:	Round
Brand:	Jwl

Product Description

Crewel tube pre-insulation terminal,cold- press terminal TE copper tube type terminal;

Specifications
1.Made by high copper
2.Tin plating:Corrosion Resistance
3.Certificate:ISO9001 SGS CE CQC
4.Color: Yellow Red Blue and so on
5.Type: TE
6.Thickness:0.7mm 0.8mm 1.0mm

Used field: Communication equipment, electronic instrument, meter, medical appliance, automobile, household appliances, electronic toy etc.

Margin temperature 105 Ui=300V Material Copper
ITEM NO	CONDUCTOR	Dimension (mm)						Color
ITEM NO	CONDUCTOR	F	L	W	B	DΦ	CΦ	Germany	France
TE 0508	2 x 0.5	8	14.5	5	6.5	1.8	1.5	orange	white
TE 7508	2 x 0.75	8	14.7	5.5	6.7	2.1	1.8		blue
TE 7510	3 x 0.75	10	16.7	5.5	6.7	2.1	1.8	white	blue
TE 1008	2 x 1.0	8	15.1	5.5	7.1	2.3	2	yellow	red
TE 1010	2 x 1.0	10	17.1	5.5	7.1	2.3	2	yellow	red
TE 1508	2 x 1.5	8	15.5	6.4	7.2	2.6	2.3	red	black
TE 1512	2 x 1.5	12	19.5	6.4	7.2	2.6	2.3
TE 1513	2 x 1.5	13	20.5	6.4	7.2	2.6	2.3
TE 2508	2 x 2.5	8	16.5	8	8.5	3.3	2.9
TE 2510	2 x 2.5	10	18.5	8	8.5	3.3	2.9	blue	gray
TE 2513	2 x 2.5	13	21.5	8	8.5	3.3	2.9	blue	gray
TE 4012	2 x 4.0	12	23.1	8.8	11.1	4.2	3.8	orange	gray
TE 6014	2 x 6.0	14	26.1	9.5	12.1	5.3	4.9	green	black
TE 10 - 14	2 x 10.0	14	26.6	12.6	12	6.9	6.5	brown	ivory
TE 16 -14	2 x 16.0	14	31.3	19	17.3	8.7	8.3	ivory	gree

Withstand Voltage:105ºC Ui=300V

crewel tube insulated terminal

Material	Copper
Plating	Tin
Insulation	Nylon
Color	Red, Yellow, Black,Grey, and other can be customized
Working Temp	-40 to +105°C
Cable Range	A.W.G.:22-16 (0.5-1.5mm²),16-14(1.5-2.5mm²), 14-12(2.5-4mm²), 12-10(4-6mm²)
MOQ	Small orders accepted
Payment Term	A.L/C,T/T (Bank Transfer, Wire Transfer)
	B.Western Union
	C.Paypal (For samples fee & Courier cost)
	Terms of Payment: FOB Shanghai / Ningbo;CIF;CNF;etc
Delivery Time	A.By Courier: 4-7 Working days by special offer
	B.By Air: 7 Working days at appointed airport
	C.By Sea: 20-25 Working days at appointed port
Supply Ability	2 x 20 feet containers per week
Packaging Details	A.Common Packing:100pcs + polybag + label + inner box+ export carton
Packaging Details	B.Customized Packing:OEM Label,Inner Box,Blister,etc
HS Code	8536900000
Origin Country	Zhejiang, China
Test Report	REACH, ROHS.

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
