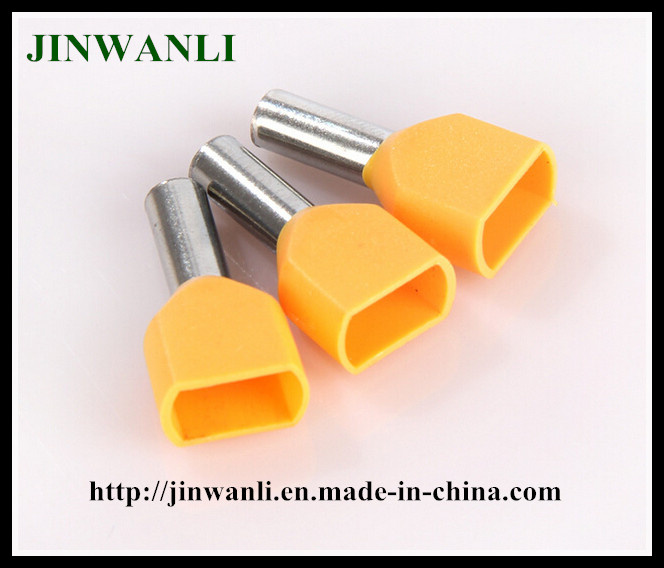

Te0508 Insulated Twin Cord End Terminal

Name: Te0508 Insulated Twin Cord End Terminal
Brand: all-electronics-online.com
SKU: 713379335
Availability: InStock
Rating: 4.5 (90 reviews)

Price:	US $ 0.01/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Te0508
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Wer Supply
Environmental Protection:	Resistance to Environmental
Connection Mode:	Push-Pull Connection
Contact Termination Form:	Welding Connection

Product Description

Specifications
Cord end terminal
1. Certifications: CE, SGS, ISO9001: 2008
2. Material: RoHS approved copper, PP Insulation.
3. Plating: Tin plasted
4. Sleeve: PVC, nylon

Packaging Detail: 1000PCS per polybag, each bag per paper box

Delivery Detail Within 15days
FOB Port Shanghai/Ningbo

ITEM NO	CONDUCTOR	Dimension (mm)
		F	L	W	B	DΦ	CΦ
TE 0508	2 x 0.5	8	14.5	8	6.5	1.8	1.5
TE 7508	2 x 0.75	8	14.7	8	6.7	2.1	1.8
TE 7510	2 x 0.75	10	16.7	10	6.7	2.1	1.8
TE 1008	2 x 1.0	8	15.1	8	7.1	2.3	2.0
TE 1010	2 x 1.0	10	17.1	10	7.1	2.3	2.0
TE 1508	2 x 1.5	8	15.5	8	7.2	2.6	2.3
TE 1512	2 x 1.5	12	19.5	12	7.5	2.6	2.3
TE 2510	2 x 2.5	10	18.5	10	8.5	3.3	2.9
TE 2513	2 x 2.5	13	21.5	13	8.5	3.3	2.9
TE 4012	2 x 4.0	12	23.1	12	11.1	4.2	3.8
TE 6014	2 x 6.0	14	26.1	14	12.1	5.3	4.9
TE 10 - 14	2 x 10.0	14	26.6	14	12.0	6.9	6.5
TE 16 -14	2 x 16.0	14	31.3	8.9	17.3	8.7	8.3

twin cord end terminal ,twin cord end terminal ,twin cord end terminal ,twin cord end terminal ,twin cord end terminal twin cord end

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
