Telecom GYFTY 24 Core Singel Mode Fiber Optic Cable

Prod Model:	GYFTY fiber optic cable
Outer Sheath Color:	Black
Central Stranding Member:	Steel Wire or FRP
Installation Style:	Aerial
Waterblocking Material:	Water Blocking Tape or Filling Compound
Brand Name Of Fiber:	Corning, Yofc, Draka, Fujikura or as Your Requiermt
Second Armour Material:	Corrugated Aluminium Tape
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001

Product Description

GYFTY FRP 12 Core Optic Fiber Cable Details:

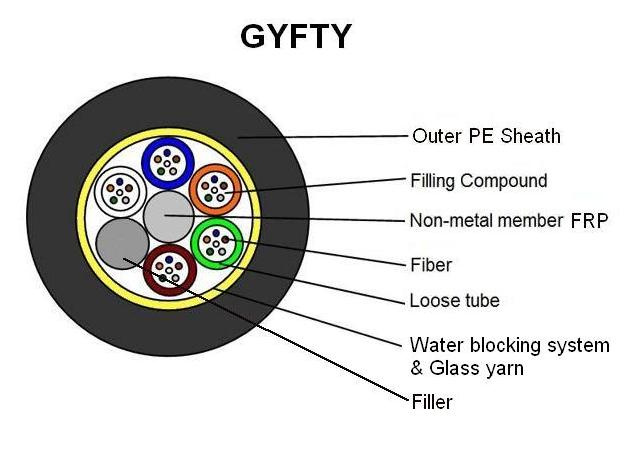

GYFTY Optic Fiber Cable Structure characters:
Non-metallic strengthen member
Reinforced with glass or aramid yarn
PE outer sheath
We  can design any kind of structures according to enviromental condition and transmission capacity, such as GYFTA, GYFXTY, GYFDTZA etc.




GYFTY Optic Fiber Cable Properties:
Non-metallic structure providing excellent anti-electromagnetism
Anti-thunder and anti-static performances.


GYFTY Optic Fiber Cable Applicable Fields:
1.Long distance telecom, LAN in high voltage area or access to telecom network;
2.For power transmission system, much thunder areas and high electro-magnetic inerference.


GYFTY Optic Fiber Cable Technical data:

Technical data:
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Min.Bending radius(mm)		Tension (N)		Crash loading (N/100mm)
			Static	Dynamic	Short term	Long term	Short term	Long term
2-36	10.4	90	10 times O.D.	20 times O.D.	1500	600	1000	300
38-60	10.2	110
62-72	11.7	115
74-96	13.4	150
98-120	15.0	190
122-144	16.6	230
146-216	16.9	240
218-240	19.3	305
242-288	21.5	375

GYFTY Optic Fiber Cable Packaging Detail:
GYFTY Optic Fiber Cable package are  wooden drum, 3-4KM per drum. We also accept custom cabledrum from customers.

Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.

Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate





As professioanl manufacturer on optical fibre cables, we can not only offer you optical fibre cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.
