| Prod Model: |
T-921 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Temperature: |
-40~ 85 Degrees Celsius |
| COM Port: |
2, RS232 or RS485 |
| Ethernet: |
1 |
| Mount: |
Standard Rail or Bolts |
| Power: |
AC 85-265V or DC 9-36V |
| Dimension: |
169X134X63mm |
| Weight: |
0.5kg |
| Warranty: |
3 Years |
| I/O: |
19di, 16do |
| Application: |
Air-Conditioner |
| Certification: |
CE |
| Type: |
Controller |
| Universal: |
Can Customized |
| Voltage: |
220VAC or 9-36VDC |
| Battery Type: |
Li-Battery |
Product Description

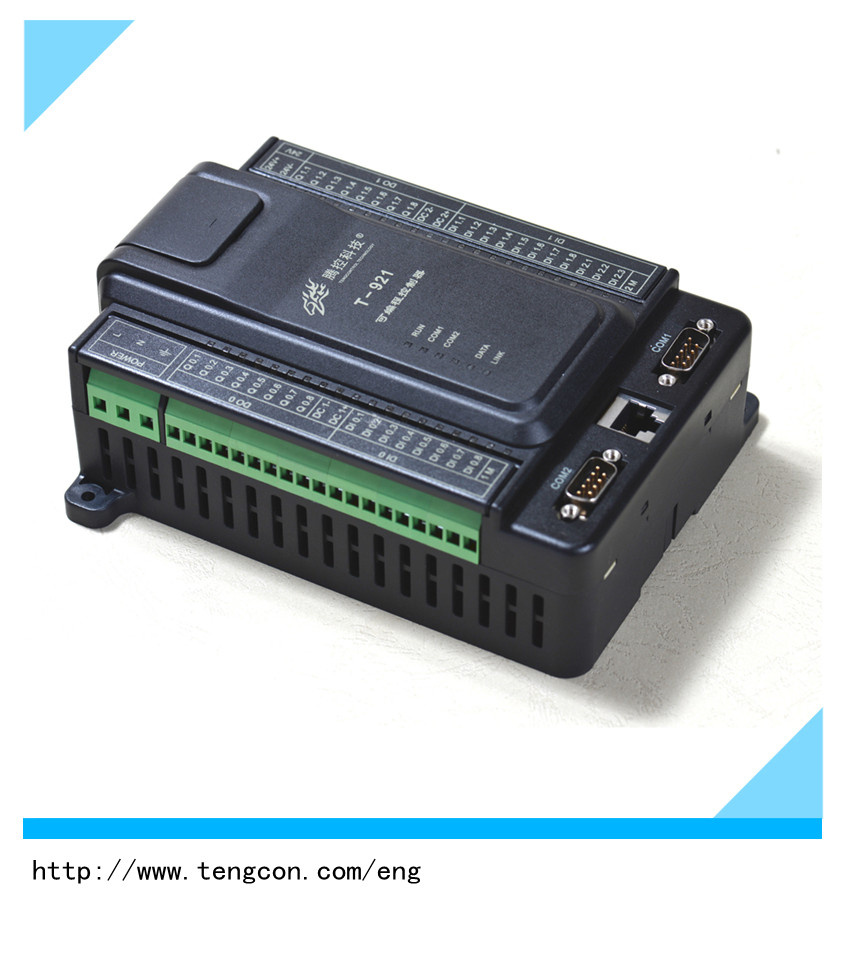

Tengcon PLC Controller T-921 with Transistor Output
Specifications
1.Integrated Automation PLC
2.Temperature Range: -40~85 degree celsius
3.CE & FCC Certification
4.Customizable,OEM&ODM
TENGCON T-921 digital programmable controller
T-921 Programmable Controller is a product of TengCon Company's T-900 series PLC,It combines and ARM industrial CPU with a maximum frequency of 72MHZ, And extended 32M SDRAM and a 4M FLASH,and embedded operating system,a 2M user program memory and a 2M user data memory.Programming the T-921 on KW Multiprog programming system and communicate via a Ethernet cable make user's programming very easy.Furthermore,T-921 also provide 2 RS232, or Rs485 interface .It provide the following input and output:19 digital inputs,16 digital outputs,2 high-speed impulse counters,2 high-speed impulse output and a 24VDC power supply.
TengCon T-9 series PLC have passed CE&FCC Certification.
Product Description
Main Feature :
Operating Temperature Range -40~85 degrees celsius
19-point isolated digit input , 1 point high speed counter
16-point transistor output, 7-40V voltage,0.5A current,2 point high speed counter output
1 port 10M/100M Ethernet, self-adaptive, MODBUS TCP, IEC61131-3
2 RS485 or RS232 ports , MOBUS RTU , 300-38400bps
IEC61131-3 supported (IL,ST,LD,FBD,SFC)
AC(85-265V) or DC 24V power supplies
169x134x63 (mm) size
Technical Specification:( TENGCON T-921 digital programmbale controller )
Model Number |
TENGCON T-921 (19DI,16DO) digital programmable controller |
Physical Feature |
Dimension |
169 x 134 x 63 mm (W x H x D) |
Weight |
0.5 Kg |
Mount |
Standard rail or bolts |
Working Temperature |
From -40ºC to 85 ºC |
I/O Feature |
Built-in digital inputs |
19 (Optical coupling isolated input ,1 of them can be used as high -speed counters) |
Built-in digital outputs |
16 (Transistor output) |
Built-in high speed impulse counters |
1 (100KHz impulse counting) |
Built-in high-speed pulse output |
2 (100KHz impulse output) |
I/O state indicators |
44 pcs. |
Power Supply and power output |
Power Supply |
Rated Voltage |
220V AC or 24V DC |
Range |
From 90V AC to 250V AC, 50Hz, or 24V DC |
Isolated power output |
Rated voltage |
24VDC |
Rated current |
0.2A |
Output resistance |
About 20 Ohm |
Terminals |
VOUT(24V+, 24V-) |
Communication |
Ethernet |
1 port (RJ45, 10M/100M adaptive,MODBUS TCP protocol) |
RS232 |
1 port (COM0, for internal test) |
RS232/485 |
2 port
l COM2, DB9 RS232 direct connect
l COM1, DB9 RS485(pin 2 is B, pin 3 is A)
Default settings: MODBUS RTU Slave, Bode rate 19200,1,8,E, address 1 |
DIP |
8-bits
Set DIP ON will force the IP address to the default
192.168.1.99 |
Run/stop switch |
2 switches
run/stop(in stop mode, only PLC program stopped) |
Communication indicator |
6 pcs.
l RUN indicator(flashing)
l COM1 COM2serial port communication indicator(flashing when communicating)
l LINK Ethernet linking indicator
DATA Ethernet communicating indicator |
Memory |
User program memory size |
2M Byte |
User data memory size |
2M Byte |
Back-up battery data memory |
1K Byte |
Data back-up time |
1 year |
CPU feature |
CPU frequency |
48 MHz |
Max. 72 MHz |
Minimum instruction processing time |
10 millisecond |
|
INT and Bit operation |
From 1 to 4 microsecond |
|
Floating-point algorithm |
About 40 microsecond |
|
10ms timer quantity |
No limit |
|
Clock |
Internal clock |
Back-up battery |
Order Requirements:
Please confirm and choose the following information when you are ready to place order :
Working Power Supply |
220V AC 50HZ |
Please confirm which one |
9-36V DC |
DI Voltage |
24V/DC |
|
Communication |
1 RS485 port,1RS232 port (default setting) |
Please confirm which one
|
2 RS485 port |
Quantity | |
