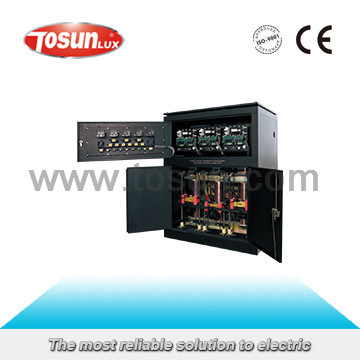

Three Phase Compensated Voltage Stabilizer

Name: Three Phase Compensated Voltage Stabilizer
Brand: all-electronics-online.com
SKU: 755194605
Availability: InStock
Rating: 4.5 (50 reviews)

Price:	US $ 1800-29800/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SBW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Efficiency:	It Is Better Than 98% If Operates with Normal Powe
Additional Waveform Distortion Of Output:	Voltage: <1%
Current Type:	AC
Phase:	Three Phase
Frequency:	50/60Hz
Brand:	Tosunlux

Product Description

Application
SBW Three Phase Compensated Voltage Stabilizer is a contact adjustable automatic voltage compensation high-power regulating power device. When volatge from supply network is varied or due to loading current effect, it automatically regulates the output voltage to ensure the normal function of the variesd of electric equipments.
Whole power-supply of small plant.
Power-supply of workshop or department of large, medium industrial or mining enterprises.
Form a complete set with single-machine

Demanded Environment
Ambient temperature of use: 0ºC-40ºC
Ambient temperature of storage and transport: -40ºC-60ºC
Relative humidity: <90%
Without corrosive, flammable and explodable and other conductive gas which might influence insulation of voltage regulator.

Features
Input: three phase and four-line system
Voltage: 176V-250V Line Voltage: 304V-432V
Output: three phase and four-lines system
Voltage: 210V-230V Line Voltage: 361V-399V
Input & Output terminal(phase line and middle line) can bear sinusoidal voltage with power frequency 50Hz 3000V to machine stand for 1 minute
Efficiency: it is better than 98% if voltage regulator operates with normal power
Additional waveform distortion of output voltage <1%

Output Current

Nominal power(kva)	50	100	150	200	250	300	350
Rated phase current(A)	76	152	228	304	379	455	531

Nominal power(kva)	400	450	500	600	800	1000
Rated phase current(A)	607	682	758	910	1212	1516
