Dongguan Blueuniverse Laser Co., Ltd. >> To18-5.6mm Sharp 638nm 180MW Red Laser Diode

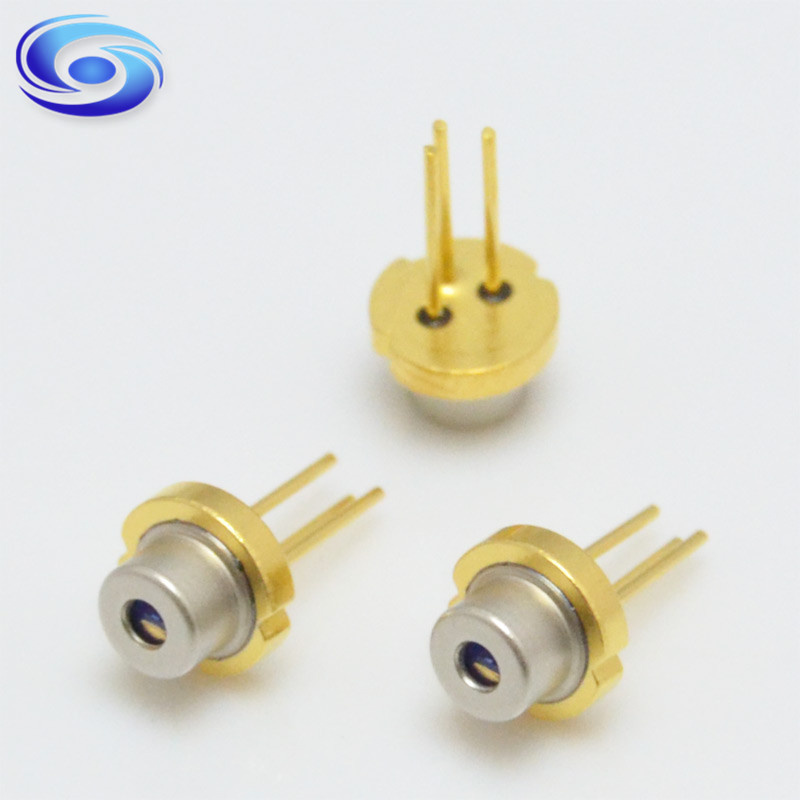

To18-5.6mm Sharp 638nm 180MW Red Laser Diode

To18-5.6mm Sharp 638nm 180MW Red Laser Diode
Price: US $ 13.8-18/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: JLD6317
Wavelength: 635nm
Output Power: 180MW
Color: Red
Operation Current: 320mA
Operation Voltage: 3.2V
Storage Temperature: -40 to +85 Degree
Operation Temperature: -10 to + 40 Degree
Quality: Brand New
Lifetime: 10, 000hours
Price: Lower Price
Manufacturing Technology: Optoelectronic Semiconductor
Material: Element Semiconductor
Type: Intrinsic Semiconductor
Package: To18-5.6mm
Application: Laser Module, Laser Light, Laser Pointer
Model: Jld6317
Brand: 638nm 170MW Laser Diode

Product Description

Specification:
Wavelength: 635nm
Output Power(CW): 180mw
Multi Transverse Mode
Can Type: 5.6mm Floating Mounted


Absolute Maximum Ratings (Tc=25ºC)

Parameter
SymbolValues  Unit
Min.Max.
Operating CurrentIf250320mA
Reverse VoltageVr-2V
Operating Case TemperatureTc-10+40ºC
Storage TemperatureTstg-40+85ºC



Electrical and Optical Characteristics (Tc=25ºC)

Parameter
SymbolMin.Typ.Max.Unit
Optical Output PowerPo-180-mw
Emission Wavelengthλp632638643nm
Threshold CurrentIth-6090mA
Operating CurrentIr-250320mA
Operating VoltageVop-2.83.2V
Beam Divergence (FWHM)Θ//×Θ⊥5×138.5×1813×23deg
Modulation Frequencyf->100-MHz


2.Packing and Delivery for 638nm 180mw laser diode
Packing for 638nm 180mw laser diode:
1.100 pieces/box, 10 boxes /carton.
2. Plastic box package ,TO18-5.6mm package.
3. It based on the laser diode kind, each kind has different size.


Delivery for 635nm 180mw laser diode
delivery time:1~3 days
delivery way:DHL,Fedex,UPS or other way as your demand.

3.Appliceation for 635nm 180mw laser diode(HL63133DG):
Laser Module
Industrial Use
Lase Pointer
Laser light
Laser sight

                                                   Name: Ms.Abby
                                                     Tel: + 86 18692018546

4. FAQ for 635nm 180mw laser diode:
1)Q: Where is your company located? How can I visit there?
  A:Our company is located in Dongguan, China. All our clients, from home or
abroad, are warmly welcome to visit us!

2)Q: Can I order samples of 635nm 180mw laser diode first to test the qualty?
  A: Yes, samples ae in stock for you.

3)Q: How to pay for 638nm 180mw laser diode?
  A: We accept T/T, Paypal, Western union, Moneygram, If you use other
payment terms, please feel free to contact us!

4)Q: Have you other laser diode?
   A: Expect 635nm 180mw laser diode, we offer 405nm  to 980nm laser diode and laser module.
Dongguan Blueuniverse Laser Co., Ltd. Was started in 2006, and established in 2015, the company is located in Dongkeng Town, Dongguan, Guangdong Province. Which is a collection of research, produce, sales photoelectric enterprise. We specialize in semiconductor laser diodes, laser light source, LED light source as the center and we are still continuously researching and developing the laser peripheral areas.

Main products are included below but not limited:

Semiconductor laser diode, laser module, bicycle rear light, head light, bicycle wheel light, laser fog light, laser power bank.

Since 2006, our company has owned a number of excellent engineers, management department and well-trained staff. According to the modern enterprise management, we have perfect quality testing, monitoring, tracking and feedback system and put scientific management into effect. Further more, we also pursue ISO9001 international quality system, according to the international standard management. Our products also have all kinds of export certification and a number of patent.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in sterilization, physical therapy, stage, measurement, advertisement, outdoor ridding and other industries.

We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!

We devote ourselves to developing good quality products, and supplying better products and services. Our strategy for successes is to follow the advanced and the latest technologies all the time and to make contribution to the optical enterprise.
