| Prod Model: |
SU-TM08 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Temperature: |
-20-60 |
| Supply Voltage: |
DC12-24V |
| Output: |
3 Channels |
| Connection Mode: |
Common Anode |
| External Dimension: |
L86 * W86 * H37 Mm |
| Output Current: |
Each Channel 4A |
| Output Power: |
12V<144W,24V<288W |
| Warranty: |
2 Years |
| Brand: |
Sunshine |
| Sample Date: |
3 Days |
| Signal Transmission: |
RF Remote Control |
| Application: |
LED Products |
Product Description

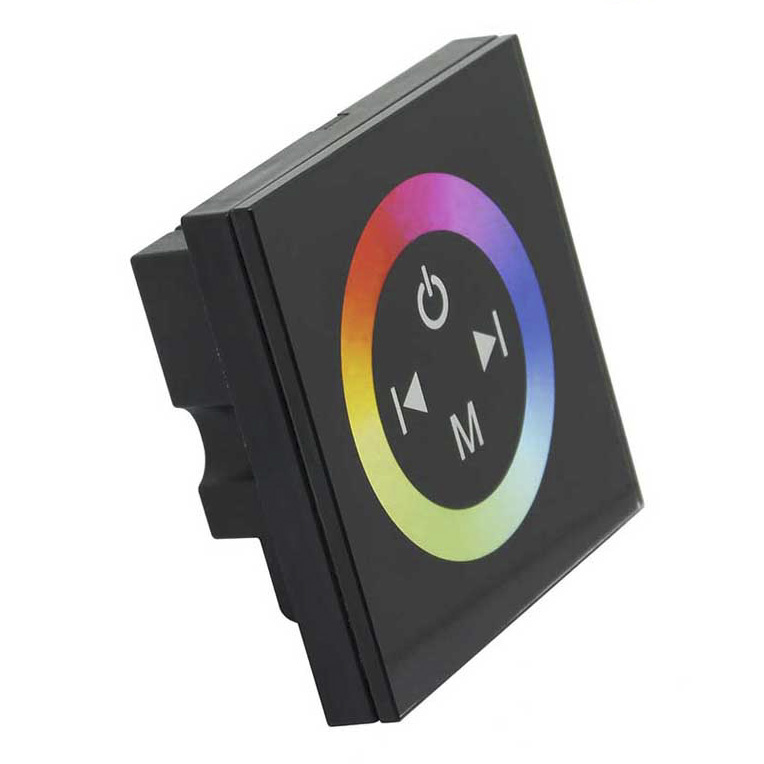

Touch Panel full color controller
Led Controller, led strip controller, Rgb Led Controller, Led Rgb Controller, Rgb Controller, Touch Led Controller, lighting controller, led lighting controller, Panel Rgb Controller, RF remote control, Led Strip Light, led lighting fixtures, Panel Led Controller, 3 Channels Led Controller, Touch Rgb Controller, led driver, led pixel screen
Touch panel controller is a new high-end controller which newly developed by our company. It adopts glass panel design, is beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, panel lights etc., it has many advantages such as convenient to connect, easy to use and others. According to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.
Technical Parameters
1. Working temperature: -20-60
2. Supply voltage: DC12-24V
3. Output: 3 channels
4. Connection mode: Common anode
5. External dimension: L86 * W86 * H37 mm
6. Packing size: L90 * W90 * H40 mm
7. Net weight: 125g
8. Gross weight: 185g
9. Static power consumption: <1W
10. Output current: <4A( each channel )
11. Output power: 12V<144W, 24V<288W
Remarks:
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2. The supply voltage of controller ranges in DC12V~DC24V, it may burn out the controller once exceed the voltage ranges.
|
Mode No. |
Function |
Remarks |
|
1 |
Static red |
Brightness is adjustable, speed is unadjustable. |
|
2 |
Static green |
|
3 |
Static blue |
|
4 |
Static yellow |
|
5 |
Static purple |
|
6 |
Static cyan |
|
7 |
Static white |
|
8 |
Three-color jumpy changing |
Speed is adjustable, brightness is unadjustable |
|
9 |
Three-color gradual changing |
Speed is adjustable, brightness is unadjustable |
|
10 |
Seven-color jumpy changing |
Speed is adjustable, brightness is unadjustable |
|
11 |
Seven-color gradual changing |
Speed is adjustable, brightness is unadjustable |
