Lin'an Weimai Electron Co., Ltd. >> Trunk Cable, Coaxial Cable Rg540 (WM005)

Trunk Cable, Coaxial Cable Rg540 (WM005)

Trunk Cable, Coaxial Cable Rg540 (WM005)
Price: US $ 0.01-1/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 18000/Meter
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: RG540 Coaxial Cable
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin: China
Model Number: Rg540 Coaxial Cable Wmm0005
Number Conductor: 1
ODM/OEM: Available
Free Sample: Available
Sample Time: Within One Day for Our Current Model
MOQ: 20km
Certification: UL
Application: Coaxial Cable
Conductor Material: Copper
Cover Material: PE
Type: Coaxial
Brand: Weimai

Product Description

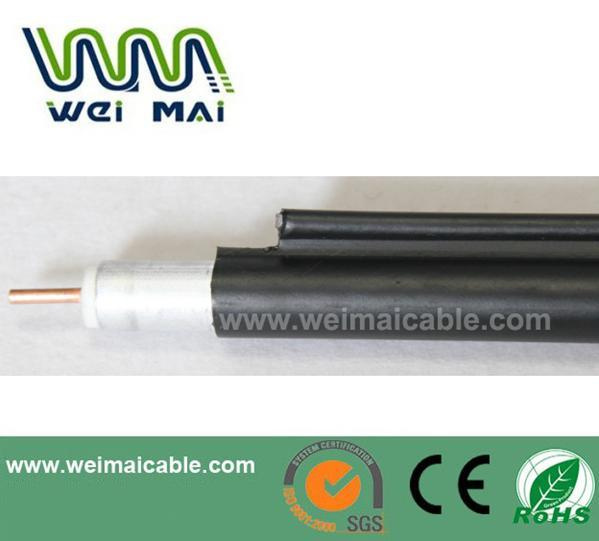

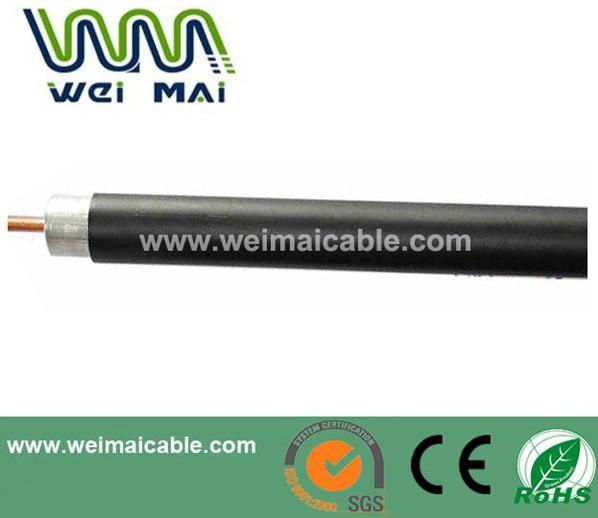

Coaxial cable RG540
(QR.540.JCA) TV Kable WMM0005

1.Free sample, short time delivery
2.Good quality, competitive price
3.CE UL RoHs certification

 Why are we so proud of ourselves?

 1. Always find good quality materials in lower prices to save cost for you.

2. Always use good materials to ensure good quality products for you.

3. 6 years production experience makes us easy to improve the delivery time for you.

4. 6 years export experience makes us to ensure good sale service for you.

 Our Innovation

 1.Quality & Service At WEIMAI, our  priority has always been providing our clients

 with great quality products and superior customer service.

 2.Quick Leadtime We're dedicated to providing the quickest turnaround times and

 work very Hard to ensure that all of your deadlines are met.

 3.Unbeatable Prices We continuously strive to find ways of reducing our production

 costs, and passing the savings over to you!

 4.Brand Awareness The goal of any strong brand is achieve a level of awareness that  instills the idea of quality and value into all of your potential customers.

 5.Special Offers In order to maintain our competitive edge, we are constantly running special offers on our  products.Contact our sales team to see how we can help you save  a lot of money.


1)Construction
Center Conductor:3.15+0.01mm Solid Copper/Copper Clad Aluminum
Dielectric:13.03+0.05mmFoam PE
Outer Conductor:13.72mm Aluminum Tube
Outer Conductor Thickness:0.343mm
Jacket:15.49+0.05mm PVC / PE
Jacket Wall Thickness:0.89mm
Jelly/APDPer Customers Special Requirement
2) Characteristics
Impedance:75+3 Ohm
Capacitance:50+3nF/km, 15.3+1pF/ft
Velocity of Propagation:87%
3) Attenuation
Attenuation[@68 o  F. (20 o  C.)]
Frequency (MHz)Maximum (dB/100 ft.)Maximum (dB/100 m)
5 0.130.43
500.431.41
1080.632.07
1500.742.43
1930.872.85
2500.993.25
3001.083.54
3501.173.84
4001.264.13
4501.354.44
5001.414.63
5501.514.95
6001.595.23
7501.805.02
10002.106.91

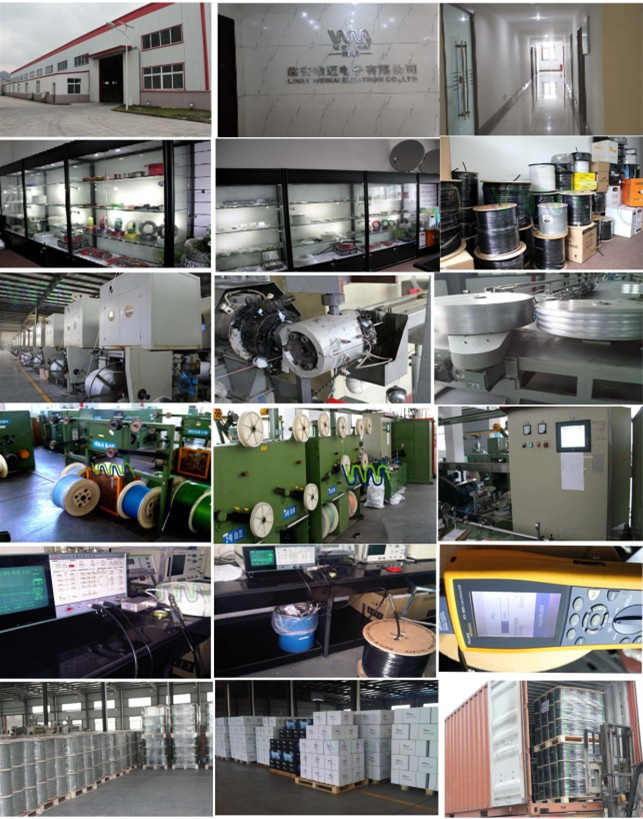

Linan Weimai Electron Co., Ltd is a manufacturer with more than 6 years

Experience in the communications cable industry in China. With an experien-

Ced and professional team, we have exported our products to many countries

And regions all over the world, especially European countries, North Americ-

An, Asia and the Middle East. We can professionally manufacture and supply

Coaxial cables, LAN cables, alarm cables, telephone cables Speaker Cable,

Audio RCA Cable, Scart cable, Flexible RVV Cable and the cable assembly

etc, and many are approved by CE, RoHS. Current production capacity is

About 180, 000, 000 meters per year. Our factory is located in Lin an city, enjoying great convenience toShanghai and Ningbo Sea Port. We have advanced testing machines, ToTest Attenuation, Return Loss Ect. We carefully test cables under ISO 9001-2000 quality management before shipping to the customers. We welcome

Customers, business associations and friends from all parts of the word to

Contact us and seek cooperation for mutual benefits
