| Prod Model: |
TSMQ1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Working Voltage: |
≤400V |
| Applicable Circuit Breaker: |
Tsm2 Series |
| Utilization Category: |
AC-33ib |
| Mechanical Life(Times): |
2500, 3000, 5000 |
| Electrical Life(Times): |
500,1000 |
| Rated Short-Circuit Voltage: |
8kv |
Product Description

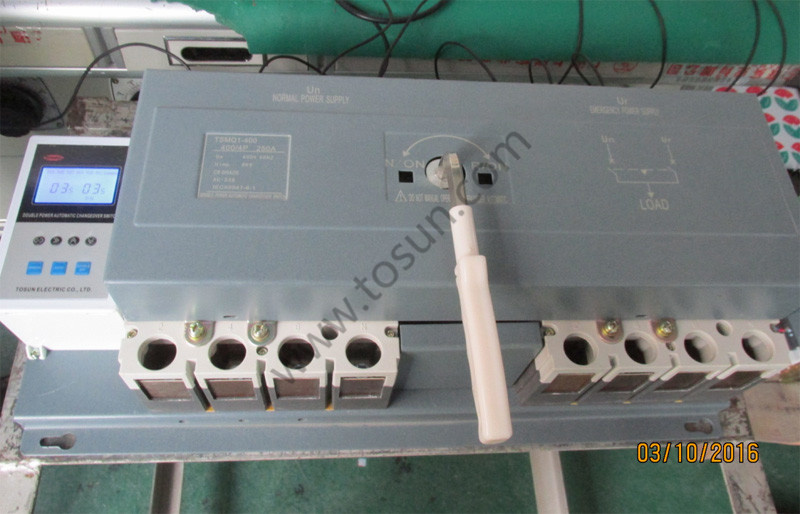

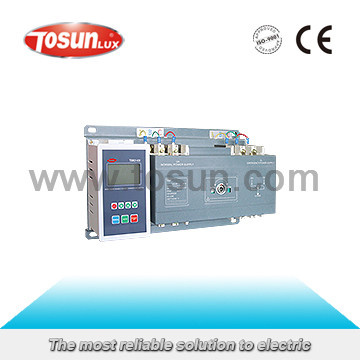

TSMQ1 Intelligent Double Power Automatic transfer switch(ATS)Pictures
ApplicationTSMQ1 Intelligent double power changeover switch is suitable for electrical system with AC 50/60Hz, rated working voltage up to 400V, rated working current 100A-1250A. The items are widely used in varieted of residence communit, military installations, hospital, shopping mall, airports and so on.The product consists of microcomputer controller and switching changeover device which includes the function: auto control switch, manual control switch, common switching on indicator, emergency switching on indicator, mechanical and electrical dual interlocking and so on. There are three state positions for the users to choose: common power (N) switch on, double off and emergency power (R) switching on.
Specification| Model | Applicable
Circuit
Breaker | Rated
Working
Current(A) | Conversion
Action
Times | Utillizaiton
Category | Mechanical
Life
(times) | Electrical
Life
(times) | Rated
Short-circuit
Impulse
Withstand
Voltage
(Uimp) | Rated
Short-circuit
Breaking
Capacity
Icu (kA) |
| TSMQ1-100 | TSM2
series | 10, 16, 20, 25,
32, 40, 50, 63,
80,100 | ≤5 | AC-33iB | 5000 | 1000 | 8KV | 10 |
| TSMQ1-225 | 100, 125, 140,
160, 180,200,225 | ≤5 | 5000 | 1000 | 10 |
| TSMQ1-400 | 225, 250, 315,
350, 400 | ≤6 | 3000 | 1000 | 10 |
| TSMQ1-630 | 400, 500, 630 | ≤6 | 2500 | 500 | 12.6 |
| TSMQ1-800 | 630, 700, 800 | ≤6 | 2500 | 500 | 16 |
| TSMQ1-1250 | 800,1000, 1250 | ≤6 | 2500 | 500 | 25 |
Package
Certificates

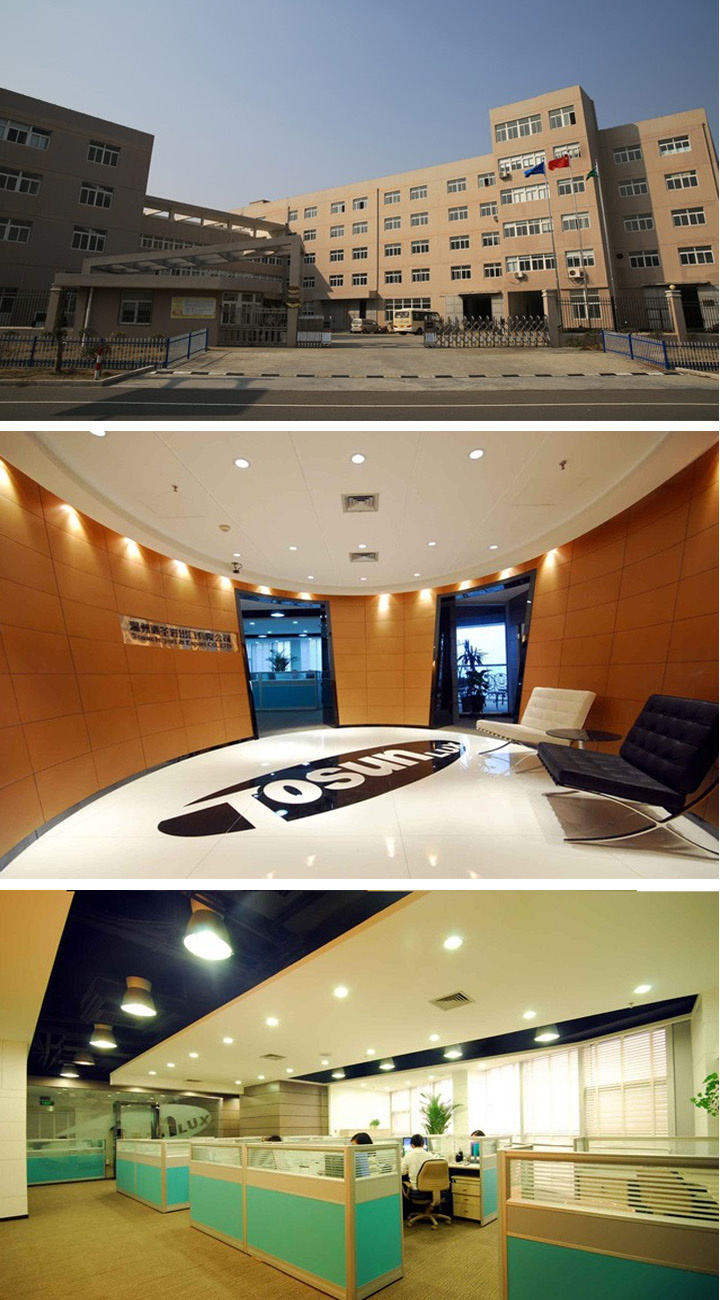

Our office
Why us1. We have extensive experience in low tension electric items and illumination products. We have been dealing the line for more than 21 years.
2. The prices of our products are very reasonable because our network of raw material supply, spare parts and goods. And our factory is efficient, covering an area of 13,000 m².
4. Our group of professional inspectors supervising the quality for your every order. Our products have obtained TUV, SEMKO, CE, CB, and ROHS certificates.
5. We have particular designers in charge of packing.
6. We have experienced salesmen to handle business for you specially.
About us1. More than 23 years' experience. We have extensive experience in low tension electric items illuminaiton products.
2. Reasonable price. Good network of raw material supply, spare parts and goods and efficient factory covering an area of 13,000 m².
3. Reliable quality. We have professional inspectors supervising the quality during the production. Our products have obtained TUV, SEMKO, CE, CB and RoHS certificates.
4. Favorable service. We have experienced salesmen to handle business for you specially.
5. Attractive packing. We have particular designers in charge of packing material in a unique style.
