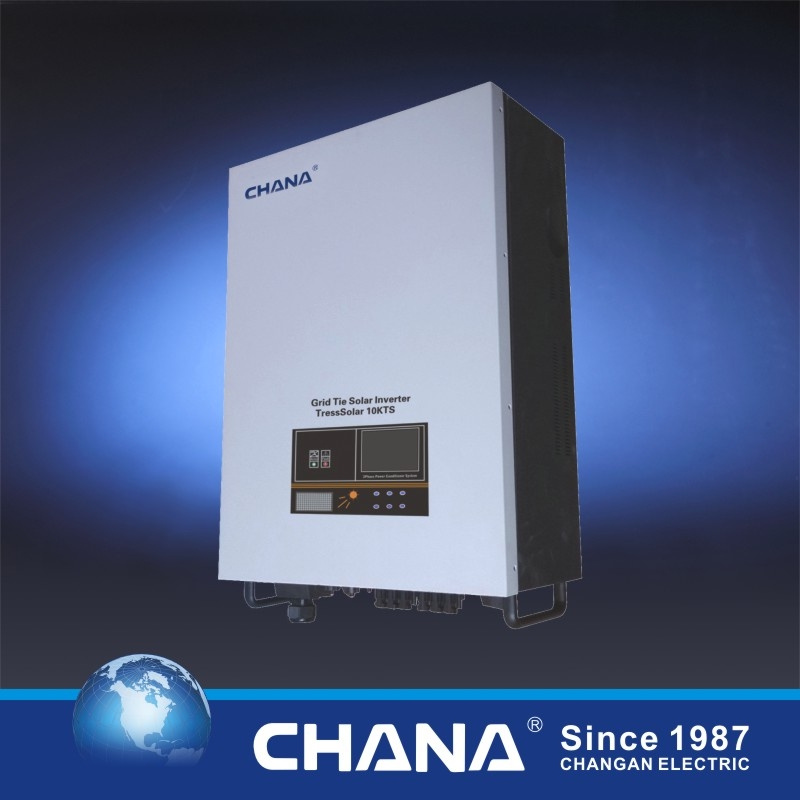

TUV Ce Approval MPPT Three Phase Grid Tie Solar Inverter

Prod Model:	TLS10KTS-20KTS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Protection Degree:	IP65/NEMA 4X
Brand Name:	Chana
Packing Type:	Box
Export To:	Global

Product Description

Product Description
Characteristics
Using the fifth generation Intelligent Power Module from Mitsubishi, improve the system efficiency
High conversion efficiency
Advanced technology for maximum power point tracking (MPPT)
MPPT efficiency (>97%)
Wide input voltage range
Low frequency transformer isolation
High reliability due to perfect protection function
Powerful communication interfaces
Easy operation and installation
Easy-to-set multi-language LCD display
Adjustable protection / operation parameters



Product Description
Application:

TLS KTS Series photovoltaic grid-connected inverter power from 1kw to 300kw range, to meet
Varioustypes of PV modules and grid interconnection requirements, are widely used in domestic
And foreign commercial, residential photovoltaic power plants. Until 2012, TLS KTS the Series of
PV inverters installed worldwide has more than 3.0GW, used in Germany, Italy, Spain, United states,
Australia and more than a dozen countries and regions.
Besides, string type photovoltaic inverter power from 1kw to 50kw; Conversion efficiency as high
As 97%; Single/dual maximum efficiency tracking, outdoor IP54/IP65 protection design; Suitable for
Residential, small and medium-sized power plant project, with the installation ofthe products of
Simple, generating power and operation stably.
Summarize
The grid connected inverter can be used with a connection to grid or power lines. This type supplies the loading appliances with electric power produced by photovoltaic systems.
The advantage of grid-type is not to worry any power waste, because by connecting inverter to grid, it can save any surplus electricity.

Features
*Wide DC input voltage range
*DSP controller
*High efficiency by using advanced IGBT and IPM
*MPPT(Maximum power point tracking) technology
*Transformer less, High efficiency
*In accordance with international standards
*Quick and easy installation
*Operation parameters can be adjusted via LCD and keys
*The perfect protection function
*Designed to suitable for critical grid environment

MODEL

TLS5KTS

TLS6KTS

TLS7KTS

TLS8KTS

DC INPUT
MPPTVOLTAGE RANGE: DC100-500V
RATED DC VOLTAGE RANGE: 360V
CONTROL SYSTEM: MPPT
START VOLTAGE: WIND ENERGY SYSTEMS DC100V, SOLAR POWER SYSTEM DC180V
AC OUTPUT

POWER

5KW

6KW

7KW

8KW




Rated Voltage	AC220V
Normal Grid Frequency	50/60hz(can be set)
Phase Number	Single phase
Power factor	0.95
Max efficiency	97%
Current THD	<3.5%
Euro Efficiency	96.4%

STRUCTURE:


Protection Degree	IP20/NEMA4X
Cooling Method	natural cooling
Noise	50db
Data interfaces	External Rs232C
WXHXD	560X420X165
WEIGHT	28
WEB MODULE	RS232C TO TCP/IP
Display	LCD
