U-1000 R2V 0.6/1 Kv XLPE Insulation PVC Sheath Power Cable 31.5 32.5 Cable

Name: U-1000 R2V 0.6/1 Kv XLPE Insulation PVC Sheath Power Cable 3*1.5 3*2.5 Cable
Brand: all-electronics-online.com
SKU: 835592875
Availability: InStock
Rating: 4.4 (97 reviews)

Price:	US $ 0.15-1.86/Meter
Min Order:	500/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	U-1000 R2V cable U-1000 RO2V cable
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	CCC
Brand:	OEM/Hongda

Product Description

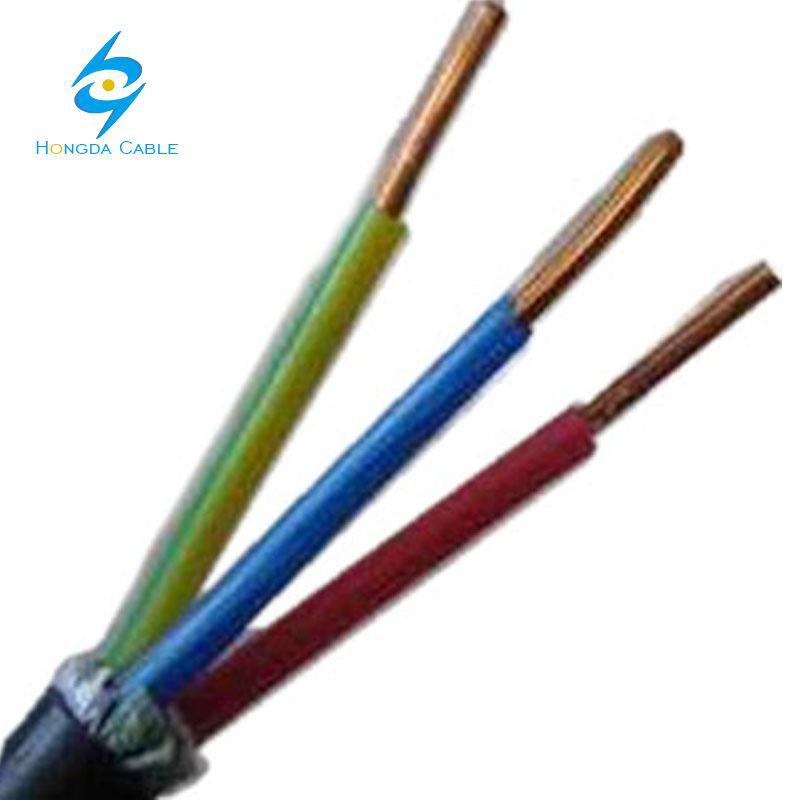

Construction

1. Copper conductor
2. XLPE insulation
3. PP filling material
4. PVC outer sheath black

Properties

Max. admissible conductor temperature: 90 °C
Service temperature: - 20 ... + 90 °C
Min. Laying temperature: - 5 °C
Min. bending radius:
Multicourse: 12 x D
Single co C1: 15 x D
Flame C1tardant acc. to (IEC 60332-1)

Technical Specification

Conductor Type:
Class 1: rigidd conductor Class 2, muliti-stranded conductor

Cable Structure Data

Number of co C1s and size		Insulation thickness	Outer sheath thickness	Outer diameter	Weight of cable
mm2		mm	mm	D approx. mm	approx. kg/km
1 x	16 C2	0,7	1,4	9,5	215
1 x	25 C2	0,9	1,4	11,0	310
1 x	35 C2	0,9	1,4	12,0	410
1 x	50 C2	1,0	1,4	13,5	540
1 x	70 C2	1,1	1,4	15,5	745
1 x	95 C2	1,1	1,5	17,5	1010
1 x	120 C2	1,2	1,5	19,0	1250
1 x	150 C2	1,4	1,6	21,0	1535
1 x	185 C2	1,6	1,6	23,5	1910
1 x	240 C2	1,7	1,7	26,0	2470
1 x	300 C2	1,8	1,8	28,5	3080
1 x	400 C2	2,0	1,9	32,0	3995
2 x	1,5 C1	0,7	1,8	10,5	145
2 x	2,5 C1	0,7	1,8	11,0	180
2 x	4 C1	0,7	1,8	12,0	225
2 x	6 C2	0,7	1,8	13,5	310
2 x	10 C2	0,7	1,8	15,0	420
2 x	16 C2	0,7	1,8	17,5	600
2 x	25 C2	0,9	1,8	20,5	880
2 x	35 C2	0,9	1,8	23,0	1160
3 x	1,5 C1	0,7	1,8	10,5	165
3 x	2,5 C1	0,7	1,8	11,5	210
3 x	4 C1	0,7	1,8	12,5	265
3 x	6 C2	0,7	1,8	14,5	370
3 x	10 C2	0,7	1,8	16,0	515
3 x	16 C2	0,7	1,8	18,5	750
3 x	25 C2	0,9	1,8	21,5	1110
3 x	35 C2	0,9	1,8	24,5	1475
3 x	50 C2	1,0	1,8	26,5	1865
3 x	70 C2	1,1	1,9	31,5	2680
3 x	95 C2	1,1	2,0	35,5	3600
3 x	120 C2	1,2	2,1	39,5	4515
3 x	150 C2	1,4	2,3	44,0	5555
3 x	185 C2	1,6	2,4	48,5	6930
3 x	240 C2	1,7	2,6	55,0	9010
3 x	300 C2	1,8	2,8	61,0	11195
4 x	1,5 C1	0,7	1,8	11,5	190
4 x	2,5 C1	0,7	1,8	12,5	245
4 x	4 C1	0,7	1,8	13,5	320
4 x	6 C2	0,7	1,8	15,5	445
4 x	10 C2	0,7	1,8	17,0	635
4 x	16 C2	0,7	1,8	20,0	930
4 x	25 C2	0,9	1,8	23,5	1390
4 x	35 C2	0,9	1,8	26,5	1850
4 x	50 C2	1,0	1,9	30,5	2450
4 x	70 C2	1,1	2,0	34,5	3410
4 x	95 C2	1,1	2,1	39,5	4640
4 x	120 C2	1,2	2,3	44,0	5780
4 x	150 C2	1,4	2,4	48,5	7075
4 x	185 C2	1,6	2,6	54,5	8965
4 x	240 C2	1,7	2,8	61,0	11510
4 x	300 C2	1,8	3,0	67,5	14370
5 x	1,5 C1	0,7	1,8	12,5	225
5 x	2,5 C1	0,7	1,8	13,5	290
5 x	4 C1	0,7	1,8	14,5	380
5 x	6 C2	0,7	1,8	17,0	540
5 x	10 C2	0,7	1,8	19,0	775
5 x	16 C2	0,7	1,8	21,5	1135
5 x	25 C2	0,9	1,8	27,0	1780
7 x	1,5 C1	0,7	1,8	13,5	275
7 x	2,5 C1	0,7	1,8	14,5	360
12 x	1,5 C1	0,7	1,8	17,0	450
12 x	2,5 C1	0,7	1,8	19,0	595
19 x	1,5 C1	0,7	1,8	20,0	615
19 x	2,5 C1	0,7	1,8	22,0	850
24 x	1,5 C1	0,7	1,8	23,0	785
24 x	2,5 C1	0,7	1,8	25,5	1050
27 x	1,5 C1	0,7	1,8	23,5	840
27 x	2,5 C1	0,7	1,8	26,0	1135
37 x	1,5 C1	0,7	1,8	26,0	1060
37 x	2,5 C1	0,7	1,8	29,0	1485

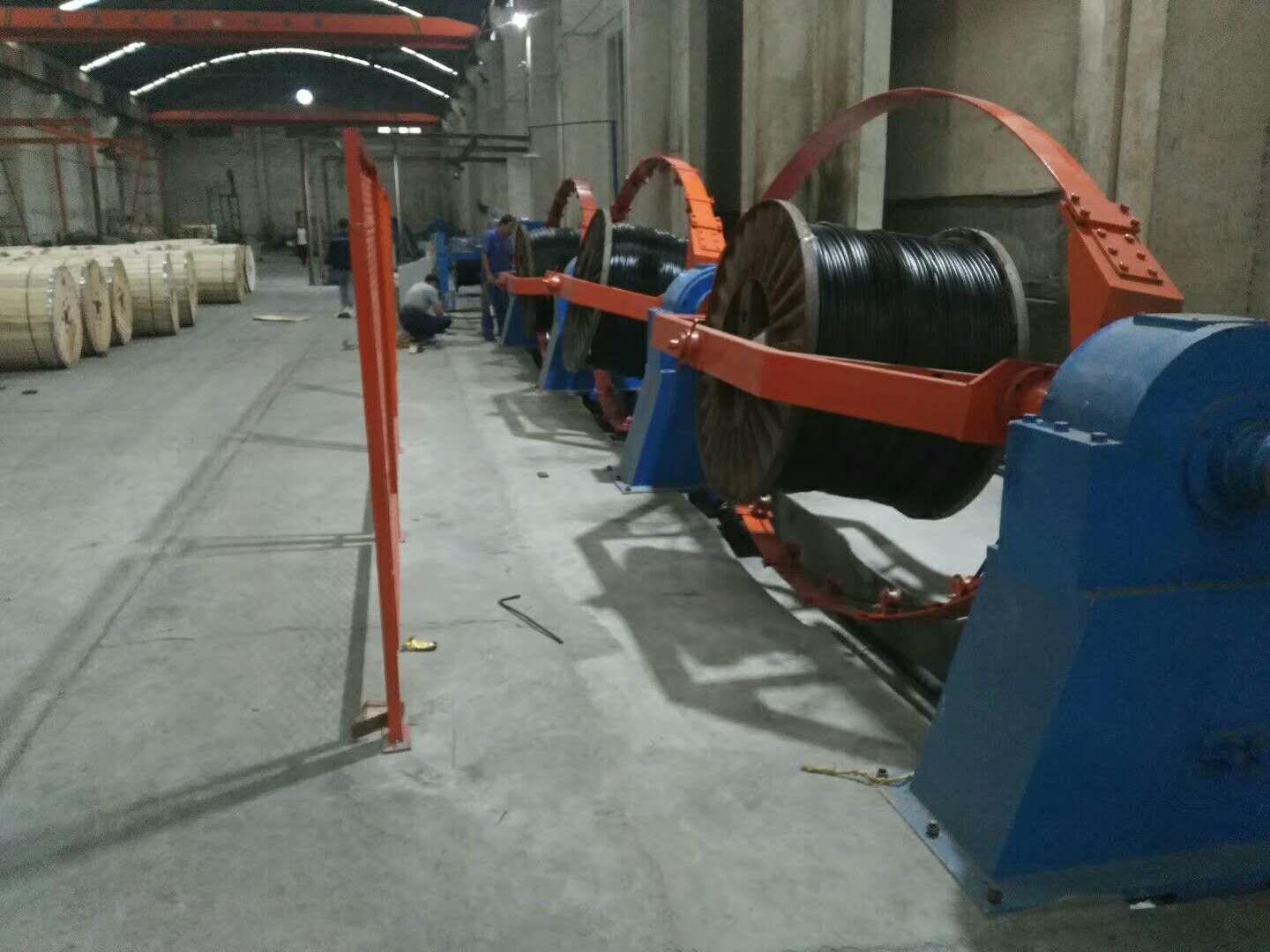

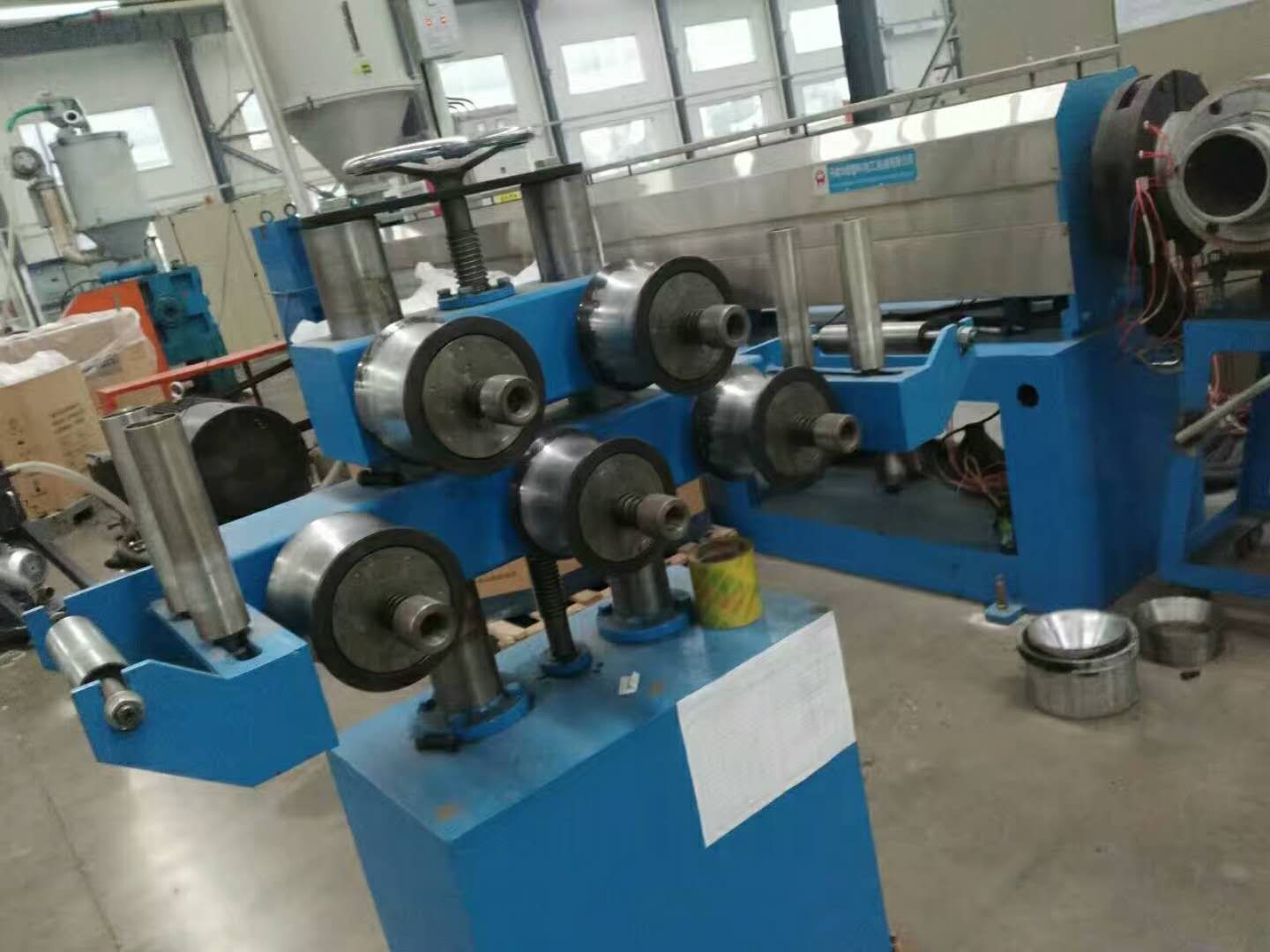

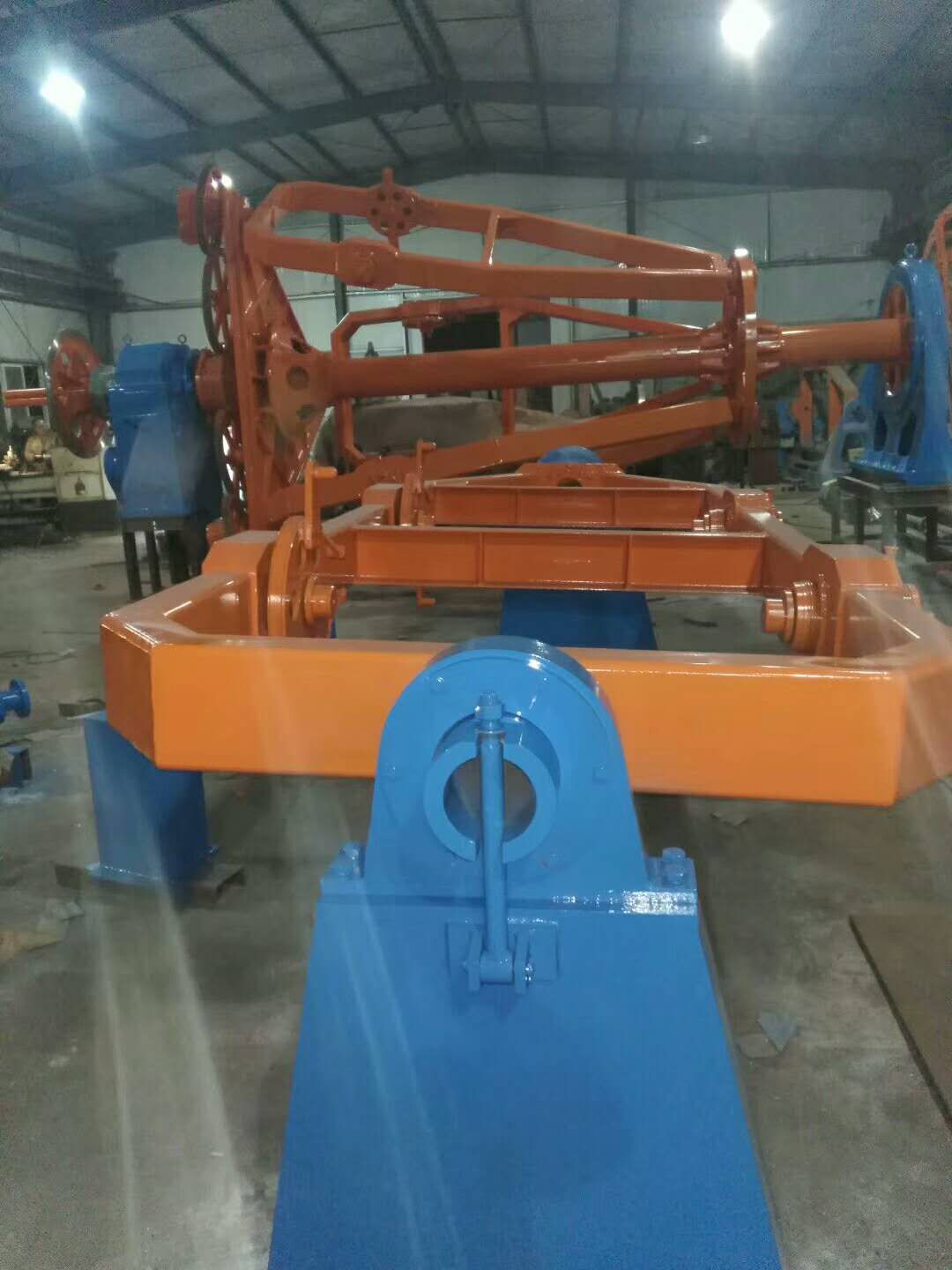

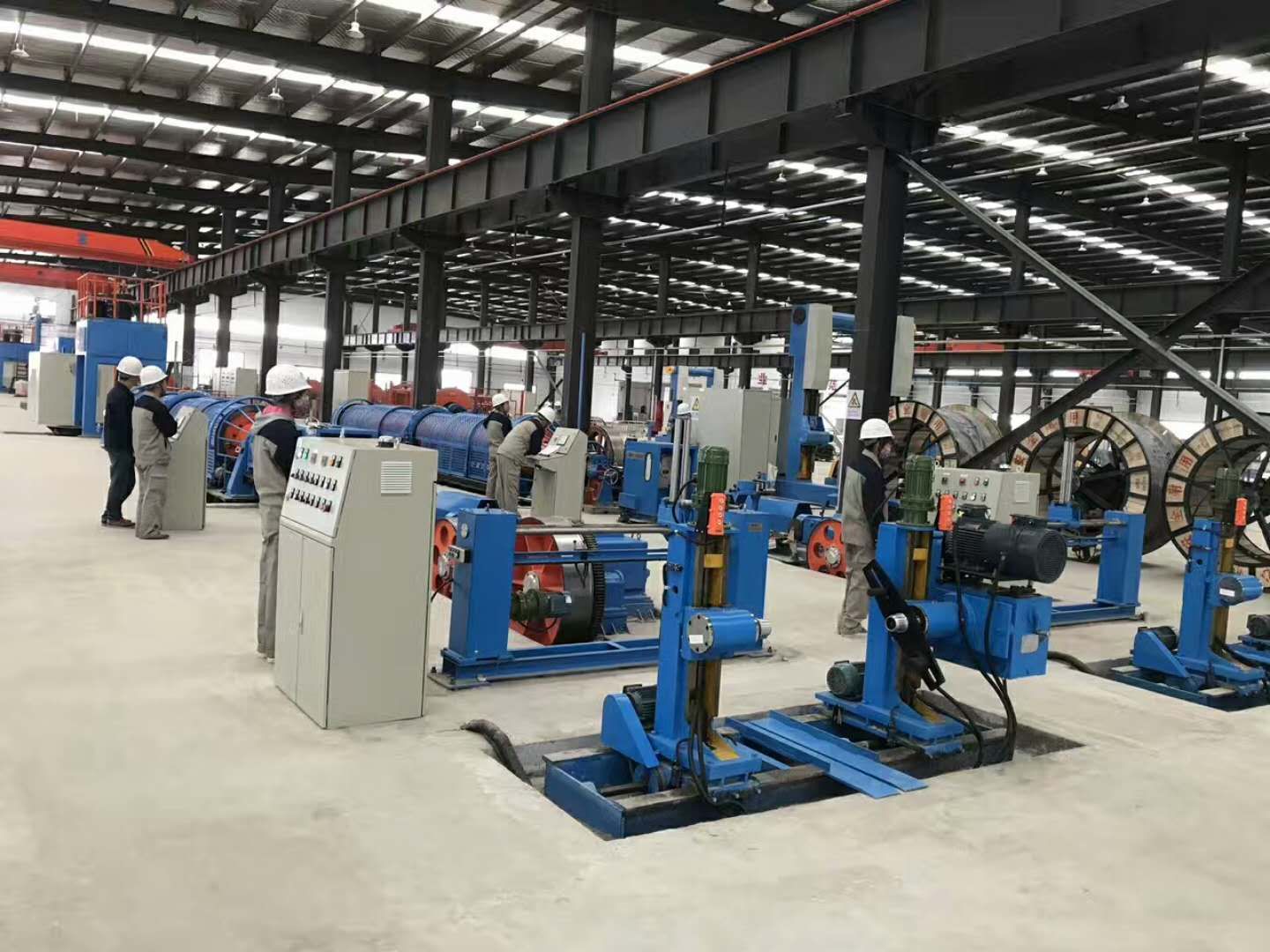

Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.

Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.

Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).

Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
