U1000 R02V Copper Cable Insulated PVC Jacket Power Cable

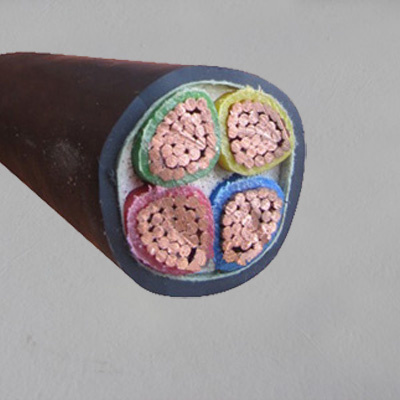

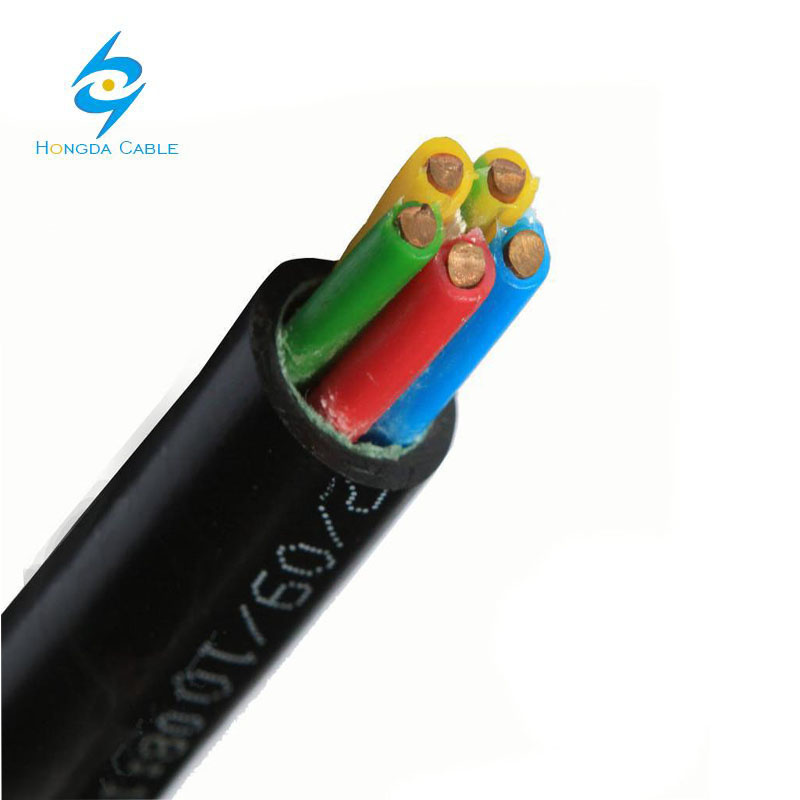

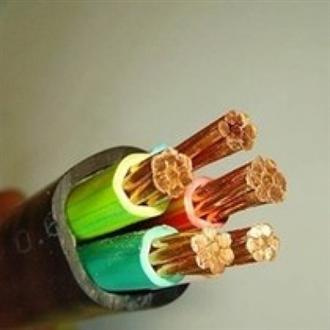

Name: U1000 R02V Copper Cable Insulated PVC Jacket Power Cable
Brand: all-electronics-online.com
SKU: 831826195
Availability: InStock
Rating: 5 (21 reviews)

Price:	US $ 0.8-15.6/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	U1000 R02V
Application:	Construction
Voltage:	Low and Medium Voltage Cable
Current:	DC Cable
Insulation Material:	XLPE
Certification:	CCC
Brand:	OEM

Product Description

STANDARDS
IEC 60502
NFC

APPLICATION
U-1000 R2V cables can be used in all low voltage power installations. Multiconductors cables are adapted
to remote control and telecontrol installations.
In case of high ambiant temperature, use correction coefficient.

INSTALLATION
These cables can be fixed on cable trays, within conduits or fixed to walls. They also can be buried directly
with extra mechanical protection.
Cross sections 1,5 - 2,5 and 4 mm² have to be of class 2 flexiblility, if the cable is connected to equipment
subject to vibration.

CONSTRUCTION
Conductor material	Bare copper
Insulation	XLPE (chemical)
Outer sheath	PVC
Sheath colour	Black
ELECTRICAL
Rated Voltage Uo/U (Um)	0.6/1 kV
MECHANICAL
Mechanical resistance to impacts	Good
Cable flexibility	Rigid
USAGE
Max. conductor temperature in service	85°C
Short-circuit max. conductor temperature	250°C
Operating temperature, range	- 10 .. 60°C
Weather resistance	Very good
Flame retardant	C2, NF C 32-070
Chemical resistance	Accidental
Bending factor when laying	6(xD)

Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.

Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.

Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).

Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
