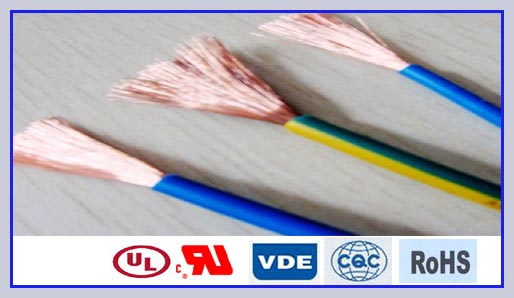

UL Approved PVC Insulated Electric Wire

UL Approved PVC Insulated Electric Wire
Price: Negotiable/Meter
Min Order: 1000/Meter
Pay Type: L/C,T/T,D/P
Prod Model: AWM1007
Type: Insulated
Conductor Type: Stranded
Application: Harness
Conductor Material: Copper
Insulation Material: PVC
Certification: RoHS
Brand: Hoochan

Product Description

Conductor:bare, tinned copper
Insulator: PVC

Rated Volt.:300V
Test Voltage: 2000V. 1Min
Rated Temp.:60ºC/80ºC

Mechanical properties
Un-aged condition:

Tensile strength: 10.3N/mm2

Elongation at break of insulation: 100%

Min.Bending radius: 6×OD

Standards: Standard: UL758, UL62, And UL1581
Meet with RoHS, REACH rules.

Characteristics:
PVC wire has good performance in corrosion resistant and anti chemical liquid, acid, alkali, excellent thermal stability. It is light weight and competitive price for customer's choice.

We adopted good quality raw materials of PVC to assure our extruded wire can meet with strict quality control.

Application:
PVC wire & cable are used very popularly in the home electric appliance, lighting, AUTO wire harness, aviation, military, instruments, plug etc.


SIZECross sectionConductorInsulation ThickWire ODResistance
StructureODNominalNominalToleranceMax.20ºC
AWGmm²No./mmmmmmmmmmΩ/KM
320.03245/0.100.300.391.10 ±0.10585
310.04016/0.100.300.391.10 ±0.10473
300.05077/0.100.300.391.10 ±0.10374
290.06479/0.100.350.391.15±0.10293
280.080411/0.100.40 0.391.20 ±0.10214
270.10213/0.100.430.391.25±0.10186
260.1287/0.160.480.391.30 ±0.10148
250.1629/0.160.560.391.35±0.10116
240.2057/0.200.60 0.391.40±0.1093
11/0.16
12/0.15
230.25911/0.180.70 0.391.50 ±0.1074.5
220.32413/0.180.750.391.55±0.1055
7/0.25
17/0.15
210.41217/0.180.880.391.70 ±0.1046.9
200.51921/0.180.960.391.75±0.1034.6
10/0.254
26/0.16
7/0.31
190.65326/0.181.10 0.391.90 ±0.1029.1
180.82333/0.181.200.392±0.1023.2
16/0.254
7/0.39
24/0.20
171.0421/0.2541.380.392.2±0.1020
40/0.18
32/0.20
161.3126/0.2541.550.392.35±0.1014.6
7/0.49

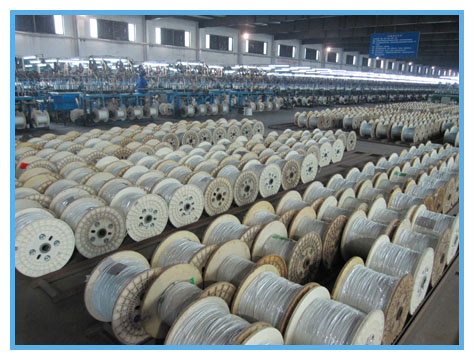

Wuxi Huacheng Cable Co., Ltd. is specialized in production of heat resistant silicone rubber wire & cable, also engaging in its R & D field, total building covers about 20000 square meters, with kinds of advanced Rubber extruding machines, Coating equipment lines, Braiding machines 1500 sets etc. After tens of year constant development, our annual output is more than 250, 000 KMS and became the famous leader and production base in domestic market.

Most of the products have passed USA UL/cUL, Germany VDE, China CCC, Japan F-MARK and ROHS Certification, completely meet with EU environment protect policy requirement, acquired ISO9001: 2000 International Quality Management & ISO14001 Environment Management Certification. All the staff exalt the tenet "Pursue truth, Honor fact, Keep Innovation", insisting on the quality policy of "Customer's wishes oriented, adopting PDCA circulation, continuously improve product and service, fully satisfying customers", based on above, our products sell well everywhere, applying to famous corporations, and even sell far to Occident, Mid-east, Southeast Asia countries and area, acquire good reputation and approval of customers.

More than hundreds of series of products are optional for customer's choice, mainly used for new energy, wind power motor, metallurgy, power, railway, home electrical appliance, lighting relative fields.
