| Prod Model: |
Cat6 Lan Cable |
| Application: |
Local Communication Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
UL |
| Type: |
Cat5e |
| Wire Core Material: |
Bc/CCA/CCS/Ccag |
| Model: |
Cat5e LAN Cable |
| Brand: |
ADP/OEM |
Product Description
Introduction of Cat6 ethernet cable
Conductor: 23AWG Soft Plain Copper
Insulation: Polyethylene with colour marking on white cores for easy identification
Colour Code: White-Blue/Blue,White-Orange/Orange,White-Green/Green,White-Brown/Brown
Drain Wire: Tinned copper
Shield: Aluminium foil, polyester tape and drain wire
Outer Jacket: PVC, CMX,CM,CMR,CMG , Leaded and Lead-free as well as LSZH versions available Nominal Diameter: 7.5 +/- 0.3 mm
Printing: Sheath printed black with legend as per customer requirement
Maximum Pulling Force: 80 N
Minimum Bending Radius: 65 MM
Nominal Weight: 60 KG/KM
Operating Temperature: -15Deg C ~ +70 Deg C
Installation Temperature: +5 Deg C ~ +40 Deg C
Fire Performance: IEC332.1, VW1, IEC332.3 versions available depending on jacket type
Product lengths: 305m standard, 500m, 1000m on request.
Product performance
Frequency (MHz) | Character impedance(ohm) | Echo Loss(Db)) | Attenuation (dB/100) | Near-end crosstalk (dB/100m) | Equivalent far-end Crosstalk(dB/100m) |
0.772 | 100±15 | 19.4 | 1.6 | 76.0 | 70.2 |
1.0 | 20.0 | 1.8 | 74.3 | 68.0 |
4.0 | 23.0 | 3.7 | 65.3 | 56.0 |
8.0 | 24.5 | 5.3 | 60.8 | 49.9 |
10.0 | 25.0 | 5.9 | 59.3 | 48.0 |
16.0 | 25.0 | 7.5 | 56.2 | 43.9 |
20.0 | 25.0 | 8.4 | 54.8 | 42.0 |
25.0 | 24.3 | 9.5 | 53.3 | 40.0 |
31.25 | 23.6 | 10.6 | 51.9 | 38.1 |
62.5 | 21.5 | 15.4 | 47.4 | 32.1 |
100.0 | 20.1 | 19.8 | 44.3 | 28.0 |
200.0 | 18.0 | 29 | 39.8 | 22.0 |
250.0 | 17.3 | 32.8 | 38.3 | 20.0 |
Application
1.Computer network cabling project
2.Broadband network communication
3.Digital ISDN and ATM 155Mbps network
4.Ethernet network
5.Audio and data transmission

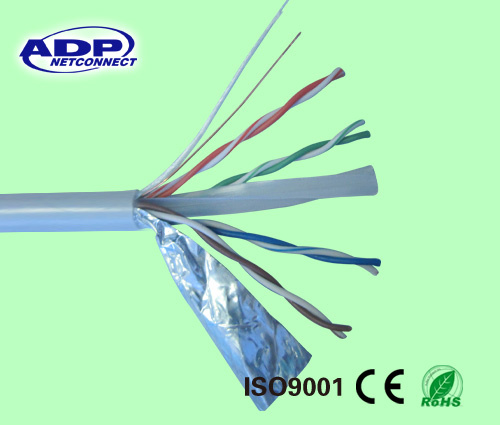

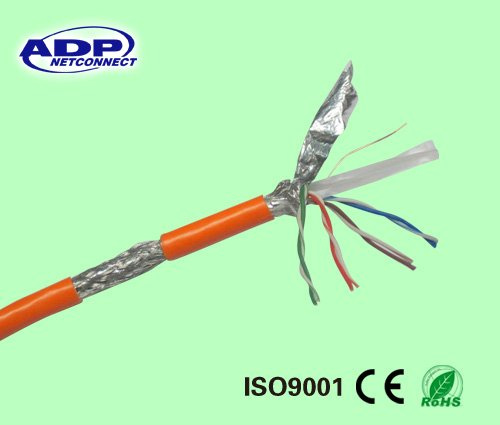

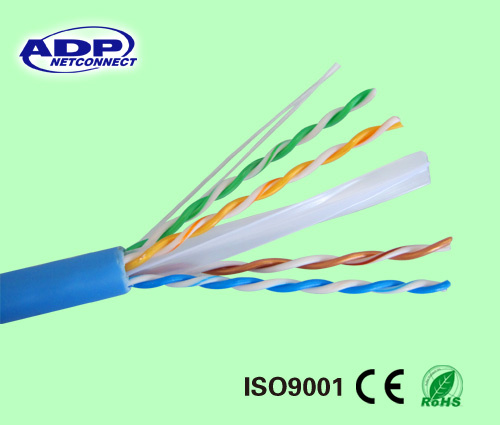

Product show
Packing &delivery
1) Length:305m/roll, other length is available according to clients request.

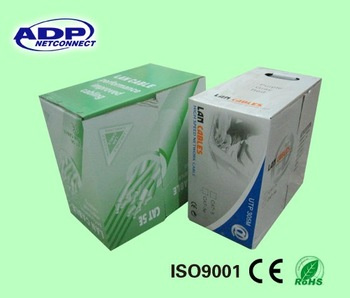

2) Packing: Easy pull color box+outer carton
3) Other packing available according to client's request
Delivery Detail: 7-15 days after receiving 30% T/T or L/C
