| Prod Model: |
SMB-D10B |
| Input: |
85-132V 170-264VAC 240-370VDC |
| Output: |
5V1a 24V0.25A |
| Power: |
50W |
| Size: |
80*48*22mm |
| Weight: |
0.52kg |
| Package: |
40PCS/21kg |
| Working Temperature: |
-10~+60 Degree C,20%~90%Rh |
| DC Adjustable: |
10% |
| Safety Standard: |
En60950 UL60950 GB4943 |
| Customized: |
Available |
| Output Type: |
Dual |
| Warranty: |
2 Years |
| Output Power: |
1 - 50W |
| Input Voltage: |
Full Range |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Brand: |
Smun |
Product Description

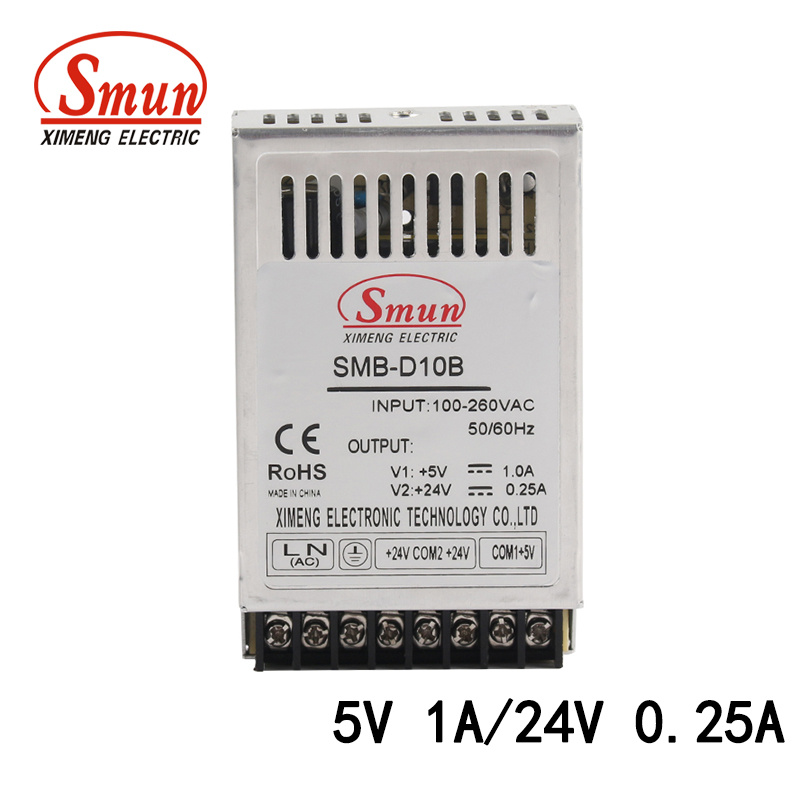

10W dual output switching power supply
AC input voltage range selected by switch
Small volume, low weight, high efficiency
Protections: Short circuit/over load/over voltage/over temp
Cooling by free convection
LED indicator for power on
100% full load burn-in test
Features
l Output overload, overvoltage, short circuit protection; Overtemperature protection for option
l With reference to the international safety regulation: UL/TUV/CB/CE
l Cooling by free air convection
l 100% full load burn-in test
l Three years warranty
Input Characteristic
l Inputvoltage range............176 ~ 264 VAC/ 85~264 VAC/ 210-370 VAC
l Input Frequency.....................................47~63Hz
l Inrush current.........................................Cold start 40A/230VAC
l Leakage current.....................................<0.5mA/240VAC
Output Characteristic
l Rated Power ...............................10-15W
l Voltage adj. range .................±10% (Rated output voltage)
l Load regulation(main) .............±0.4%
l Line Regulation............... ..............<0.5%
l Set up time...................... ............... ≤50ms/230VAC (Full load)
l Hold up time............. ............ ≥20ms/230VAC (Full load)
General Characteristic
l Overload protection ... Above 105% rated output power/ Automatically recovers after fault conditions removed
l Overvoltage protection Above 110% rated output voltage/ Automatically recovers after fault conditions removed
l Isolation characteristic I/P-O/P: 1.5KVAC 1Min, I/P-FG: 1.5KVAC 1Min, O/P-FG: 0.5KVAC 1Min
l Anti-vibratility.......................10-500Hz, 5G 10min/ cycle, period for 60min, each axes
l Safety Regulation.................. Refer to UL60950-1, TUV EN60950-1
l EMC standard........................Refer to EN55022(CISPR22) class B. EN-61000-4-2,3,4,5,6,8,11
l Environmental Characteristic
Working temperature ............ -10-+50ºC
Storage temperature ........... -20~ +85ºC
l Size...................................... 100*58*31mm
2 years warranty
| AC input voltage range | 90~260V,DC240~373V
47~63HZ
|
Over-voltage protection |
115%~135% |
| Input current | 1.6A/115V 0.8A/230V |
set up rise hold up time | 200ms 50ms 20ms
|
| AC inrush current | Cold-start current 20A/AC220V |
withstand voltage |
n |
Leakage current
| 0.5mA/240VAC
|
working temperature | -10~+60
|
DC adjustable rabge |
10%rated output voltage |
weight/package | 0.09kg
|
Overload protection | 105~150% cut down ouput
|
|
|
