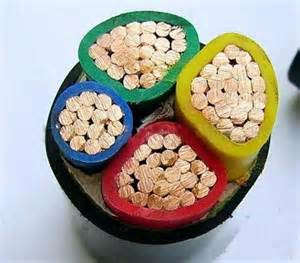

Underground Cable Steel Wire/Type Armoured Copper Power Cable

Prod Model:	50mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	up to 800mm2
Alternative Voltage:	up to 35kv
Armour:	Swa or Sta
Voltage:	Low and Medium Voltage Cable
Insulation Material:	XLPE
Current:	DC & AC
Application:	Power Station
Certification:	CE
Brand:	Yifang

Product Description

SWA STA armoured cable

Number Of core: 1 core, 2 core, 3 core, 4 core, 5 core

Voltage: 0.6/1KV, 6/35KV

1) Copper (aluminium) cores / XLPE insulated / PVC(PE) sheathed power cable
2) Copper (aluminium) cores /XLPE insulated /steel tape armored/ PVC ( PE) sheathed power cable
3) Copper (aluminium) cores /XLPE insulated / thin steel wire armored/ PVC ( PE) sheathed power cable
4) Copper (aluminium) cores /XLPE insulated / thick steel wire armored/ PVC ( PE) sheathed power cable

The products can be produced according to our factory specification which is equivalent to the standard IEC.ASTM.DIN.BS. .The permissible maximum operating temperature is 90C. It is convenient for using, and they can be laid with no restriction of different elevation.

Remarks: Including products for flame retardant, fire resistant and termite-proof

Packing: Export wooden drums.

Construction:
Stranded and compacted aluminium conductor
Inner semi conductor
XLPE insulation
Outer semi conductor
Water blocking semi conducting tape
Copper wire screen plus copper tape
Polyester tape
PVC inner sheath
Steel tape armored
PVC outer sheath
Standard: IEC60502, IEC60228
The kind of cable can be produced with 3 cores, Steel wire armored.


Type	Description	Application
VV	Copper conductor ,PVC insulated ,PVC sheathed power cable	Used for installing indoors, in tunnel or cable trench,unable to bear extermal mechanical forces. Single core cable is not permissible to lay in magnetic duct
VLV	Aluminium conductor ,PVC insulated ,PVC sheathed power cable
VY	Copper conductor, PVC insulated, PE sheathed power cable
VLY	Aluminium conductor ,PVC insulated ,PE sheathed power cable
VV22	Copper conductor ,PVC insulated ,steel tape armoured ,PVC sheathed power cable	Used for Installing indoors, in cable trench or direct in ground ,able to bear external mechanical forces, but unable to bear pulling force
VLV22	Aluminium conductor ,PVC insulated ,steel tape armoured ,PVC sheathed power cable
VV23	Copper conductor ,PVC insualted ,steel tape armoured ,PE sheathed power cable
VLV23	Alunminium conductor ,PVC insulated ,steel tape armoured ,PE sheathed power cable
VV32	Copper conductor, PVC insulated, steel wire armoured,PVC insulated power cable	Used for intalling indoors, in cable or direct in ground ,able to bear external mechanical forces, but unable to bear large pulling forces
VLV32	Aluminium conductor, PVC insulated ,steel tape armoured ,PVC sheathed power cable
VV33	Copper conductor, PVC insulated steel wire armoured , PE sheathed power cable
VLV33	Aluminium conductor , PVC insulated , streel wire armoured ,PE sheathed power cable
