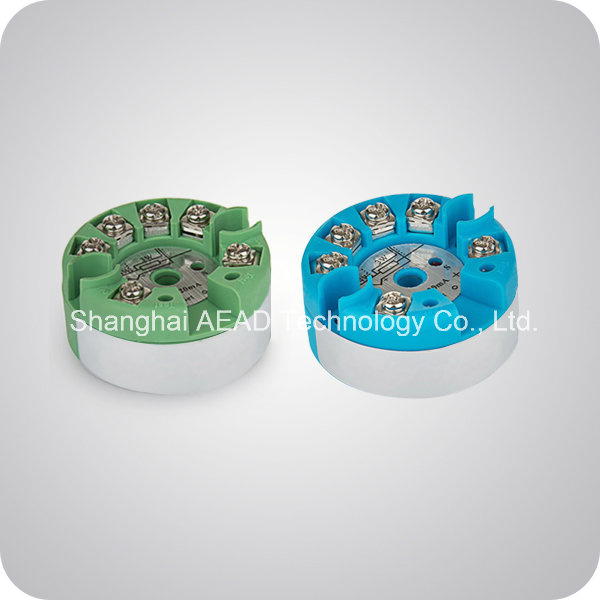

Universal Inputs Hart Protocol 4-20mA Galvanic Isolation Temperature Transmitter (A+E-WB023)

Universal Inputs Hart Protocol 4-20mA Galvanic Isolation Temperature Transmitter (A+E-WB023)
Price: US $ 50/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: A+E-WB023
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Supply Voltage: 9~32V DC
Accuracy: ≤0.1%
Output: 4...20mA
Dimensions: D44*H21
Inputs: Universal Inputs
Color: Green or Blue
Control Type: Digital
Material: Flame Resistance Resin
Type: Temperature Sensor

Product Description

Universal Inputs Hart Protocol 4-20mA galvanic isolation Temperature Transmitter (A+E-WB023)


Application
1. To convert input signals into 4-20mA output signal
2. Input
   Resistance thermometer (RTD)
   Thermocouple (TC)
   Resistance (Ω)
   Voltage (mV)


Features & Benefits
1. Two choices for color
2. Wide voltage supply range
3. For installation in head Form B
4. TC/RTD sensor broke alarm
5. Low temp. drift and zero auto calibration

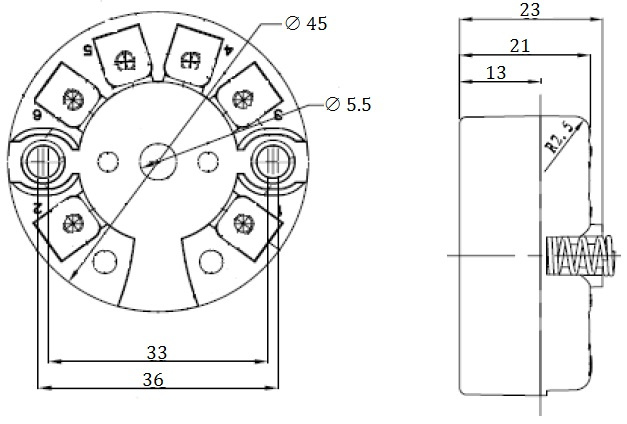

Dimensions

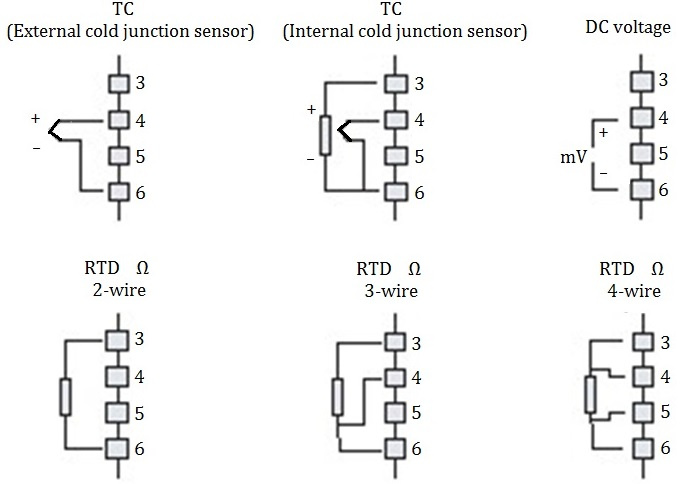

Wiring diagram:

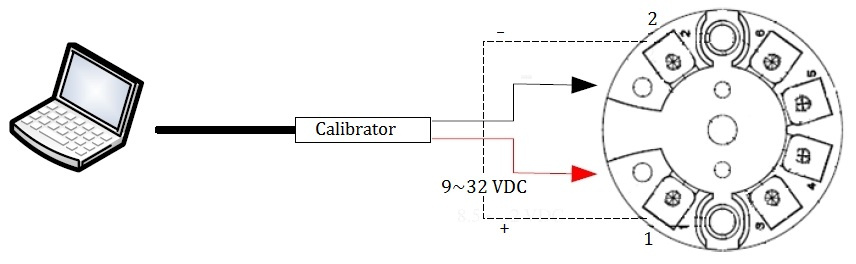

Calibration:






 Supply voltage 9~32V DC
 Load capacity Load capacityRL = (U-8.0V)/0
 Voltage Input Input impedance > 5MΩ
 TC input Input impedance > 5MΩ
 RTD / Resistor input > 5MΩ
 Accuracy ≤0.1%
 Response Time 1S(0-90%)
 Temperature drift ±0.01%/°C
 Ambient temperature -40~85°C
 Output 4...20mA
 Ambient humidity 0-95%RH (Non-condensing)
 Cold junction compensation precision ±1°C (internal sensor)
 Broken Alarm Detecting Current 5uA
 Insulation Resistor Between input/output 100MΩ / DC500V
 Voltage fluctuation influence ±0.005%X span/ below V DC
 External cold junction compensation Pt100
 Input detecting current 0.2mA (2w / 3w / 4w)
Dimensions  D44*H21
 Case material Flame resistance resin
