Universal Plastic RF Remote Control LED RGB Controller

Universal Plastic RF Remote Control LED RGB Controller
Price: US $ 10-40/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,D/P
Prod Model: LED RGB Controller LT-3800-6A
Product Name: LED RGB Controller Lt-3800-6A
Input Voltage: DC5-DC24V
Max. Load Current: 6A * 3CH Max18A
Max Load Power: 90W/216W/432W(5V/12V/24V)
Changing Mode: 12 Modes,3 Types
Static Dimming: 16 Steps Per RGB
RF Remote Distance: 30m
Dimension: L146*W90*H31(mm)
Weight(G.W): 470g
Scale Level: 1024 Steps Per RGB
Application: RF Remote
Signal Transmission: Radio Waves
Type: Button
Certification: CE
Universal: Universal
Transmission Distance: <50m
Material: Plastic
Battery Type: Button Battery
Voltage: DC5V-24V

Product Description

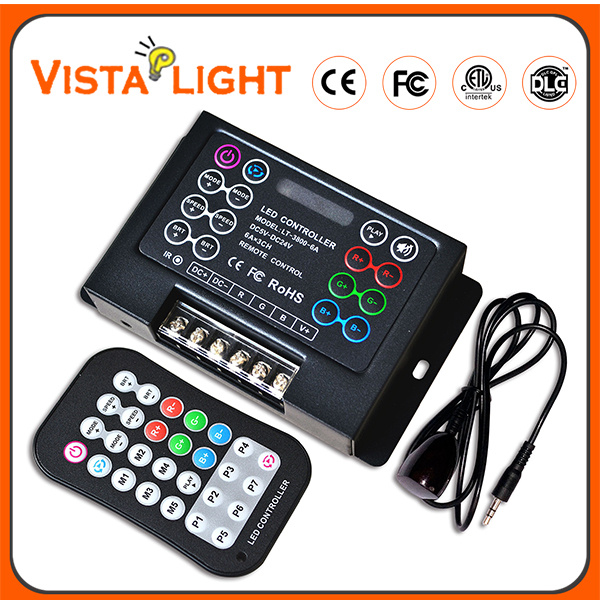

Universal plastic RF Remote control LED RGB Controller

LT-3800-6A is the multi-function RGB controller with DIY and powerful combination ability for changing RGB colors of the 4-pin 3-channels (Common anode) LED lights. The 12 modes can be switched t0 3 types: skipping, smooth and strobe. Press function keys and IR wireless remote for the controller, LED lights will be controlled by the keys and remote. lt's easier and more convenient. For 2013 upgraded version, the performance and functions have been optimized, be more humanization. And the new concept of programmable function also incorporated. Users can DIY the new changing effect for only 10 seconds. lt's so easy!This controller is wonderful and valuable.

Technical Specs:

LED RGB Controller LT-3800-6A
Input voltage  DC5V~DC24V
  Max load current  6A× 3CH  max 18A
  Max load power  90W /216W/ 432W(5V/12V/24V)

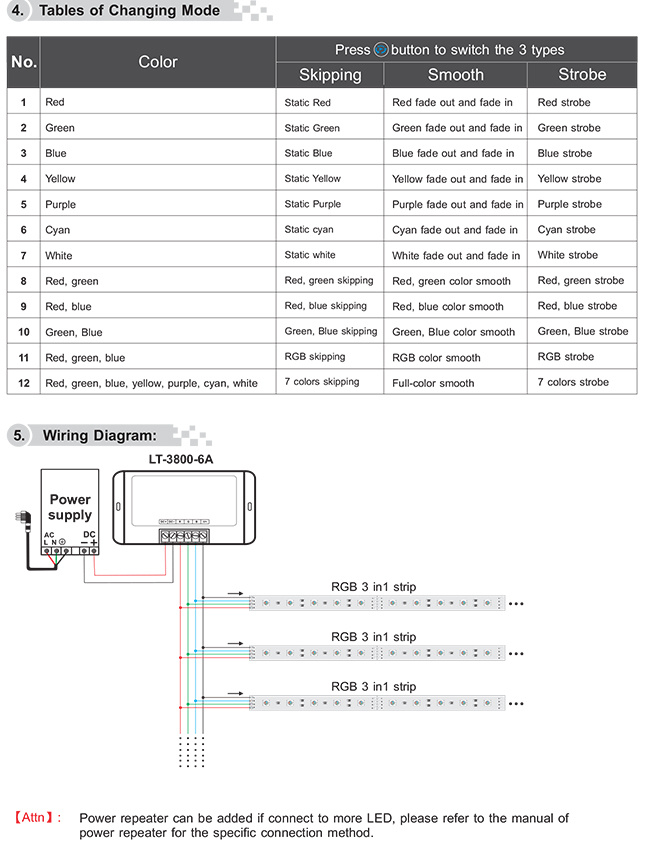

  Changing mode  12 mode,3 Types
  Scale level  1024 steps per RGB
  working temperature  -30º C~65º C

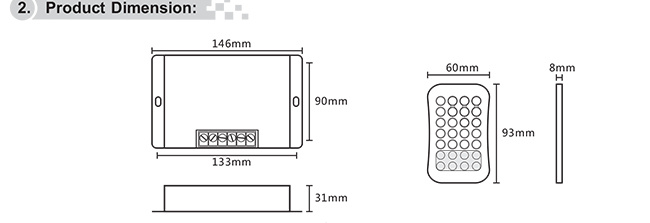

  Dimension  L146× W90× H31mm
Package sizeL160× W130× H45mm
  RF remote distance  30M
  Weight (G. W)  470g


Product Details

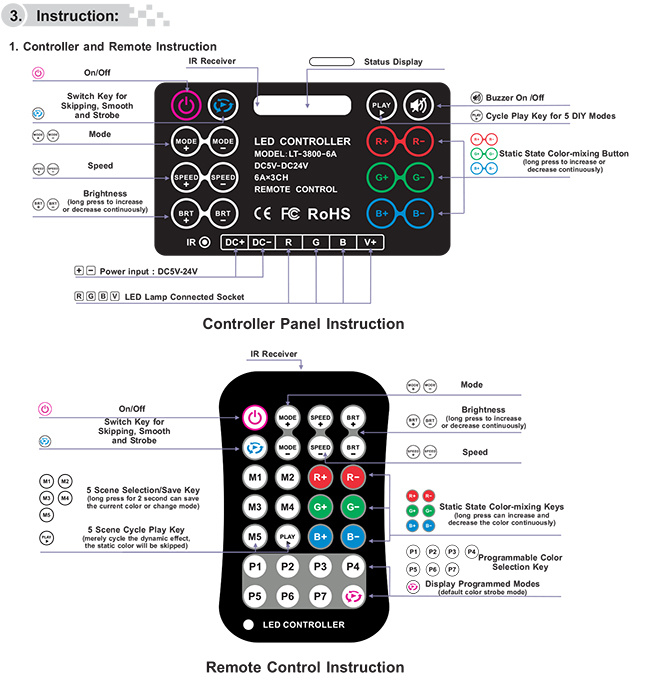

Other Functions
      SPEED+/- : Long press SPEED + to restore the defaults for the all modes' speed, long press SPEED- to restore the defaults for the current modes' speed
   Program selection button
   1.Short press Pl-P7, bring up the stored static color (RGB value, overall brightness value), at the same lime enter into RGB static mode you can further adjust color real-time storage
   2.Short Press the keys Pl-P7 in order, can view 8 color of change mode
   3.Press the O button, according to the color values of Pl ~ P7 playing changing effect The default run jump mode, press the SWITCH button to change the three types of changing modes, the default speed according to the most appropriate observation, the default maximum brightness
   4.After programmed the change effect, you can change speed and brightness fatherly, and save as DIY change mode
    5.At least 2 color when editor changes the effect, Max 7 color if the editor changes the effect of color number less than 7 colors, stored last several color as black if you need to program the fade and change effect, for example, red color fade & change add green color fade & change, the first color must be in black, so the order for the seven colors is black, red, black, green, black, black, black
   6.Long press R-, G-, B-, all RGB values will be O
   7. P1 ~ P7 key without programming can store the color you like, easy to bring up the display

Product Attention
1. The product shall be installed and serviced by a qualified person.
2. This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please ensure    it is mounted in a water proof.
3. Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
4. Please check if the output voltage of any LED power supplies used comply with the working voltage of    the product.
5. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the        current. Please also ensure that the.
6. Ensure all wire connections and polarities are correct before applying power to avoid any damages to    the LED lights.
7. If a fault occurs please return the product to your supplier. Do not attempt to fix this product by         yourself.

Product Warranty Agreement

1. We provide lifelong technical assistance with this product:
(1) A 5-year warranty is given from the date of purchase. The warranty is for free repair or replacement     and covers manufacturing faults only.
(2) For faults beyond the 5-year warranty we reserve the right to charge for time and parts.

2. Warranty exclusions below:
(1) Any man-made damages caused from improper operation, or connecting to excess voltage and           overloading.
(2) The product appears to have excessive physical damage.
(3) Damage due to natural disasters and force majeure.
(4) Warranty label, fragile label and unique barcode label have been damaged
(5) The product has been replaced by a brand new product.

3. Repair or replacement as provided under this warranty is the exclusive remedy to the customer. Ltech shall not be liable for any incidental  or consequential damages for breach of any stipulation in this warranty.

4. Any amendment or adjustment to this warranty must be approved in writing by Ltech only.
