Universal Tension or Compression Load Cell

Name: Universal Tension or Compression Load Cell
Brand: all-electronics-online.com
SKU: 809963145
Availability: InStock
Rating: 4.3 (32 reviews)

Price:	US $ 50-450/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BND-CFBLY
MOQ:	1 Unit
Warranty:	1 Year
OEM Service:	Avaible
Paid Samples:	Avaible
Material:	Alloy Steel
Pattern:	Pancake Type Universal Tension or Compression Load

Product Description

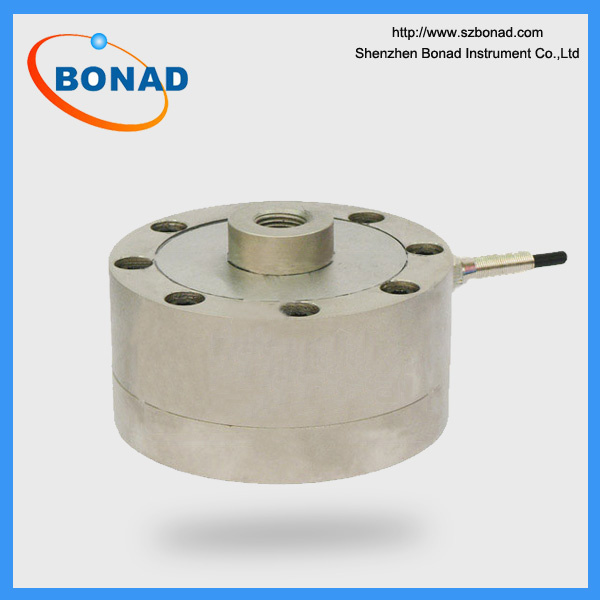

Universal Tension or Compression Load Cell

Measuring Range:
200-700kg 2-5t 10-20t 30t 40-60t 80-100t
Parameters:

Parameters	Unit	Technical Index	Parameters	Unit	Technical Index
Sensitivity	mV/V	2.0±0.05	temperature sensitivity coefficient	≤%F·S/10ºC	±0.03
Nonlinear	≤%F·S	±0.03	Operating Temperature Range	ºC	-20ºC~+80ºC
Lag	≤%F·S	±0.03	Input Resistance	Ω	750±20Ω
Repeatability	≤%F·S	±0.03	Output Resistance	Ω	700±5Ω
Motility changes	≤%F·S/30min	±0.03	Safety overload	≤%F·S	150% F·S
Zero output	≤%F·S	±1	Insulation Resistance	MΩ	≥5000MΩ(50VDC)
Zero temperature coefficient	≤%F·S/10ºC	±0.03	Recommended excitation voltage	V	10V-15V

Packaging & Delivery
Packaging: Carton Box
Delivery:Shipped in 3~15 days after payment
