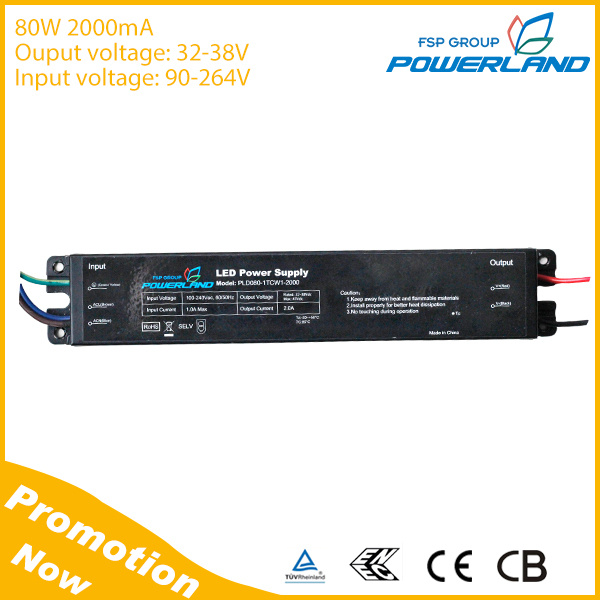

Universal Voltage Input 80W 2000mA LED Driver with Ovp Otp Ocp SCP

Name: Universal Voltage Input 80W 2000mA LED Driver with Ovp Otp Ocp SCP
Brand: all-electronics-online.com
SKU: 802930935
Availability: InStock
Rating: 4.4 (131 reviews)

Price:	US $ 7.75-9/Piece
Min Order:	300/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD080-1TCW1-2000
Usage:	Digital Products
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	Conventional Step-down Transformer
Power Supply Voltage:	90VAC-264VAC
Brand:	Fsp-Powerland

Product Description

CE TUV Approval 80W 2000mA Constant Current Led Driver
90-264Vac Input

Powerlander's Universal AC series
PLD080-1SCW1-2000 offers 80W constant current drivers with 90~264Vac input.
The output current of this series is up to 2000mA, and designed for indoor applications.

Applications
Indoor LED lights

Downlights, spotlights, LED panels

Features
50,000 hours lifetime at 55ºC Tcase

3 years warranty at 55ºC Tcase

Constant current output

Safety according to EN61347-1

EMC according to EN55015

Lightning, OVP, SCP, & Open Circuit Protection Electrical Specification

Electrical Specifications

Model	PLD080-1SCW1-2000
Output Voltage	32~38V
Output Current	2.0A
Output Power	76W
Max. Current Ripple	200mA
Voltage Range	90~264Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	0.92A
Max. Input Power	98W
Min. Power Factor	>0.95 @115Vac & 80~100% load, >0.90 @277Vac &80~100% load
Efficiency	86%
Max. Open Circuit Voltage	43V
THD	<20% @ 230Vac & 90~100% load
Protections	OVP, OCP, SCP, OTP
Environmental Protection	IP20
Working Temperature	-20~+50ºC
Max. Case Temperature	90ºC
Surge Protection	2kV
Agency Approbations	EN61347-1
Electromagnetic Compliance	EN55015
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	210x43x30 mm
Mounting Length	232mm
Overall Length	240 mm
Weight	0.40 kg
Life Time	50,000 hours @ full load, 55ºC Tcase

* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

Performance Characteristics (Test wtih PLD080-1TCW1-2000)
