UPS-True on-Line Double Conversion UPS T1-3KVA

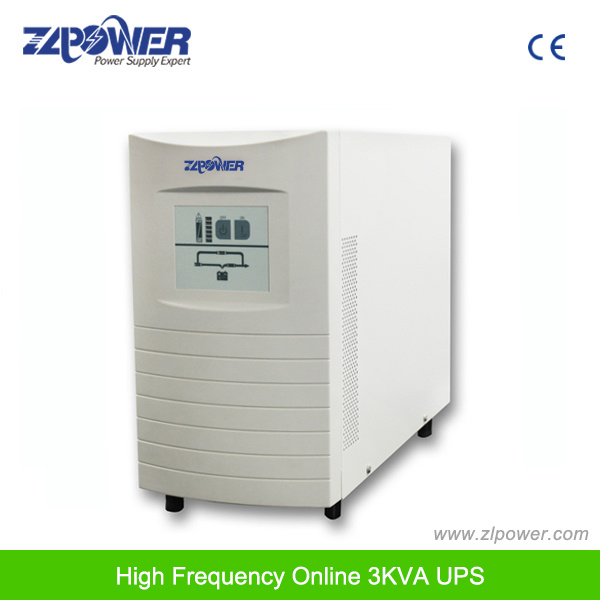

Name: UPS-True on-Line Double Conversion UPS T1-3KVA
Brand: all-electronics-online.com
SKU: 677521945
Availability: InStock
Rating: 4.8 (127 reviews)

Price:	US $ 100-300/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	T1-3KVA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power:	1kVA0.7kw, 2kVA1, 4kw, 3kVA2.1kw
Nominal Voltage:	110V/115V/120V or 220V/230V/240V
Frequency:	50Hz, 60Hz
Output Connection:	Ec3204, IEC3206, IEC320*3&Terminal Block
Transfer Time:	0 Min
Indicator:	LED Display
Wave Form:	Pure Sine Wave
Communications:	Dp-9 Port & Intelligent Slot
Bypass:	Automatica Transfer
Operating Temperature:	0~40centi-Degree
Phase:	Single Phase
Type:	On-line
Protection:	Over Current, Over Voltage, Short Circuit

Product Description

This single phase high frequency online UPS T1K, T2K, T3K is double conversion uninterruptible power supply, pure sine wave output wave form. It is divided into two models, one is standard online UPS with inside batteries, the other is long backup time online UPS without batteries.

Application:
Servers, computer data center, critical network devices, sensitive electronic equipment, telecom, smaller lans, workstation, IPC, small medical equipment, key devices, communication system, some devices need electric power environment.

Main Features:
1. LED Indicators display Detailed Real-Time UPS Status and UPS fault.
2. Advanced MCU microprocessor control technology, ensure long life reliability. 3. Wide input voltage range, Zero transfer time.
4. Excellent Protection against over voltage, over load, over current, over charge and so on.
5. Input L and N lines reverse wiring detection, Auto start when AC back.
6. DC start function, Input PFC revise function.
7. Humanization bypass output can be adjustable.
9. Smart RS232 communication with monitoring software.
10. Intelligent slot available for AS-400 Dry contact and SNMP card Remote control.
11. Strong antijamming capability.
12. Available to work with generators.
13. Lightning, surge, short circuit, Network/fax/modem surge protection.

UPS-true on-line double conversion UPS T1-3KVA		T1K	T1KL	T2K	T2KL	T3K	T3KL
Capacity		1000VA/700W		2000VA/1400W		3000VA/2100W
Input	Voltage	(115~300)VAC
	Frequency	46~54Hz/56~64Hz
Output	Voltage	220/230/240(1± 1%)VAC
	Frequency	50/60Hz(Adjustable) 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz(1± 0.2%) 60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz(1± 0.2%)
Output Wave Form		Sine Wave
Back-up Time	Full Load	≥ 5′	Depends on the capacity of the external battery bank	≥ 9′	Depends on the capacity of the external battery bank	≥ 5′	Depends on the capacity of the external battery bank
	Half Load	≥ 14′		≥ 21′		≥ 15′
Battery Nominal DC Voltage		36VDC		96VDC
Transfer Time		0ms
Overload Capacity		110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms
Communications		RS-232+Intelligent Slot
Environment	Temperature	0C~40C
	Humidity	15%~90%
Dimensions (WDH) mm		145400220		192460340
Net Weight (Kg)		14	7	34	13.5	34.5	14

About ZLPOWER

Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.

As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.

Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.

In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.

Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.

ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
