Vinyl Insulated Hook Terminal Block

Prod Model:	HV
Insulated Material:	Vinyl / PVC
Terminal Material:	Copper
Max Electrical Rating:	600V
Max Temperature:	75degree
Material:	Copper
Application:	Conduct Electricity
Type:	Terminal Block
Shape:	Terminal Block
Character:	Terminal Block
Brand:	Deson

Product Description

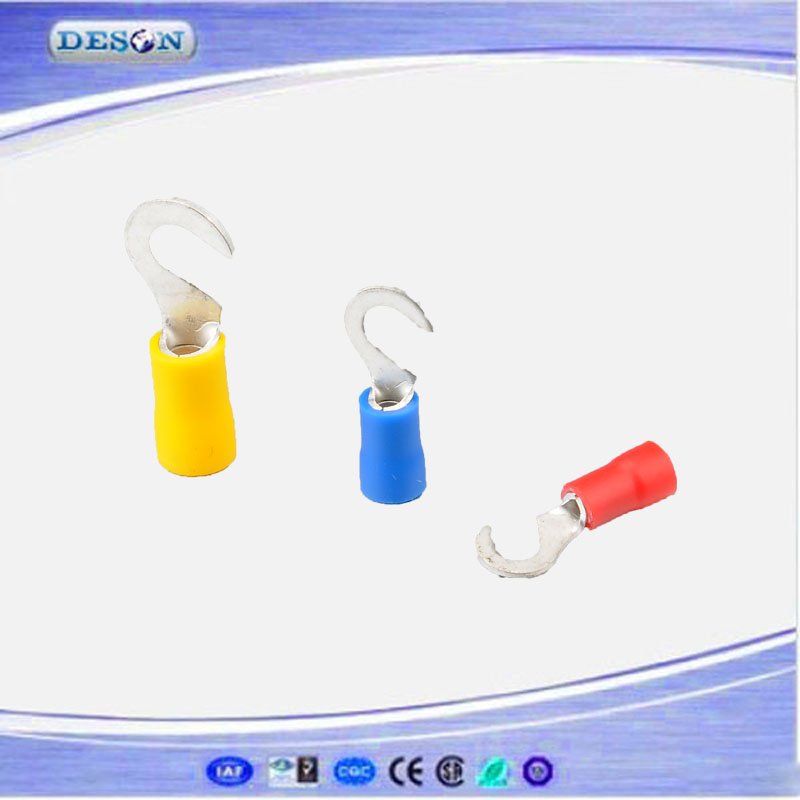

Vinyl Insulated Hook Terminal Block


1) Material: High conductivity copper. PVC , Nylon.
2) ROHS.SGS.
3) Most economical insulated splice available.    Industry stanRV series ring battery terminal with CE ROHS 16-14AWGdard color-coding indicates wire range. battery terminal
4) Vinyl insulation is securely fastened over a butted seam barrel. Insulation has flared entry for easier wire insertion.
5) We manufacture, supply and export high quality copper insulated terminal  that meets the requirements of machine industries.

6) High tensile strength, excellent performance and reliability. Available in various sizes.

7) This also comply with electrical specification are in accordance with the general requirement's.



ITEM NO	US system bolts	Mouth diameter of spiral	Dimension(mm)					color	direction
		d2(mm)	w	L	F	H	D
HV1.25-3.5	#6	3.7	8.0	21.0	7.0	10.0	4.2	Red	0.5-1.5mm2 (US wire guage22-16) Imax=19A thickness:0.7mm
HV1.25-4	#8	4.3	8.0	21.0	7.0
HV1.25-5	#10	5.3	8.0	21.0	7.0
HV1.25-6	1/4	6.5	11.6	27.0	11.2
HV2-3.5	#6	3.7	8.5	22.0	7.75	10.0	4.7	Blue	1.5-2.5mm2 (US wire guage16-14) Imax=27A thickness:0.8mm
HV2-4	#8	4.3	8.5	22.0	7.75
HV2-5	#10	5.3	9.5	22.0	7.5
HV2-6	1/4	6.5	12.0	27.0	11.0
HV5.5-3.5	#6	3.7	7.2	21.4	5.9	13.0	6.5	yellow	4-6mm2 (US wire guage12-10) Imax=48A thickness:1.0mm
HV5.5-4	#8	4.3	9.5	25.5	8.85
HV5.5-5	#10	5.3	9.5	25.5	8.85
HV5.5-6	1/4	6.5	12.0	31.5	10.5
