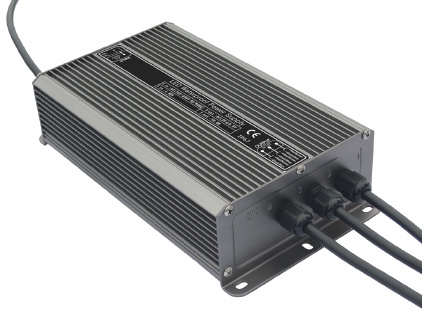

Waterproof IP67 200W LED Switching Power Supply

Name: Waterproof IP67 200W LED Switching Power Supply
Brand: all-electronics-online.com
SKU: 732649295
Availability: InStock
Rating: 4.7 (28 reviews)

Price:	US $ 28-32/Piece
Trade Terms:	FOB,EXW
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Waterproof transformer-200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Waterproof:	IP67 or Non-Waterproof
Power:	200W ( 30W/60W/100W/150W )
Voltage:	DC12V/24V
Pf:	0.9
Efficiency:	0.8-0.85
Lifespan:	50000h
Certificate:	CE&RoHS
Warranty:	2 Years
Meaterial:	Aluminum
Input Voltage:	AC85-265V
Usage:	Light
Driving Method:	LED Regulator Voltage
Circuit Structure:	Electronic Step-down Transformer
Output Type:	DC12/24V
Pack Sealing Size:	1999842mm
Brand:	Sunshine

Product Description

Waterproof IP67 200W led switching power supply

IP67 waterproof led driver, LED Adapter, 30w Waterproof led power supply, DC12V led power supply, IP67 led adapter.

Feature:

IP67 design for indoor or outdoor installations

Protections: Short circuit / Overload/Over temperature

Cooling by free air convection

100% full load burn-in test

Suitable for LED lighting

Products through CE, RoHS Certification

2 years warranty

MODEL		5V 30W	12V 30W	24V 30W
OUTPUT	DC VOLTAGE	5V	12V	24V
	RATED CURRENT	6A	2.5A	1.25A
	CURRENTRANGE	0~6A	0~2.5A	0~1.25A
	RATED POWER	30W	30W	30W
	NOTE.2 RIPPLE & NOISE (max.)	150mV	150mV	150mV
	NOTE.3 VOLTAGE TOLERANCE	±4%	±4%	±2%
	SETUP, RISE TIME	80ms/220VAC
	HOLD UP TIME (Typ.)	60ms/220VAC
INPUT	VOLTAGERANGE	170~ 250VAC
	FREQUENCYRANGE	50~ 60Hz
	POWER FACTOR (Typ.)	PF>0.6/220VAC
	EFFICIENCY (Typ.)	80%	81%	83%
	AC CURRENT (Typ.)	0.28A/220VAC
	INRUSH CURRENT (Typ.)	COLDSTART40A/220VAC
PROTECTION	Short circuit	Protection type : recovers automatically after fault condition is removed
	Overload	overload protected @ 145-160% above peak rating
	Over temperature	Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT	WORKING TEMP.	-30 ~ +50(Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 99% RH non-condensing(Waterproof)
	STORAGETEMP.,HUMIDITY	-40 ~ +80, 10 ~ 99% RH
SAFETY & EMC	SAFETY STANDARDS	CE Mark(LVD) , IP67
	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC I/P-GND:1.5KVAC
	EMC TestStandards	EN55015:2006; EN61547:1995+A1:2000; EN61000-3-2:2006; EN61000-3-3:1995+A2:2005; EN61347-1:2001; EN61347-2-13:2006
NOTE	1. All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 10uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation.

SUNSHINE LED LIMITED, which is a new high-tech enterprise engaged in research, manufacturing and marketing of LED light. The main products involve LED Strip, SMD5050 LED Strip, RGBW LED Strip, SMD3014, SMD3528, SMD5630, SMD2216 LED Strip, and RGB or RGBW LED Downlight and LED Controller and LED accessories etc, all of which are widely used for urban lighting decoration, indoor home decoration, hotel decoration, stage lighting, signal lamp, road lighting and other areas.

Sunshine covers more than 3500 square meters with completed equipments, 75 workers uses high level Auto-production Machines for SMT assembly and soldering. Our strip series' monthly capacity is above 50, 000 meters and the RGB or RGBW LED Downlight monthly capacity is above 5, 000PCS. All the products must have 100% life testing before shipment. Because of efficient production & quality control, Sunshine has already got good honor & accreditation from the customers. Our products are sold to America, Denmark, Australia, Japan, France and all districts of our country.

We have passed ISO9001, CE and SGS certifications. Through persevering efforts, we have become one of the largest suppliers in LED light field in China and also won the trust of our customers because of excellent quality and prompt delivery.

Choosing Sunshine means choosing satisfaction and choosing benefit! We firmly believe "Technology changes the world and the world will be more brilliant because of Sunshine
