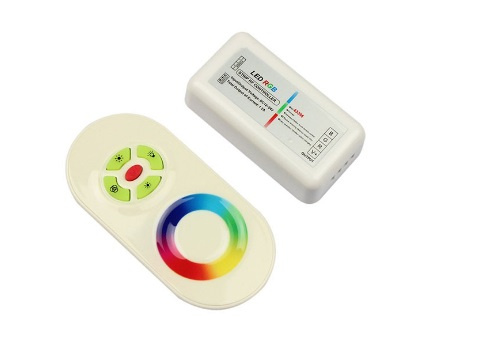

Wireless RF 12A RGB Touch Color Ring Controller with

Power:	144W
Color:	RGB
Lead Time:	3 Working Days
Warranty:	3years
Application:	Building
Signal Transmission:	RF Remote Control
Certification:	RoHS
Universal:	Universal
Transmission Distance:	<50m
Material:	Plastic
Battery Type:	AAA Battery
Type:	Touch Wheel
Voltage:	12V-24V

Product Description


RF Remote 12-24VDC 4A*3CH
This FR touch remote RGB controller adopted the advanced PWM touch technology, Mainly used to control all kinds of common anode constant volage led products, such as LED source, flexible strip, wall washer, glass curtain wall light and so on.
Product Description
This FR touch remote RGB controller adopted the advanced PWM touch technology, Mainly used to control all kinds of common anode constant volage led products, such as LED source, flexible strip, wall washer, glass curtain wall light and so on. This controller is with indicating light and power off memory function. Easy connection and simple to used is the representative advantages of this controller.User can choose different changing mode, adjust the speed and brightness,turn on/off by the RF remote control according to their preference .

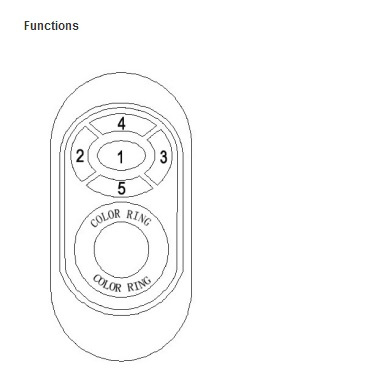

Key 1:ON/OFF
Key 2:light changing mode(Total 15 modes)
Key 3:color light/white light switching mode
Key 4:brightness/speed+
Key 5:brightness/speed-
Dynamic modes:

NO.	Mode	remark
1	Six color fade	Key 4 and key 5 can be adjust the changing speed of the dynamic mode
2	three color jump
3	Seven color fade
4	Three color fade
5	Seven color fade
6	Red strobe-flash
7	blue strobe-flash
8	Purple strobe-flash
9	Green strobe-flash
10	Yellow strobe-flash
11	Cyan strobe-flash
12	White strobe-flash
13	Red-blue cross jump
14	Blue-gree cross jump
15	Red-gree cross jump

• Specifications                                                                             Working temperature:-20~60ºC
• Supply voltage:DC12V~24V
  Output:3 Channel
  Connection mode:Common anode
  Controller size:L85×W45×H23mm
  Net weight:88g
  Static power consumption:<1W
  Output current:<4A/CH
  Output power:12V:<144W;24V:<144W
